FRONT DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

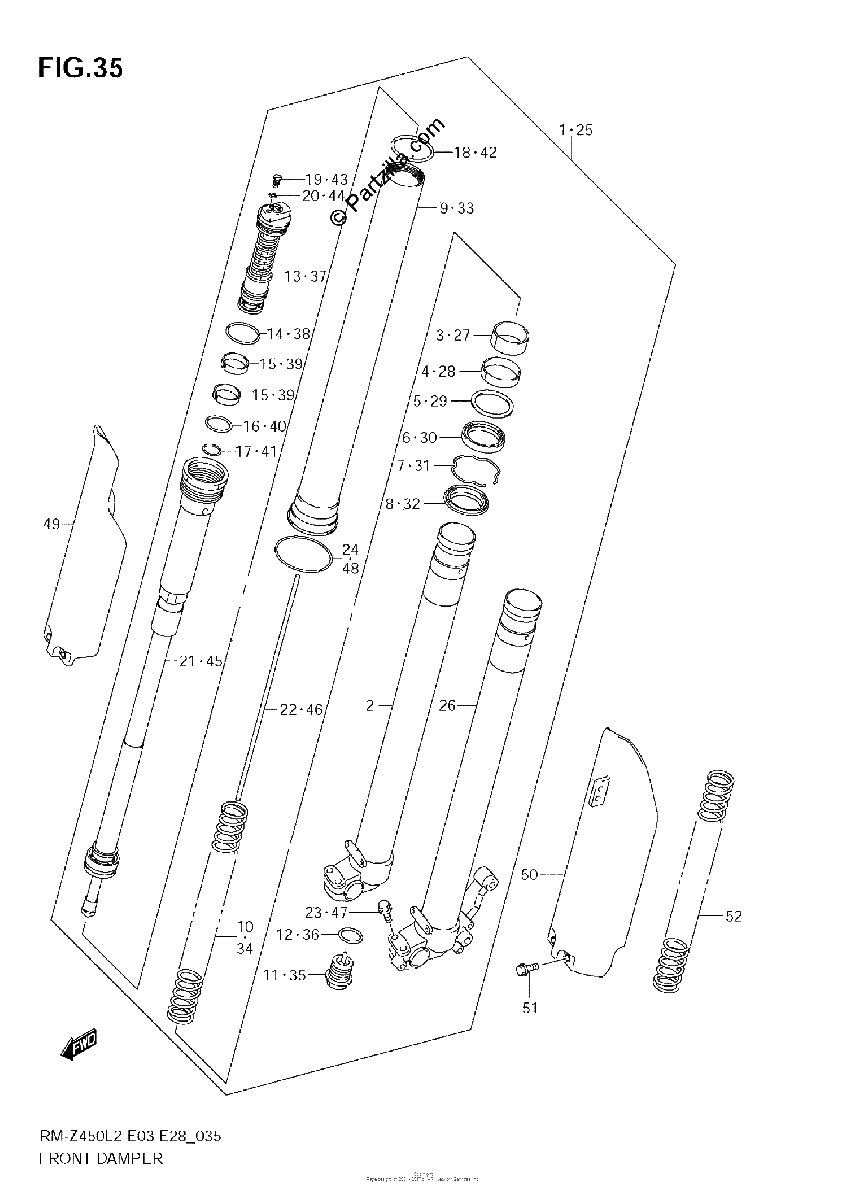

Diagrama de FRONT DAMPER

Repuestos

#1
51103-28H10
DAMPER ASSY, FRONT FORK RH | L0/L1
No Disponible
1
#2
51110-28H10
TUBE, INNER RH | L0/L1
$615.23¢307 613
1
#3
51121-28H10
BUSH, GUIDE | L0/L1
$23.44¢11 719
1
#4
51167-28H10
BUSH, GUIDE | L0/L1
$38.06¢19 031
1
#5
51158-36F00
..SPACER, SEAL
$12.66¢6 331
1
#6
51153-37F80
..OIL SEAL
$35.16¢17 581
1
#7
51156-27C40
.RING, OIL SEAL STOPPER
$6.38¢3 188
1
#8
51173-37F80
..SEAL, DUST
$31.70¢15 850
1
#9
51130-28H01
TUBE, OUTER
No Disponible
1
#10
51171-28H30
SPRING, FRONT (K=0.48) | OPT
No Disponible
1
#11
51170-37FC0
BOLT, CENTER
$287.75¢143 875
1
#12
51177-36E20
..O RING
$5.02¢2 512
1
#13
51351-28H10
BOLT, FORK | L0/L1
No Disponible
1
#14
51117-37F80
.O RING
$9.38¢4 688
1
#15
51123-28H10
BUSH, FORK BOLT SLIDE | L0/L1
$24.31¢12 156
1
#16
51174-36E40
..O RING
$5.21¢2 606
1
#17
51175-37F80
.O RING
$7.90¢3 950
1
#18
51118-37F80
..O RING
$9.38¢4 688
1
#19
51357-36F20
..BOLT, PLUG
$18.88¢9 438
1
#20
51358-28E30
...O RING
$5.79¢2 894
1
#21
51190-28H10
ROD, DAMPER | L0/L1
No Disponible
1
#22
51191-10H10
ROD, PUSH
$31.19¢15 594
1
#23
51328-37F80
.BOLT
$8.65¢4 325
1
#24
51211-37FC0
RING STOPPER
$13.75¢6 875
1
#25
51104-28H10
DAMPER ASSY, FRONT FORK LH | L0/L1
No Disponible
1
#26
51120-28H10
TUBE, INNER LH | L0/L1
No Disponible
1
#27
51121-28H10
BUSH, GUIDE | L0/L1
$23.44¢11 719
1
#28
51167-28H10
BUSH, GUIDE | L0/L1
$38.06¢19 031
1
#29
51158-36F00
..SPACER, SEAL
$12.66¢6 331
1
#30
51153-37F80
..OIL SEAL
$35.16¢17 581
1
#31
51156-27C40
.RING, OIL SEAL STOPPER
$6.38¢3 188
1
#32
51173-37F80
..SEAL, DUST
$31.70¢15 850
1
#33
51130-28H01
TUBE, OUTER
No Disponible
1
#34
51171-28H30
SPRING, FRONT (K=0.48) | OPT
No Disponible
1
#35
51170-37FC0
BOLT, CENTER
$287.75¢143 875
1
#36
51177-36E20
..O RING
$5.02¢2 512
1
#37
51351-28H10
BOLT, FORK | L0/L1
No Disponible
1
#38
51117-37F80
.O RING
$9.38¢4 688
1
#39
51123-28H10
BUSH, FORK BOLT SLIDE | L0/L1
$24.31¢12 156
1
#40
51174-36E40
..O RING
$5.21¢2 606
1
#41
51175-37F80
.O RING
$7.90¢3 950
1
#42
51118-37F80
..O RING
$9.38¢4 688
1
#43
51357-36F20
..BOLT, PLUG
$18.88¢9 438
1
#44
51358-28E30
...O RING
$5.79¢2 894
1
#45
51190-28H10
ROD, DAMPER | L0/L1
No Disponible
1
#46
51191-10H10
ROD, PUSH
$31.19¢15 594
1
#47
51328-37F80
.BOLT
$8.65¢4 325
1
#48
51211-37FC0
RING STOPPER
$13.75¢6 875
1
#49
51501-28H21
PROTECTOR, RH
No Disponible
1
#50
51511-28H21
PROTECTOR,FRONT
$87.52¢43 762
1
#51
09111-06098
BOLT (6X10)
$3.98¢1 988
1
#52
51171-28H40
SPRING, FRONT (K=0.50) | L0/L1
No Disponible
1
#52
51171-10H30
SPRING, FRONT (K=0.46) | OPT
No Disponible
1
