TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

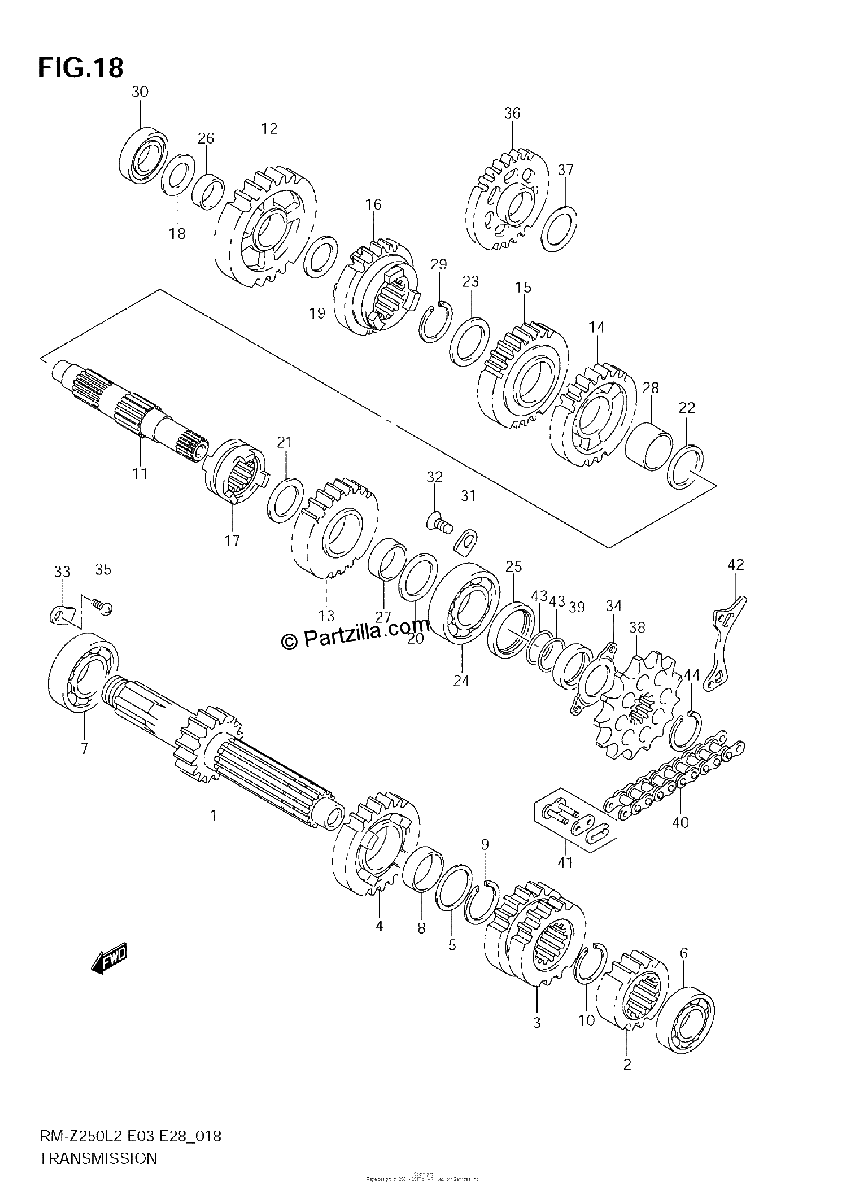

Diagrama de TRANSMISSION

Repuestos

#1
24120-10H01
SHAFT, COUNTER, NT:13
No Disponible
1
#2
24221-10H01
GEAR, 2ND DRIVE, NT:17
$87.22¢43 613
1
#3
24231-10H10
GEAR, 3RD 4TH DRIVE | NT:17/21
$195.79¢97 894
1
#4
24251-10H00
GEAR, 5TH DRIVE, NT:22
$167.04¢83 519
1
#5
09181-24009
WASHER (24X29X1.0)
$5.59¢2 794
1
#6
09262-17040
BEARING (17X40X9.5) | LH
$24.94¢12 469
1
#7
09262-22018
BEARING (22X50X14) | RH
$33.60¢16 800
1
#8
09300-24004
BUSH (24X27X9.0)
No Disponible
1
#9
09380-24007
CIRCLIP
$4.97¢2 488
1
#10
09380-24007
CIRCLIP
$4.97¢2 488
1
#11
24131-10H01
SHAFT, DRIVE
No Disponible
1
#12
24311-10H01
GEAR, 1ST DRIVEN, NT:28
$177.54¢88 769
1
#13
24321-10H01
GEAR, 2ND DRIVEN, NT:30
$177.54¢88 769
1
#14
24331-10H00
GEAR, 3RD DRIVEN, NT:25
$177.54¢88 769
1
#15
24341-10H00
GEAR, 4TH DRIVEN, NT:26
$177.54¢88 769
1
#16
24351-10H00
GEAR, 5TH DRIVEN, NT:24
$184.00¢92 000
1
#17
24412-10H01
DOG, SLIDING
$127.38¢63 688
1
#18
09181-17195
SHIM (17X28X1)
$3.66¢1 831
1
#19
09181-20167
SHIM (20X28X1)
$3.44¢1 719
1
#20
24322-49H00
WASHER, 2ND DRIVEN GEAR LH
$8.73¢4 363
1
#21
09181-22167
SHIM (22X30X1)
$3.65¢1 825
1
#22
09181-24008
SHIM (24X30X1)
$5.38¢2 688
1
#23
09181-24008
SHIM (24X30X1)
$5.38¢2 688
1
#24
09262-20147
BEARING (20X52X15) | LH
$110.63¢55 313
1
#25
09289-28012
OIL SEAL (28X38X7.5)
$11.39¢5 694
1
#26
09300-20037
BUSH (20X24X10)
$23.50¢11 750
1
#27
09300-22020
BUSH (22X25X12)
$15.22¢7 613
1
#28
09300-24003
BUSH (24X27X18)
$35.29¢17 644
1
#29
09380-24007
CIRCLIP
$4.97¢2 488
1
#30
09262-17023
BEARING (17X40X12) | RH
$19.69¢9 844
1
#31
24741-20A00
RETAINER, BEARING
$3.65¢1 825
1
#32
09126-06011
SCREW (6X12)
$2.63¢1 313
1
#33
24741-21A00
RETAINER, BEARING
$3.65¢1 825
1
#34
24751-49H00
RETAINER, DRIVE SHAFT OIL SEA
$20.66¢10 331
1
#35
09125-06122
SCREW (6X12)
$2.88¢1 438
1
#36
26260-49H00
GEAR, KICK STARTER IDLE
$152.41¢76 206
1
#37
26264-28H00
WASHER, KICK IDLE
$9.56¢4 781
1
#38
27511-14121
SPROCKET, ENGINE, NT:13
$46.19¢23 094
1
#39
27531-43D00
SPACER, ENGINE SPROCKET
$31.01¢15 506
1
#40
27600-43D02-114
CHAIN, DRIVE (DID520DMA4 SDH)
$190.19¢95 094
1
#41
27620-43D02
.JOINT SET, CHAIN
$12.91¢6 456
1
#42
27641-10H01
PLATE, FRONT CHAIN GUIDE
$15.69¢7 844
1
#43
09280-20006
O RING (D:1.9,ID:19.8)
$2.30¢1 150
1
#44
09380-20007
CIRCLIP
$3.10¢1 550
1
