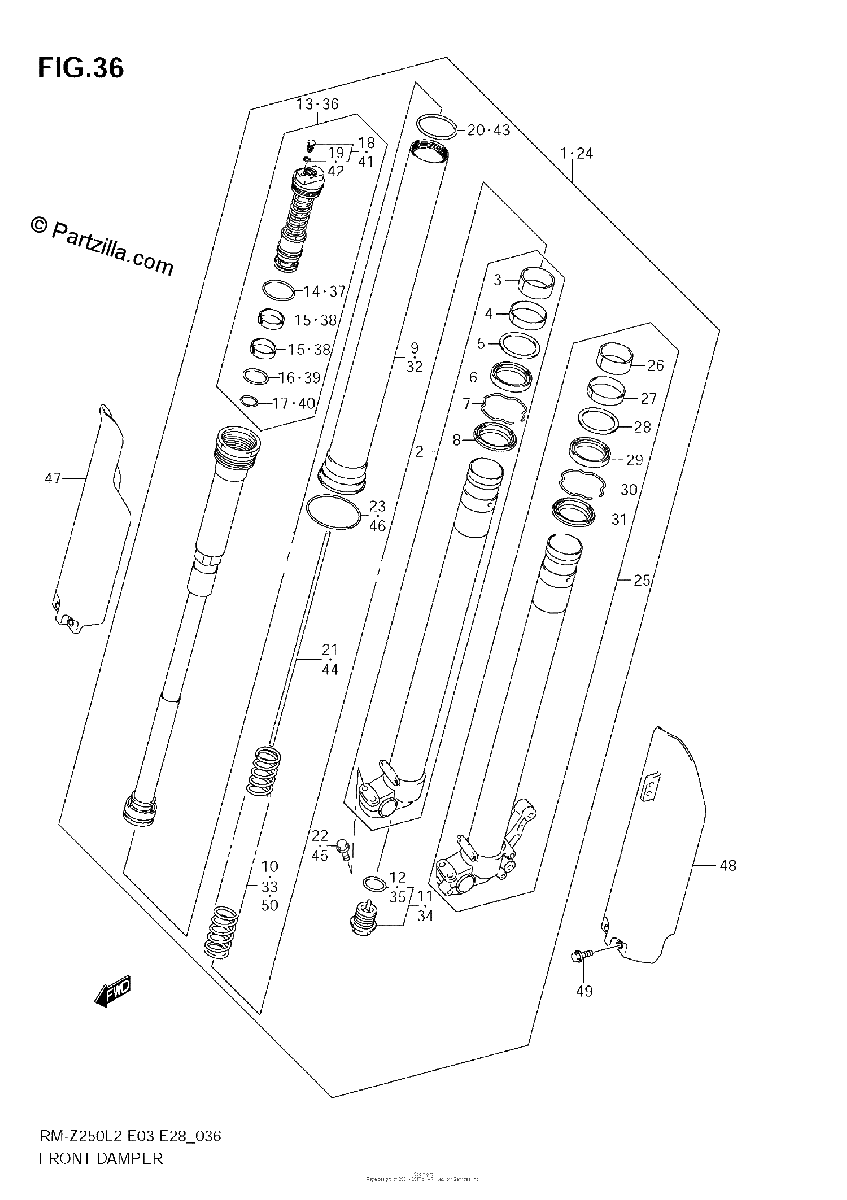

FRONT DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
No Disponible
#2
TUBE, INNER RH | L0/L1
$566.01¢283 004
#3
BUSH, GUIDE | L0/L1
$21.56¢10 781
#4
BUSH, GUIDE | L0/L1
$35.02¢17 509
#5
..SPACER, SEAL
$11.65¢5 825
#6
..OIL SEAL
$32.35¢16 175
#7
.RING, OIL SEAL STOPPER
$5.86¢2 932
#8
..SEAL, DUST
$29.16¢14 582
#9
TUBE, OUTER
No Disponible
#10
SPRING, FRONT (K=0.46) | K8/K9
No Disponible
#11
BOLT, CENTER
$264.73¢132 365
#12
..O RING
$4.62¢2 311
#13
BOLT, FORK
No Disponible
#14
.O RING
$8.63¢4 313
#15
BUSH, FORK BOLT SLIDE | L0/L1
$22.37¢11 184
#16
..O RING
$4.80¢2 398
#17
.O RING
$7.27¢3 634
#18
..BOLT, PLUG
$17.36¢8 683
#19
...O RING
$5.32¢2 662
#20
..O RING
$8.63¢4 313
#21
ROD, PUSH
$28.69¢14 346
#22
.BOLT
$7.96¢3 979
#23
RING STOPPER
$12.65¢6 325
#24
DAMPER ASSY, FRONT FORK LH
No Disponible
#25
TUBE, INNER LH | L0/L1
No Disponible
#26
BUSH, GUIDE | L0/L1
$21.56¢10 781
#27
BUSH, GUIDE | L0/L1
$35.02¢17 509
#28
..SPACER, SEAL
$11.65¢5 825
#29
..OIL SEAL
$32.35¢16 175
#30
.RING, OIL SEAL STOPPER
$5.86¢2 932
#31
..SEAL, DUST
$29.16¢14 582
#32
TUBE, OUTER
No Disponible
#33
SPRING, FRONT (K=0.46) | K8/K9
No Disponible
#34
BOLT, CENTER
$264.73¢132 365
#35
..O RING
$4.62¢2 311
#36
BOLT, FORK
No Disponible
#37
.O RING
$8.63¢4 313
#38
BUSH, FORK BOLT SLIDE | L0/L1
$22.37¢11 184
#39
..O RING
$4.80¢2 398
#40
.O RING
$7.27¢3 634
#41
..BOLT, PLUG
$17.36¢8 683
#42
...O RING
$5.32¢2 662
#43
..O RING
$8.63¢4 313
#44
ROD, PUSH
$28.69¢14 346
#45
.BOLT
$7.96¢3 979
#46
RING STOPPER
$12.65¢6 325
#47
PROTECTOR, RH
No Disponible
#48
PROTECTOR,FRONT
$80.52¢40 262
#49
BOLT (6X10)
$3.66¢1 829
#50
SPRING, FRONT (K=0.49) | OPT
No Disponible
#50
SPRING, FRONT (K=0.45) | OPT
$215.54¢107 772
