CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

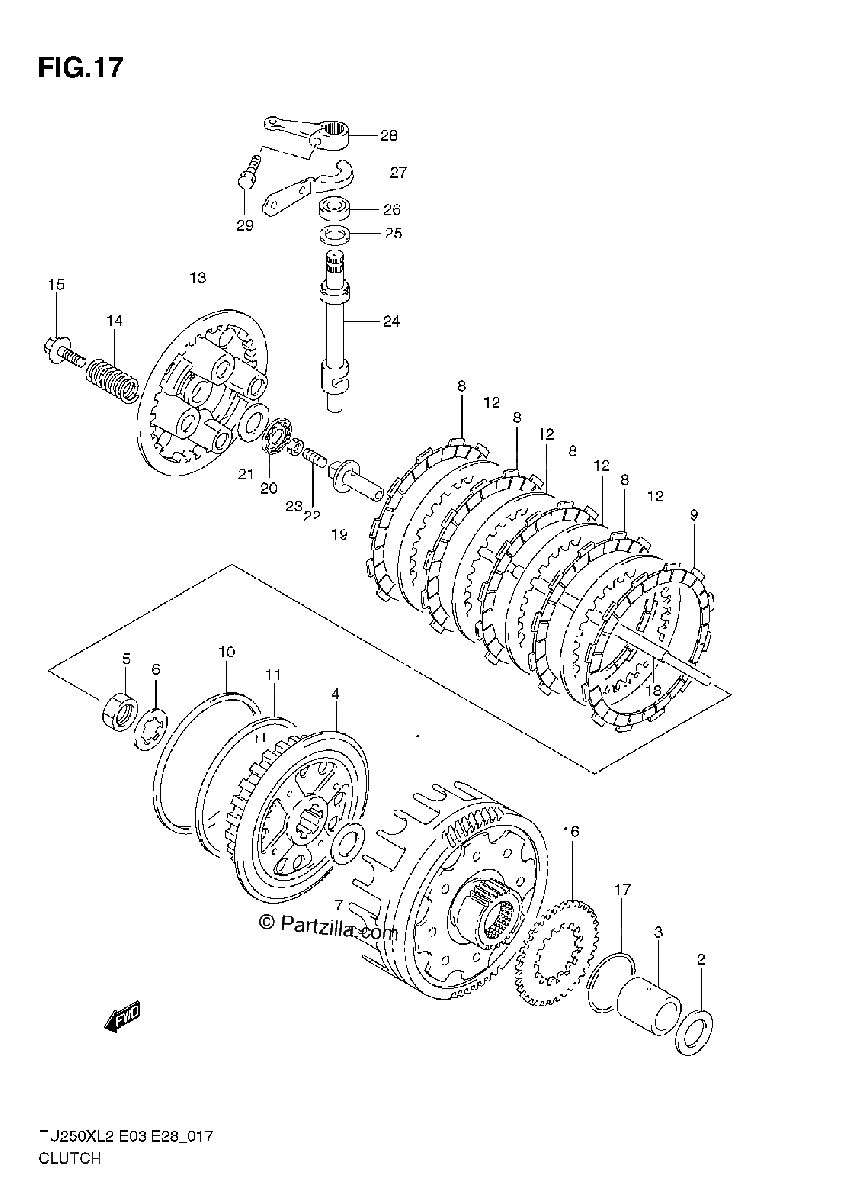

Diagrama de CLUTCH

Repuestos

#1
21200-38201
GEAR ASSY, PRIMARY DRIVEN (NT:16/68)
$378.88¢189 438
1
#2
08211-22363
WASHER
$5.27¢2 637
1
#3
09180-22024
SPACER (22X28X37.5)
No Disponible
1
#4
21411-38201
HUB, CLUTCH SLEEVE
$164.40¢82 200
1
#5
09140-22005
NUT
$5.06¢2 531
1
#6
09167-22010
LOCK WASHER
$4.66¢2 331
1
#7
08211-22363
WASHER
$5.27¢2 637
1
#8
21441-37400
PLATE, DRIVE NO.1 (T:3.0)
$21.61¢10 806
1
#9
21442-37401
PLATE, CLUTCH DRIVE NO.2
$22.26¢11 131
1
#10
21471-37400
SEAT, WAVE WASHER
$11.66¢5 831
1
#11
09164-00004
WASHER
$13.54¢6 769
1
#12
21451-14A00
PLATE, DRIVEN (T:1.6)
$11.35¢5 675
1
#13
21462-27A00
DISC, PRESSURE
$77.85¢38 925
1
#14
21413-13F00
SPRING, CLUTCH
$3.88¢1 938
1
#15
09116-06167
BOLT (6X20)
$2.85¢1 425
1
#16
16321-38210
GEAR, ENGINE OIL PUMP (NT:16/38)
No Disponible
1
#17
09380-50001
CIRCLIP
$1.34¢669
1
#18
23110-38201
ROD, CLUTCH PUSH
$24.31¢12 156
1
#19
23121-38201
PIECE, CLUTCH PUSH
$36.10¢18 050
1
#20
09263-15003
BEARING (15X28X2)
$9.75¢4 875
1
#21
09160-15045
WASHER (15.5X28X1)
$4.58¢2 288
1
#22
09134-06010
.SCREW (6X25)
$3.66¢1 831
1
#23
09140-06023
NUT
$2.70¢1 350
1
#24
23122-38200
CAMSHAFT, CLUTCH RELEASE
No Disponible
1
#25
09160-14054
WASHER (14.5X22X1)
$2.71¢1 356
1
#26
09285-12006
OIL SEAL (12X22X9)
$7.43¢3 713
1
#27
23117-38200
PLATE, CAMSHAFT OIL SEAL
$7.44¢3 719
1
#28
23271-12D10
ARM, CLUTCH RELEASE
No Disponible
1
#29
01500-06207
BOLT
$2.59¢1 294
1
