CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

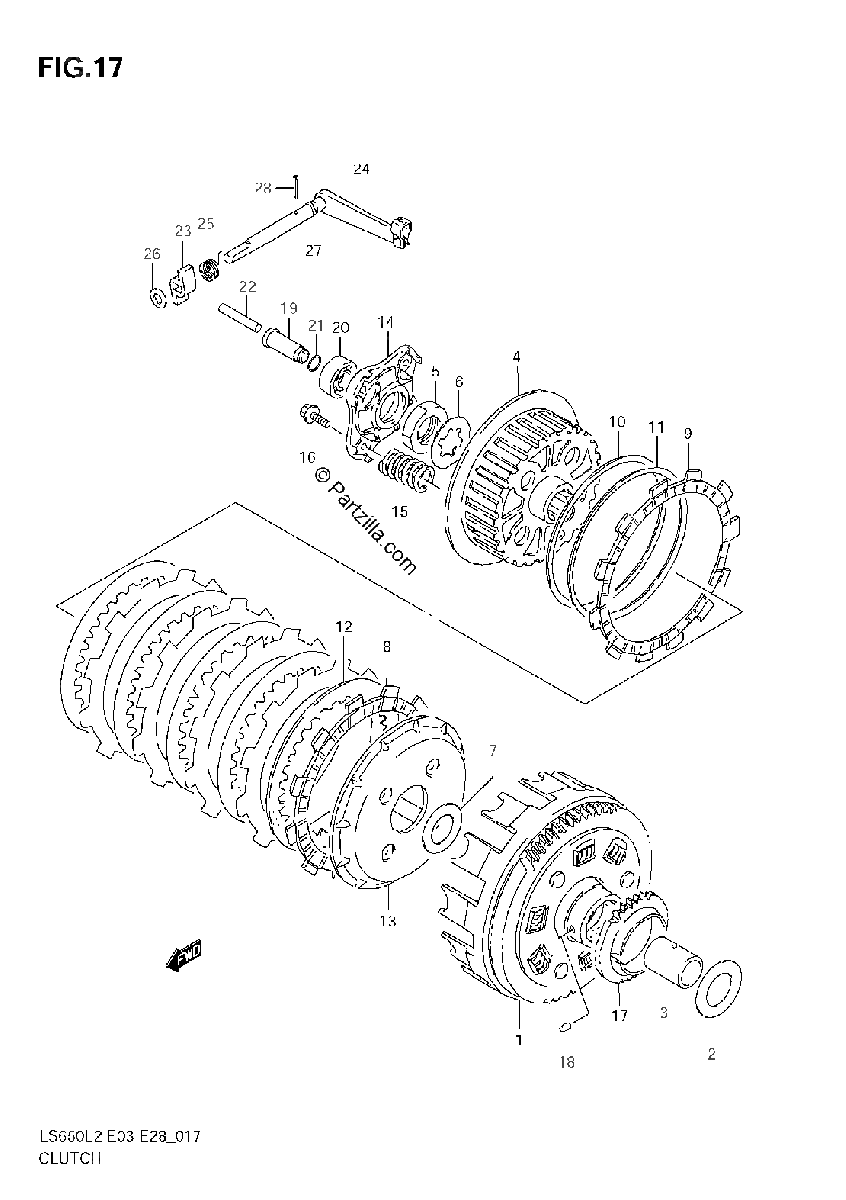

Diagrama de CLUTCH

Repuestos

#1
21200-24B12
GEAR ASSY, PRIMARY DRIVEN
$457.18¢228 591
1
#2
08211-22443
WASHER
$5.14¢2 570
1
#3
09180-22023
SPACER (22X28X32.5)
$30.33¢15 163
1
#4
21411-37401
HUB, CLUTCH SLEEVE
$151.25¢75 624
1
#5
09140-22009
NUT
$9.60¢4 801
1
#6
09167-22005
LOCK WASHER
$2.54¢1 271
1
#7
08211-22403
WASHER
$4.67¢2 335
1
#8
21441-37400
PLATE, DRIVE NO.1 (T:3.0)
$19.88¢9 942
1
#9
21442-37401
PLATE, CLUTCH DRIVE NO.2
$20.48¢10 241
1
#10
21471-37400
SEAT, WAVE WASHER
$10.73¢5 365
1
#11
09164-00004
WASHER
$12.45¢6 227
1
#12
21451-14A00
PLATE, DRIVEN (T:1.6)
$10.44¢5 221
1
#13
21462-37400
DISK, CLUTCH PRESSURE
$71.62¢35 811
1
#14
21465-37400
PLATE, RELEASE
$25.39¢12 696
1
#15
09440-20016
SPRING
$5.67¢2 835
1
#16
01550-0620A
BOLT
$2.36¢1 179
1
#17
16321-24B00
GEAR, OIL PUMP DRIVE (NT:30)
No Disponible
1
#18
09261-06002
PIN (6X6)
$1.85¢926
1
#19
23121-24B02
PIECE, CLUTCH PUSH
$25.39¢12 696
1
#20
09262-12001
BEARING (12X28X8)
$20.25¢10 126
1
#21
09280-09005
O RING (D:1.9, ID:8.6)
$3.99¢1 995
1
#23
23263-24B01
CAM, CLUTCH RELEASE
$11.18¢5 589
1
#24
23270-24B03
ARM ASSY, CLUTCH RELEASE
$154.65¢77 326
1
#25
09448-13010
SPRING
$3.12¢1 558
1
#26
09181-10111
SHIM (10X14X1)
$2.36¢1 179
1
#27
09280-07004
O RING (D:1.9,ID:6.8)
$1.85¢926
1
#28
04111-2020A
PIN, COTTER
$1.46¢730
1
#22-1
23111-24B00-445
ROD, CLUTCH PUSH (L:44.5)
$7.36¢3 680
1
#22-2
23111-24B00-455
ROD, CLUTCH PUSH (L:45.5)
$9.69¢4 847
1
#22-3
23111-24B00-465
ROD, CLUTCH PUSH (L:46.5)
$7.36¢3 680
1
