CRANKSHAFT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

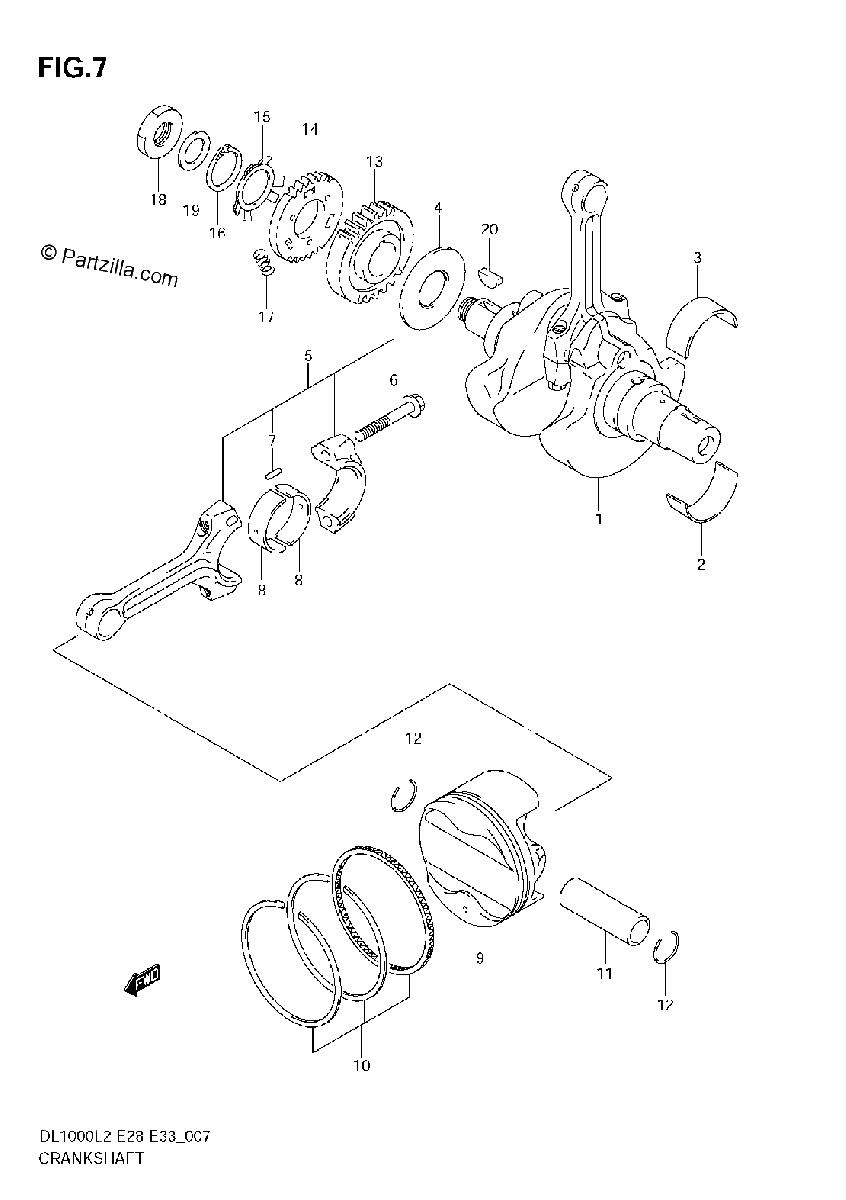

Diagrama de CRANKSHAFT

Repuestos

#1
12220-06G00
CRANKSHAFT
No Disponible
1
#2
12229-16G00-0B0
BEARING, UPPER (BLACK)
$34.41¢17 204
1
#2
12229-16G00-0A0
BEARING, UPPER (GREEN)
$34.41¢17 204
1
#2
12229-16G00-0C0
BEARING, UPPER (BROWN)
$34.41¢17 204
1
#3
12229-16G00-0B0
BEARING, UPPER (BLACK)
$34.41¢17 204
1
#3
12229-16G00-0A0
BEARING, UPPER (GREEN)
$34.41¢17 204
1
#3
12229-16G00-0C0
BEARING, UPPER (BROWN)
$34.41¢17 204
1
#4
12652-38B00
WASHER, CRANK THRUST
No Disponible
1
#5
12160-06G00
CONNECTING ROD ASSY
No Disponible
1
#6
12163-06G00
.BOLT, CONNECTING ROD
$25.91¢12 955
1
#7
12165-27A50
.PIN
$1.18¢592
1
#8
12164-02F12-0A0
BEARING, CRANK PIN (GREEN)
No Disponible
1
#8
12164-02F12-0B0
BEARING, CRANK PIN (BLACK)
$31.89¢15 945
1
#8
12164-02F12-0D0
BEARING, CRANK PIN (YELLOW)
$31.89¢15 945
1
#8
12164-02F12-0C0
BEARING, CRANK PIN (BROWN)
$31.89¢15 945
1
#9
12111-06G00-0F0
PISTON
No Disponible
1
#10
12140-02F42
RING SET, PISTON
$92.89¢46 443
1
#11
12151-02F00
PIN, PISTON
$37.03¢18 515
1
#12
09381-22002
CIRCLIP
$1.99¢995
1
#13
21111-02F11
GEAR, PRIMARY DRIVE (NT:31)
No Disponible
1
#14
21112-02F00
GEAR, PRIMARY DRIVE SCISSORS
No Disponible
1
#15
21114-02F00
WASHER
$13.22¢6 613
1
#16
08331-31409
CIRCLIP
$4.34¢2 168
1
#17
09440-07001
SPRING
$2.88¢1 438
1
#18
09140-22012
NUT
$15.93¢7 964
1
#19
09164-22007
WASHER
$8.88¢4 439
1
#20
09420-06001
KEY
$11.19¢5 595
1
