REAR CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

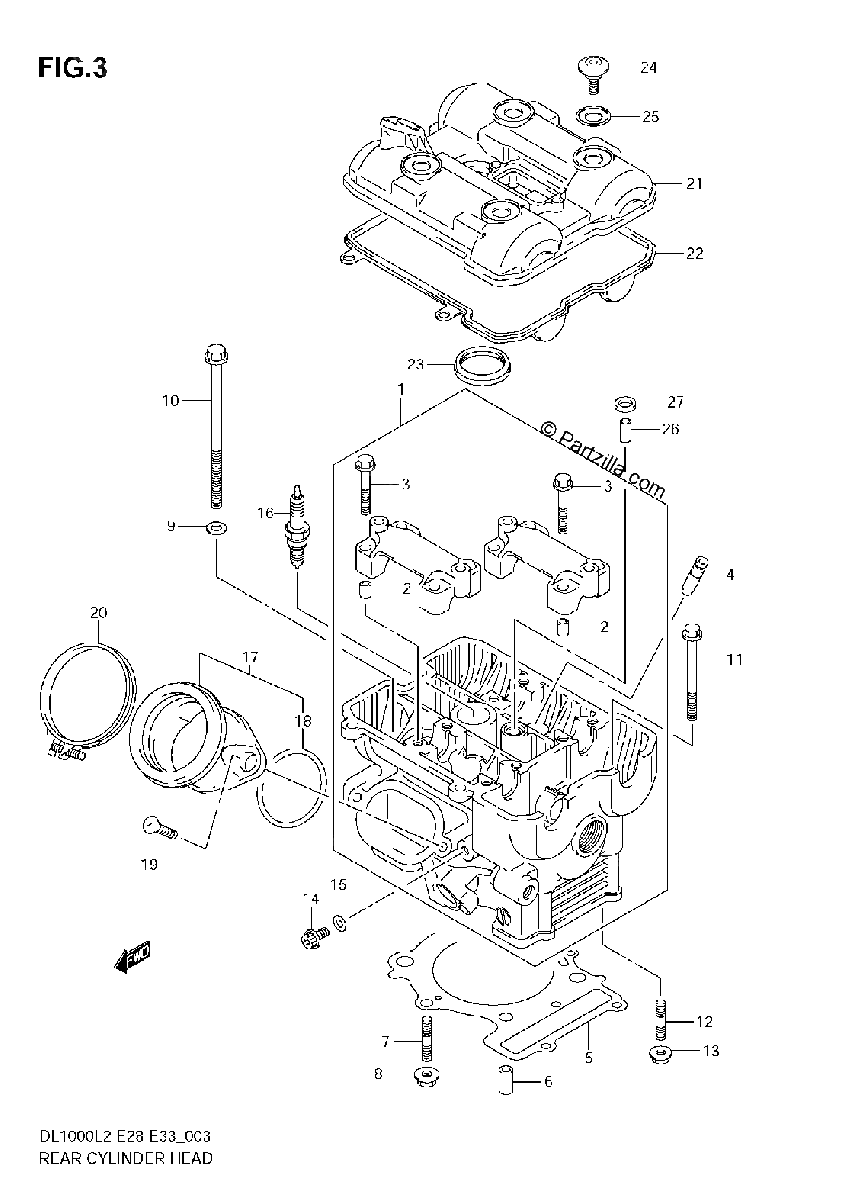

Diagrama de REAR CYLINDER HEAD

Repuestos

#1
11100-06G00
HEAD ASSY, CYLINDER FRONT
No Disponible
1
#2
09206-08001
.PIN (8X11)
$2.30¢1 150
1
#3
09103-06026
.BOLT (6X39)
$2.34¢1 169
1
#4
11115-32E70
GUIDE, VALVE (OS:0.3) | OPT
$52.96¢26 481
1
#5
11141-02F01
GASKET, CYLINDER HEAD
$53.32¢26 662
1
#6
04211-13189
PIN
$2.85¢1 425
1
#7
09108-08143
STUD BOLT
$4.97¢2 488
1
#8
08316-1008B
NUT
$3.45¢1 725
1
#9
09160-10082
WASHER (10.5X19X2) | FRONT
$2.10¢1 050
1
#10
09103-10276
BOLT (10X175)
$18.81¢9 406
1
#11
09103-06103
BOLT (6X70)
$3.29¢1 644
1
#12
09108-06096
STUD BOLT
$1.56¢781
1
#13
08316-1006B
NUT
$3.25¢1 625
1
#14
09103-06222
BOLT (6X12)
$2.97¢1 487
1
#15
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#16
09482-00413
SPARK PLUG (U24ETR) | DENSO
$17.29¢8 644
1
#16
09482-00462
SPARK PLUG (NGK, CR10EK) | OPT
$16.41¢8 206
1
#16
09482-00459
SPARK PLUG (DENSO,U27ESR-N) | OPT,DENSO
$7.26¢3 631
1
#16
09482-00463
SPARK PLUG (DENSO, U31ETR) | OPT
$20.23¢10 113
1
#16
09482-00412
SPARK PLUG (CR8EK) | NGK
$12.66¢6 331
1
#16
09482-00410
SPARK PLUG (CR9EK) | OPT,NGK
$13.81¢6 906
1
#17
13102-06G00
PIPE, INTAKE REAR
$85.65¢42 825
1
#18
09280-55005
.O RING (D:2.4,ID:55.6)
$7.66¢3 831
1
#19
02122-0616B
SCREW
$2.58¢1 288
1
#20
09402-70902
.CLAMP
$6.64¢3 319
1
#21
11172-06G00
COVER, CYLINDER HEAD
No Disponible
1
#22
11173-02F00
GASKET, CYLINDER HEAD COVER
$43.88¢21 938
1
#23
11178-17E00
GASKET, CYLINDER HEAD COVER
$7.92¢3 963
1
#24
09106-07021
BOLT (7X17.5)
$5.30¢2 650
1
#25
11191-27E00
WASHER
$4.85¢2 425
1
#26
09206-08007
.PIN (6.2X8X16)
$3.41¢1 706
1
#27
11182-35F00
GASKET, 2ND AIR PASSAGE
$3.93¢1 963
1
