REAR MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

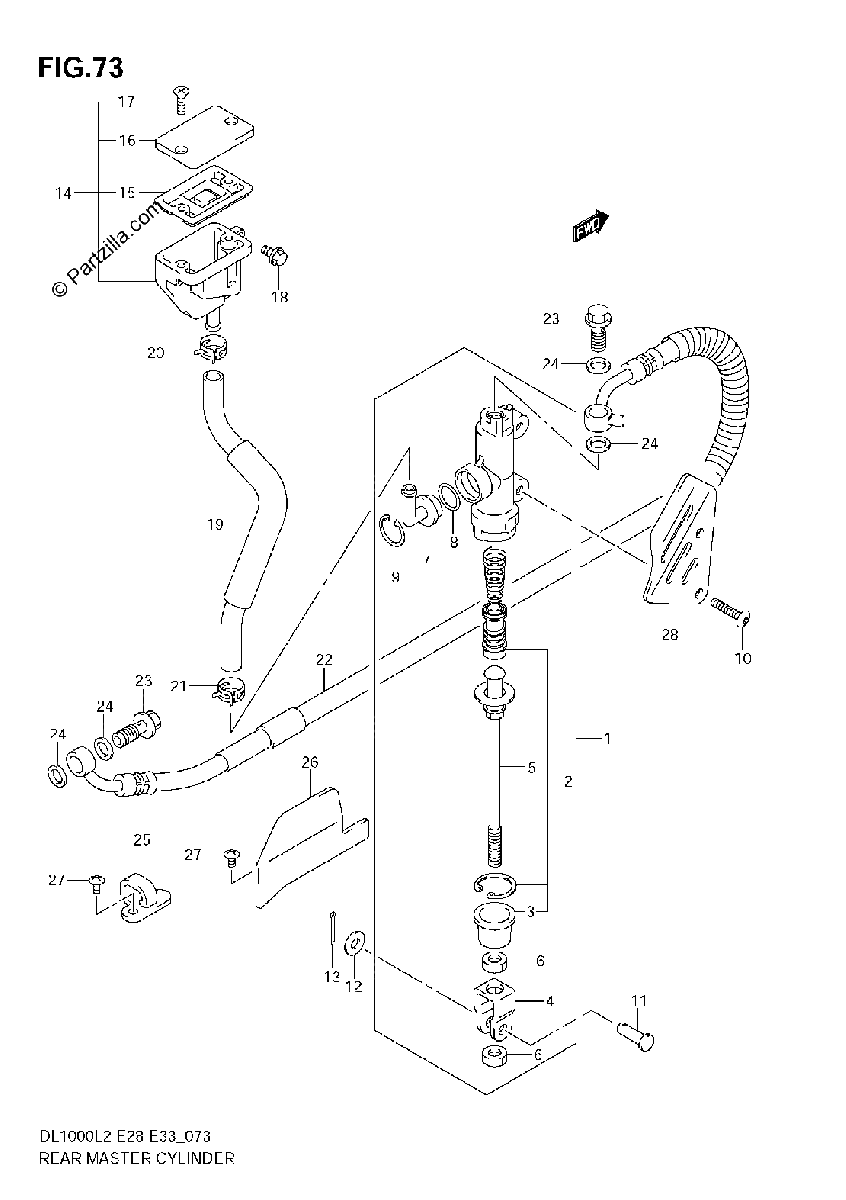

Diagrama de REAR MASTER CYLINDER

Repuestos

#1
69600-06G00
CYLINDER ASSY, REAR MASTER
$370.99¢185 495
1
#2
69600-34820
.PISTON/CUP SET
$29.16¢14 582
1
#3
69691-00A00
..BOOT
$5.99¢2 996
1
#4
69692-19A00
.YOKE
$20.95¢10 476
1
#5
69670-03G00
.ROD, PUSH
$54.74¢27 370
1
#6
69693-05A00
.NUT
$2.13¢1 064
1
#7
69672-00B20
.CONNECTOR
$7.69¢3 847
1
#8
69686-34200
.O RING
$3.36¢1 679
1
#9
69674-00B20
.CIRCLIP
$4.47¢2 237
1
#10
09139-06029
SCREW (6X25)
$5.80¢2 898
1
#11
09200-06068
PIN (6X18.2)
$4.45¢2 225
1
#12
08322-0106B
.WASHER
$2.69¢1 346
1
#13
04111-2015A
COTTER PIN
$1.46¢730
1
#14
69740-01D02
TANK ASSY, RESERVOIR
$77.33¢38 663
1
#15
59667-04700
.DIAPHRAGM
$10.73¢5 365
1
#16
59669-05D00
.CAP
$18.91¢9 453
1
#17
69689-04A00
.SCREW
$2.21¢1 104
1
#18
01547-0612A
BOLT
$2.42¢1 208
1
#19
69730-06G00
HOSE, RESERVOIR TANK
$38.85¢19 424
1
#20
09401-13417
CLIP
$2.69¢1 346
1
#21
09401-12404
CLIP
$2.84¢1 420
1
#22
69480-06G01
HOSE, REAR BRAKE
$97.67¢48 835
1
#23
09360-10062
UNION
$6.97¢3 484
1
#24
09161-10009
WASHER (10X15X1.5)
$2.20¢1 098
1
#25
61196-27C30
GUIDE, REAR BRAKE HOSE
$6.77¢3 387
1
#26
61196-06G00
GUIDE, REAR BRAKE HOSE FRONT
$24.09¢12 046
1
#27
02142-0510B
SCREW
$2.12¢1 058
1
#28
69641-06G00
COVER, REAR MASTER CYLINDER
No Disponible
1
