FRAME COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

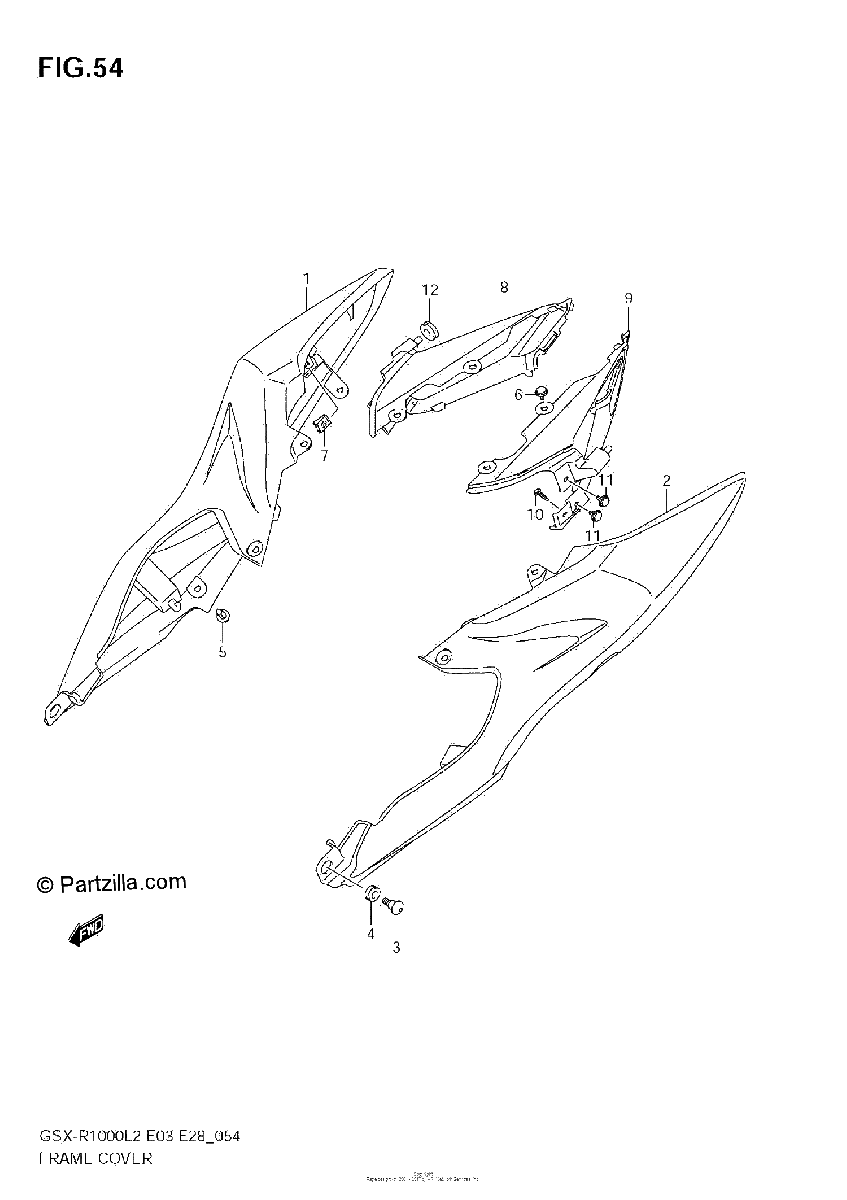

Diagrama de FRAME COVER

Repuestos

#1
47111-47H00-YKV
COVER, FRAME RH (BLACK) | FOR HTL
$234.77¢117 386
1
#1
47111-47H00-YBD
COVER, FRAME RH (WHITE) | FOR GLR
$239.20¢119 600
1
#2
47211-47H00-YBD
COVER, FRAME LH (WHITE) | FOR GLR
$243.72¢121 860
1
#2
47211-47H00-YKV
COVER, FRAME LH (BLACK) | FOR HTL
$239.20¢119 600
1
#3
47133-43H00
SCREW
$6.80¢3 398
1
#4
09320-08021
CUSHION | RH
$2.04¢1 018
1
#5
09409-06314-5PK
CLIP (BLACK)
$3.31¢1 656
1
#6
09409-06328
CLIP
$3.50¢1 748
1
#7
09148-05038
NUT
$2.36¢1 179
1
#8
47611-47H00-Y4P
COVER, FRAME REAR RH (GRAY) | FOR KGL
No Disponible
1
#8
47611-47H00-YUA
COVER, FRAME REAR RH (BLUE) | FOR GLR
No Disponible
1
#9
47621-47H00-Y4P
COVER, FRAME REAR LH (GRAY) | FOR KGL
$152.97¢76 487
1
#9
47621-47H00-YUA
COVER, FRAME REAR LH (BLUE) | FOR GLR
$141.20¢70 599
1
#10
03541-0512A
SCREW
$1.64¢822
1
#11
09409-06328
CLIP
$3.50¢1 748
1
#12
09320-06504
CUSHION
$5.36¢2 680
1
