FOOTREST

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

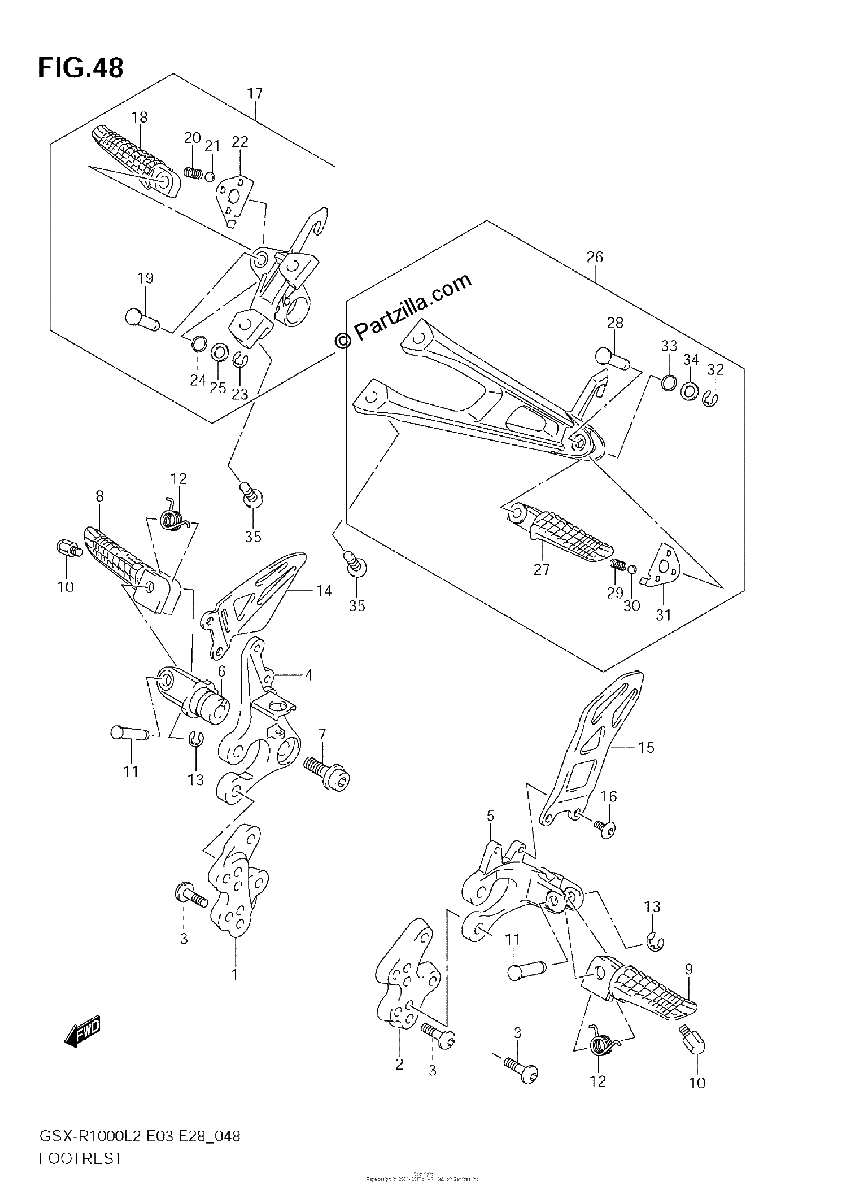

Diagrama de FOOTREST

Repuestos

#1
43541-47H00
BRACKET, FRONT NO.1 RH
$89.65¢44 825
1
#2
43551-47H00
BRACKET, FRONT NO.1 LH
$86.35¢43 175
1
#3
09106-08186
BOLT (8X23)
$4.01¢2 006
1
#4
43511-47H00
BRACKET, FRONT NO.2 RH
$192.15¢96 075
1
#5
43521-47H10
BRACKET, FOOTREST NO.2 LH
$184.16¢92 081
1
#6
43531-41G10
HOLDER, FOOTREST BAR RH
$133.90¢66 950
1
#7
09106-10064
BOLT (10X28)
$5.75¢2 875
1
#8
43516-37H00
BAR, FOOTREST RH
$65.13¢32 563
1
#9
43526-37H00
BAR, FOOTREST LH
$48.66¢24 331
1
#10
43576-48B02
BOLT, BANK SENSOR
$8.92¢4 462
1
#11
09208-08018
PIN
$3.61¢1 806
1
#12
09448-14037
SPRING
$3.77¢1 888
1
#13
08332-1106A
.E RING
$1.86¢931
1
#14
43571-47H00
GUARD, FOOTREST RH
$108.06¢54 031
1
#15
43576-47H10
GUARD, FOOTREST LH
$106.06¢53 031
1
#16
43577-35F00
SCREW, LH
$4.75¢2 375
1
#17
43600-47H10
FOOTREST ASSY, PILLION RH
$299.54¢149 769
1
#18
43611-37H20
BAR, PILLION FOOTREST RH
$60.29¢30 144
1
#19
09208-08014
.PIN
$5.66¢2 831
1
#20
09440-05005
.SPRING
$1.85¢925
1
#21
06111-07004
.BALL
$1.59¢794
1
#22
43816-47H00
.PLATE
$10.19¢5 094
1
#23
08332-1106A
.E RING
$1.86¢931
1
#24
18592-68K00
.O RING (D:2.4,ID:6.9)
$6.50¢3 250
1
#25
14289-37H00
.WASHER
$7.09¢3 544
1
#26
43700-47H30
FOOTREST ASSY,P
$314.52¢157 263
1
#27
43621-37H20
BAR, PILLION FOOTREST LH
$58.31¢29 156
1
#28
09208-08014
.PIN
$5.66¢2 831
1
#29
09440-05005
.SPRING
$1.85¢925
1
#30
06111-07004
.BALL
$1.59¢794
1
#31
43826-47H00
.PLATE
$9.81¢4 906
1
#32
08332-1106A
.E RING
$1.86¢931
1
#33
18592-68K00
.O RING (D:2.4,ID:6.9)
$6.50¢3 250
1
#34
14289-37H00
.WASHER
$7.09¢3 544
1
#35
09106-08186
BOLT (8X23)
$4.01¢2 006
1
