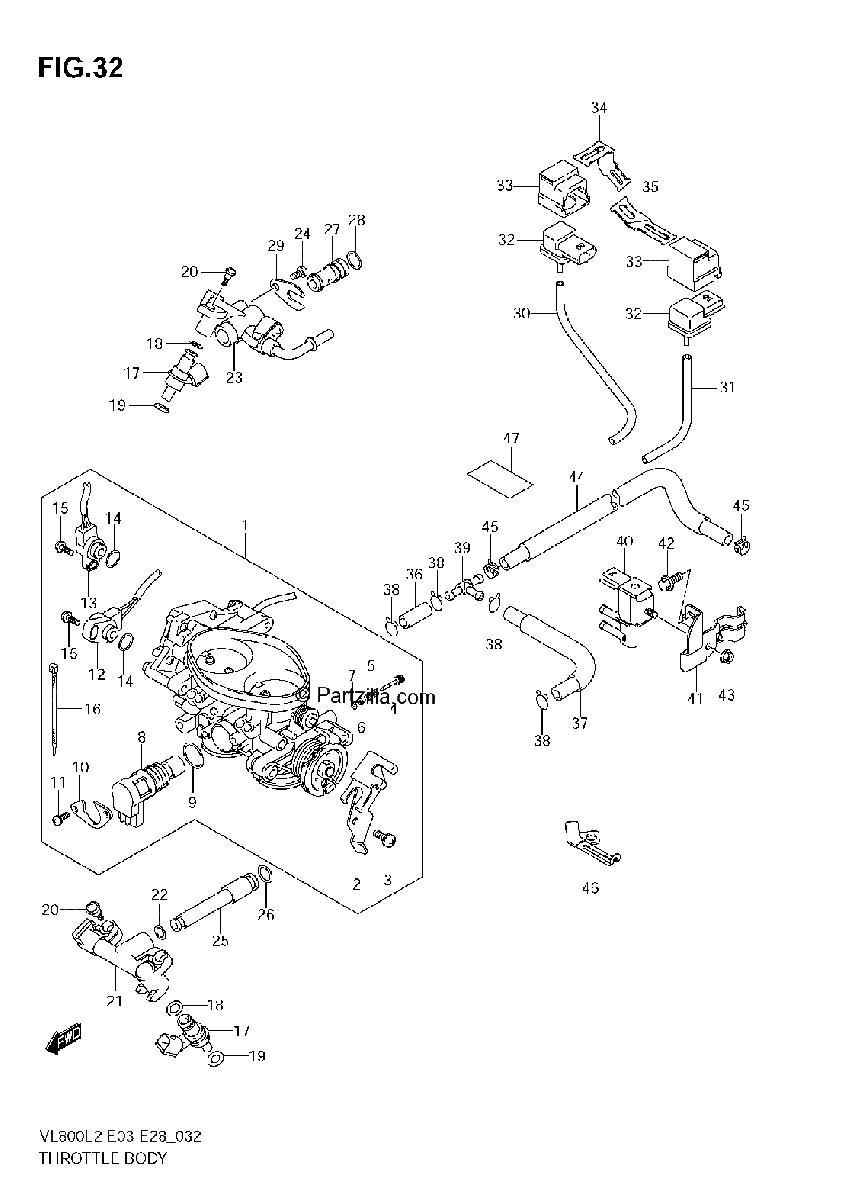

THROTTLE BODY VL800C E33
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BODY, THROTTLE
$1298.58¢649 290
#2
.PLATE, STAY
No Disponible
#3
.SCREW
No Disponible
#4
.SCREW, AIR ADJUST
$14.70¢7 348
#5
.SPRING
No Disponible
#6
.WASHER
$3.36¢1 679
#7
.O RING
$4.76¢2 380
#8
VALVE ASSY, ISC
$446.43¢223 215
#9
.O RING
$4.91¢2 455
#10
.PLATE, ISC VALVE
No Disponible
#11
.SCREW
$8.83¢4 416
#12
SENSOR ASSY, MAIN
$301.21¢150 604
#13
SENSOR ASSY, SUB
$168.90¢84 450
#14
.O RING
$4.61¢2 306
#15
.SCREW
$4.19¢2 093
#16
CLAMP (L:145)
$3.36¢1 679
#17
.INJECTOR ASSY
$294.01¢147 004
#18
O RING
$9.96¢4 980
#19
O RING
$12.34¢6 170
#20
SCREW, THROTTLE COVER
$3.51¢1 754
#21
PIPE SET, FUEL FR
$95.77¢47 886
#22
O RING
$9.96¢4 980
#23
PIPE SET, FUEL RR
$128.97¢64 486
#24
SCREW
$4.60¢2 300
#25
JOINT
$16.90¢8 452
#26
O RING
$9.96¢4 980
#27
PLUG, STRAIGHT
$8.54¢4 272
#28
O RING
$27.80¢13 898
#29
PLATE, STAY
$6.92¢3 461
#30
HOSE
$29.15¢14 576
#31
TUBE, RUBBER
No Disponible
#32
SENSOR, PRESSURE
$239.92¢119 962
#33
HOLDER
No Disponible
#34
BRACKET, BOOST SENSOR FR
No Disponible
#35
BRACKET, BOOST SENSOR RR
No Disponible
#36
HOSE
No Disponible
#37
TUBE, RUBBER
$19.24¢9 620
#38
.CLIP
$3.99¢1 995
#39
JOINT
$13.71¢6 854
#40
VALVE, CANISTER
$180.30¢90 149
#41
BRACKET, VALVE
No Disponible
#42
.BOLT
$2.85¢1 426
#43
NUT
$2.62¢1 311
#44
HOSE, CANISTER PURGE
No Disponible
#45
CLIP
$2.74¢1 368
#46
CLAMP
No Disponible
#47
TAPE, WIRING HARNESS
$3.77¢1 886
