SIDE COWLING GLR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

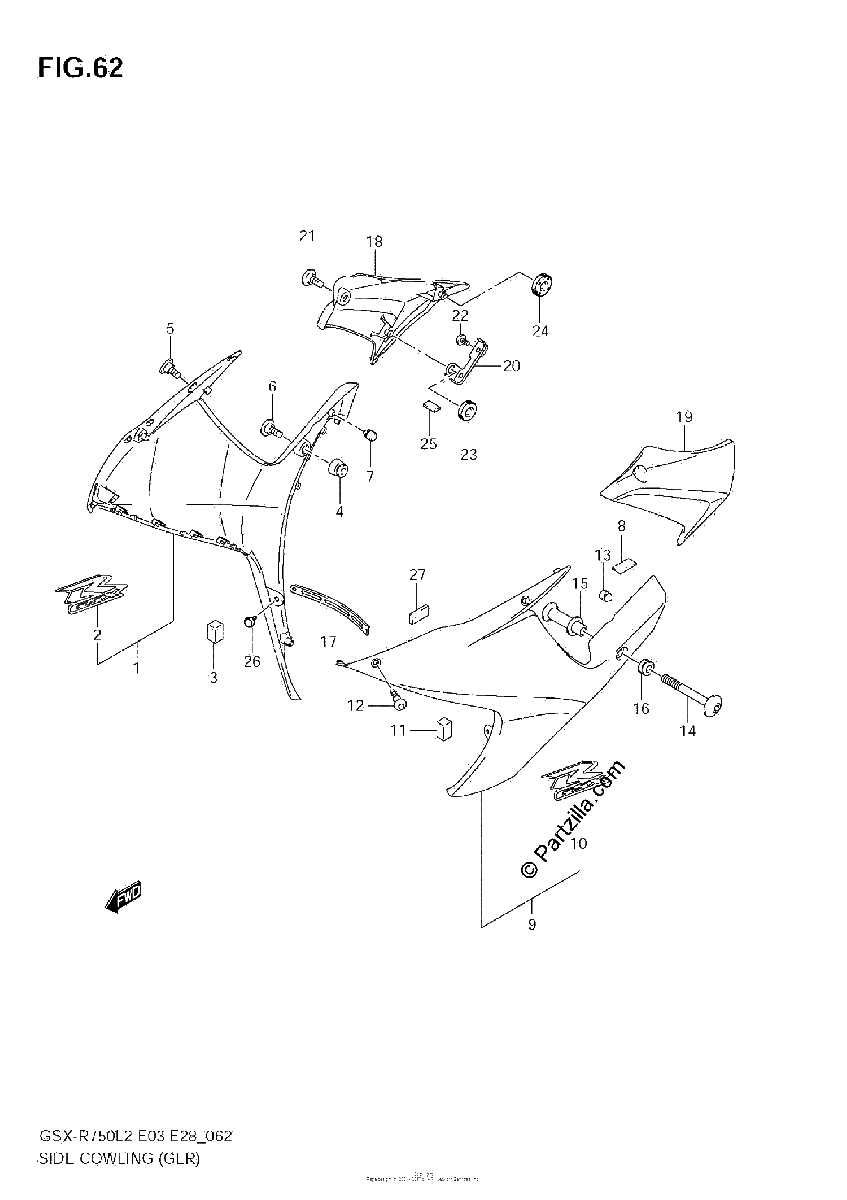

Diagrama de SIDE COWLING GLR

Repuestos

#1
94450-15J00-YBD
COWLING, SIDE RH (WHITE) | FOR GLR
$654.18¢327 089
1
#2
68681-15J00-JSN
TAPE, in.GSXRin. RH | FOR GLR
$47.87¢23 937
1
#3
94477-14J01
CUSHION
$14.17¢7 084
1
#4
94479-15H00
CUSHION, LH
$5.06¢2 530
1
#5
09139-05064
SCREW (5X13)
$3.06¢1 529
1
#6
09139-06190
BOLT (6X20)
$4.52¢2 260
1
#7
09321-06013
CUSHION
$1.82¢909
1
#8
44543-10G00
PROTECTOR (20X40X3.0) | CUT AS REQUIRED
$6.27¢3 134
1
#9
94460-15J00-YBD
COWLING, SIDE LH (WHITE) | FOR GLR
$654.18¢327 089
1
#10
68691-15J00-JSN
TAPE, in.GSXRin. LH | FOR GLR
$47.87¢23 937
1
#11
94477-14J01
CUSHION
$14.17¢7 084
1
#12
09139-05064
SCREW (5X13)
$3.06¢1 529
1
#13
09321-06013
CUSHION
$1.82¢909
1
#14
94488-14J00
SCREW, SIDE COWLING LH
$4.05¢2 024
1
#15
94489-14J00
SPACER, SIDE COWLING LH
$12.29¢6 147
1
#16
09320-09016
CUSHION
$2.36¢1 179
1
#17
94498-14J00
PLATE, UNDER COWLING CENTER
$19.24¢9 620
1
#18
94570-14J00
COVER, SIDE COWLING RH
$20.71¢10 356
1
#19
94580-14J00
COVER, SIDE COWLING LH
$20.71¢10 356
1
#20
94491-14J00
BRACKET, COVER SIDE RH
$12.42¢6 210
1
#21
09139-05064
SCREW (5X13)
$3.06¢1 529
1
#22
09139-06062
BOLT
$3.66¢1 829
1
#23
09320-08013
.CUSHION
$2.29¢1 144
1
#24
09320-08028
CUSHION
$3.36¢1 679
1
#25
94612-31F00
CUSHION, FRONT PANEL
$6.19¢3 093
1
#26
94479-35F00
CLIP
$6.16¢3 082
1
#27
33652-29F00
PROTECTOR, HARNESS (30X80X1.0)
$3.36¢1 679
1
