CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

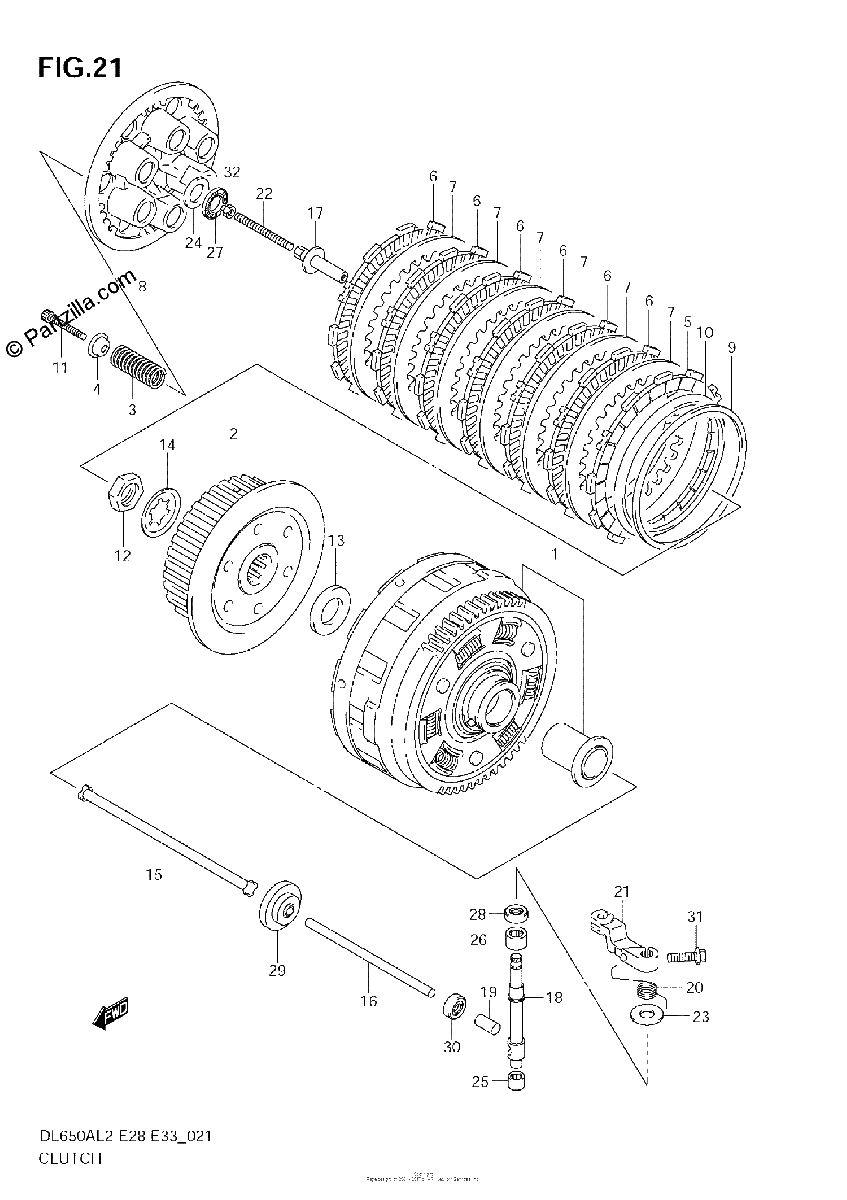

Diagrama de CLUTCH

Repuestos

#1
21200-44860
GEAR ASSY, PRIMARY DRIVEN
$534.81¢267 406
1
#2
21411-44101
HUB, CLUTCH SLEEVE
$89.80¢44 900
1
#3
21413-17G10
SPRING, CLUTCH
$11.25¢5 625
1
#4
21414-29F00
WASHER, CLUTCH SPRING
$7.66¢3 831
1
#5
21442-29F10
PLATE, CLUTCH DRIVE NO.2
$45.46¢22 731
1
#6
21441-29F30
PLATE, CLUTCH DRIVE (T:3.0)
$33.98¢16 988
1
#7
21451-28C31
PLATE, CLUTCH DRIVEN (T:1.6)
$14.07¢7 038
1
#8
21462-14301
DISC, CLUTCH PRESSURE
$80.10¢40 050
1
#9
21471-17G00
SEAT, WAVE WASHER
$15.88¢7 938
1
#10
21472-17G00
WASHER, CLUTCH PLATE WAVE
$28.60¢14 300
1
#11
21482-41G10
BOLT, CLUTCH SPRING
$4.00¢2 000
1
#12
09140-20001
NUT
$3.96¢1 981
1
#13
09160-20067
WASHER (20X36X3)
$12.78¢6 388
1
#14
09167-20009
WASHER
$2.63¢1 313
1
#15
23110-44111
ROD, CLUTCH PUSH RH
$19.33¢9 663
1
#16
23111-15501
ROD, CLUTCH PUSH LH
$15.86¢7 931
1
#17
23121-44H00
PIECE, CLUTCH PUSH
$65.91¢32 956
1
#18
23122-44H00
CAMSHAFT, CLUTCH RELEASE
$85.44¢42 719
1
#19
23123-41G00
CAP, CLUTCH PUSH ROD
$13.04¢6 519
1
#20
23125-11J00
SPRING, CLUTCH RELEASE RETURN
$5.46¢2 731
1
#21
23271-44H10
ARM, CLUTCH RELEASE
No Disponible
1
#22
09134-06015
SCREW (6X73)
$8.09¢4 044
1
#23
09160-10020
WASHER (10.5X24X1)
$2.42¢1 213
1
#24
09160-15045
WASHER (15.5X28X1)
$4.58¢2 288
1
#25
09263-10014
BEARING (10X14X10)
$15.90¢7 950
1
#26
09263-12027
BEARING (12X18X12)
$8.59¢4 294
1
#27
09263-15003
BEARING (15X28X2)
$9.75¢4 875
1
#28
09282-10012
OIL SEAL (10X20X6)
$9.38¢4 688
1
#29
09283-06008
OIL SEAL (6X34X10.5)
$19.75¢9 875
1
#30
09285-10004
OIL SEAL (10X17X5)
$3.96¢1 981
1
#31
01547-0620A
BOLT
$2.63¢1 313
1
#32
08310-0006A
NUT
$2.39¢1 194
1
