FUEL TANK E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

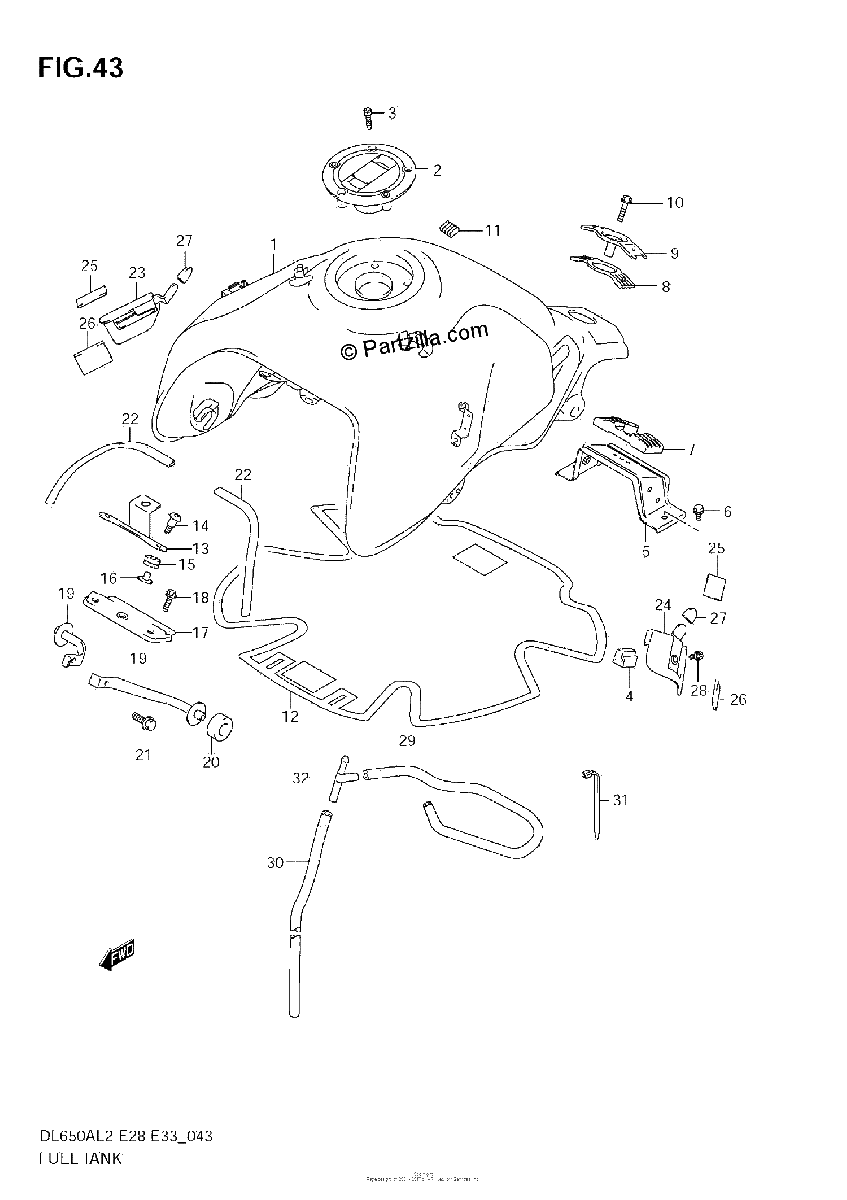

Diagrama de FUEL TANK E33

Repuestos

#1
44100-11J20-YKV
TANK, FUEL (BLACK)
No Disponible
1
#2
44200-16870
CAP SET, FUEL TANK
$191.25¢95 623
1
#3
44244-11J00
BOLT
$4.51¢2 254
1
#4
44541-11J00
CUSHION, SIDE
$6.36¢3 180
1
#5
44550-06G10
BRACKET, REAR LOWER
No Disponible
1
#6
01550-0816B
BOLT
$3.29¢1 644
1
#7
44545-06G00
CUSHION, LOWER
$22.65¢11 327
1
#8
44542-06G00
CUSHION, UPPER
$20.84¢10 419
1
#9
44530-06G00
BRACKET, UPPER
No Disponible
1
#10
01550-0835B
BOLT
$4.91¢2 455
1
#11
44572-44G00
FASTENER
$11.17¢5 583
1
#12
44194-11J00
SHIELD, TANK CENTER
$100.48¢50 238
1
#13
44154-11J00
BRACKET, FRONT COVER
$13.65¢6 825
1
#14
09139-06192
SCREW (6X25)
$3.50¢1 748
1
#15
44511-16G00
CUSHION, FUEL TANK FRONT
$4.52¢2 260
1
#16
44512-16G00
SPACER, FUEL TANK FRONT
$8.15¢4 077
1
#17
44520-11J00
BRACKET, FUEL TANK FRONT
No Disponible
1
#18
01550-0620B
BOLT (6X20)
$2.85¢1 426
1
#19
44560-11J00
BRACKET, FRONT SIDE
No Disponible
1
#20
44542-11J00
CUSHION, FRONT SIDE BRACKET
$6.06¢3 030
1
#21
01550-0612B
.BOLT
$2.85¢1 426
1
#22
68241-11J00
MOLDING, FUEL TANK
No Disponible
1
#23
44179-11J00
BRACKET, FUEL TANK COVER RH
$6.50¢3 249
1
#24
44189-11J00
BRACKET, FUEL TANK COVER LH
$3.58¢1 788
1
#25
44572-13G00
FASTENER
$12.13¢6 066
1
#26
44183-23H00
CUSHION, FUEL TANK SIDE COVER
$16.10¢8 050
1
#27
09329-18001
CUSHION
$2.27¢1 133
1
#28
07120-0612A
BOLT
$2.99¢1 495
1
#29
44423-11J00
HOSE, FUEL TANK DRAIN NO.1
No Disponible
1
#30
44423-11J10
HOSE, FUEL TANK DRAIN NO.2
No Disponible
1
#31
09407-18402
CLAMP (L:165)
$2.66¢1 328
1
#32
09367-08005
3 WAY
$5.84¢2 921
1
