REAR COMBINATION LAMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

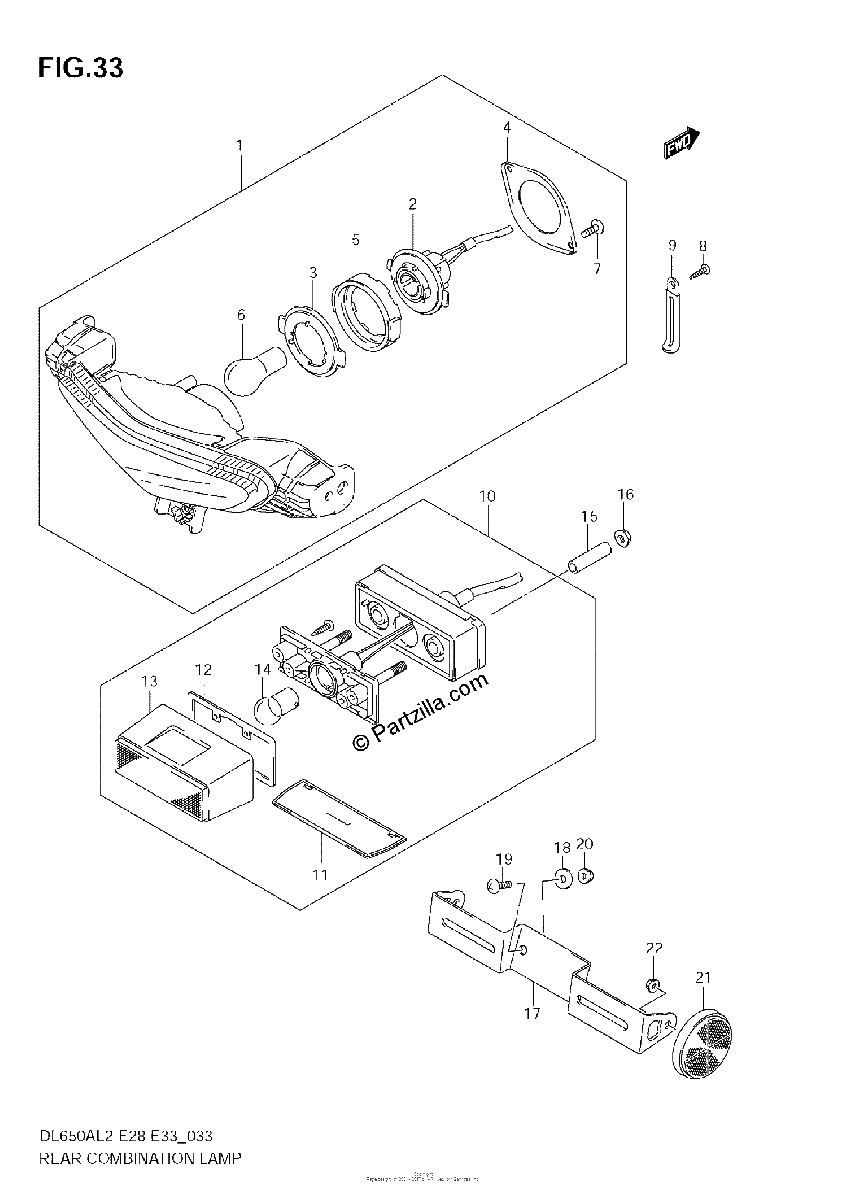

Diagrama de REAR COMBINATION LAMP

Repuestos

#1
35710-11J01
LAMP ASSY, REAR COMBINATION
$272.94¢136 469
1
#2
35718-11J01
.SOCKET CORD
$80.72¢40 363
1
#3
35716-48B21
.PLATE, NO.1
$27.29¢13 644
1
#4
35736-48B21
.PLATE, NO.2
$29.59¢14 794
1
#5
35765-48B21
CUSHION
$17.50¢8 750
1
#6
09471-12128
BULB (12V,21/5W)
$7.92¢3 963
1
#7
03211-0412A
.SCREW
$2.63¢1 313
1
#8
03541-0616A
SCREW
$2.52¢1 263
1
#9
09404-06429
CLAMP (L:45)
$2.33¢1 163
1
#10
35910-41G31
LAMP ASSY, LICENSE
$119.41¢59 706
1
#11
35912-41G01
.LENS, LICENSE
$17.94¢8 969
1
#12
35913-41G00
.GASKET
$19.21¢9 606
1
#13
35917-41G00
.COVER, LICENSE LAMP
$47.66¢23 831
1
#14
09471-12058
BULB (12V,5W)
$2.09¢1 044
1
#15
09180-06278
SPACER (6.5X9X33.3)
$5.94¢2 969
1
#16
09159-06096
NUT
$4.13¢2 063
1
#17
35927-14J30
BRACKET, LICENSE PLATE
$21.19¢10 594
1
#18
09160-06077
WASHER (6.5X20X1.2)
$2.46¢1 231
1
#19
02142-0616A
SCREW
$1.79¢894
1
#20
08316-1006A
NUT
$2.85¢1 425
1
#21
35970-14A20
REFLECTOR ASSY, REAR SIDE
$18.54¢9 269
1
#22
08316-1005A
NUT
$2.85¢1 425
1
