REAR WHEEL DR Z125L E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

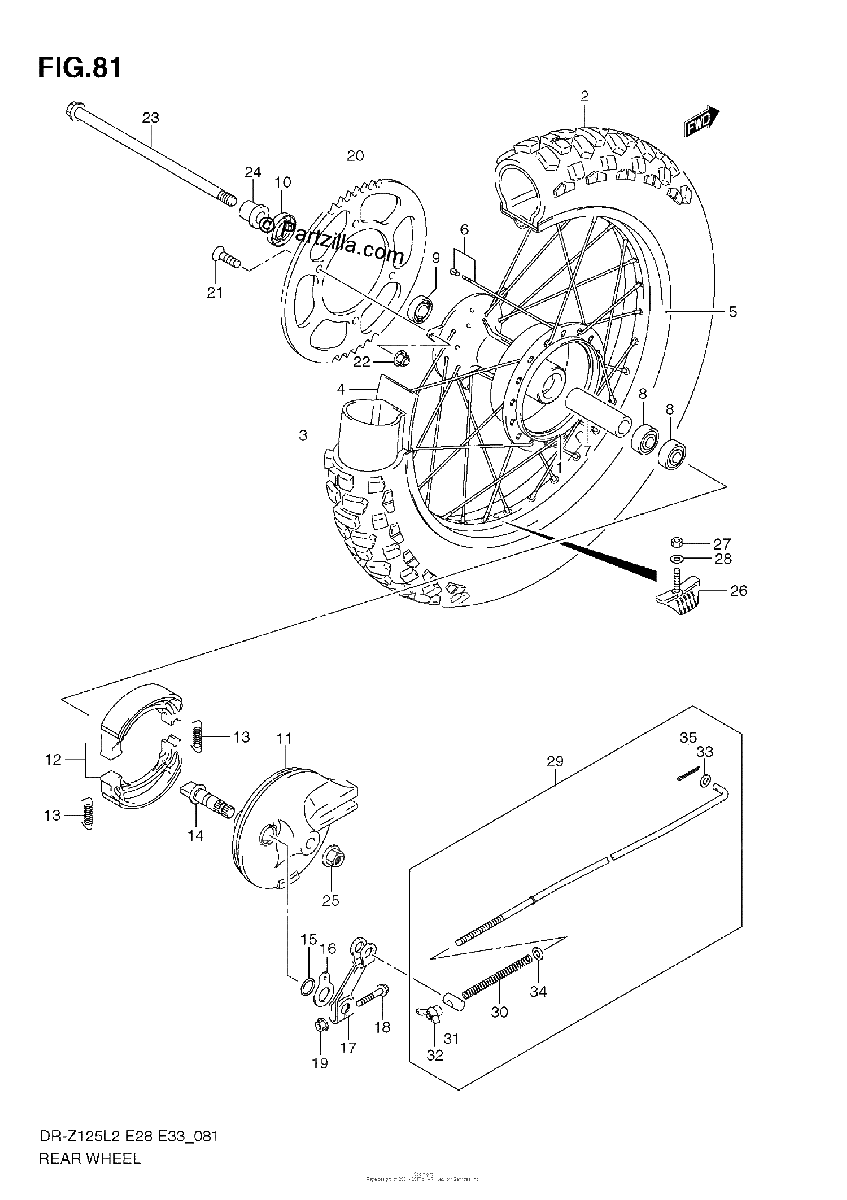

Diagrama de REAR WHEEL DR Z125L E28

Repuestos

#1
64110-08G10
HUB, REAR WHEEL
$579.00¢289 500
1
#2
65110-08G10
TIRE, REAR, 90/100-16 IRC
$220.90¢110 450
1
#3
65200-08G10
TUBE ASSY, WHEEL INNER
$55.41¢27 706
1
#4
65261-08G10
PROTECTOR, WHEEL INNER TUBE
$8.65¢4 325
1
#5
65311-08G30
RIM, REAR WHEEL (16X1.60)
$436.75¢218 375
1
#6
65320-08G30
SPOKE ASSY, REAR WHEEL
$78.78¢39 388
1
#7
09180-12151
SPACER (12.5X19X45.5)
$15.00¢7 500
1
#8
08143-62017
BEARING | RH
$12.89¢6 444
1
#9
08123-63017
BEARING | LH
$16.57¢8 288
1
#10
09283-20025
OIL SEAL (20X37X7)
$6.74¢3 369
1
#11
64210-08G00
PANEL, REAR BRAKE ANCHOR
$243.15¢121 575
1
#12
54401-43840
SHOE SET, BRAKE
$37.92¢18 963
1
#13
09443-07044
SPRING
$3.65¢1 825
1
#14
64441-13G00
CAM, BRAKE
$32.73¢16 363
1
#15
09280-14011
O RING (D:2.5,ID:13.8)
$5.60¢2 800
1
#16
54492-13G00
PLATE, BRAKE LINING INDICATOR
$6.94¢3 469
1
#17
64451-08G00
LEVER, REAR BRAKE CAM
$36.66¢18 331
1
#18
01550-0635A
BOLT
$3.01¢1 506
1
#19
08316-1006A
NUT
$2.85¢1 425
1
#20
64511-08G10
SPROCKET, REAR (NT:57)
$93.29¢46 644
1
#21
09120-08010
BOLT (8X30.5)
$3.04¢1 519
1
#22
08319-3108A
NUT
$3.01¢1 506
1
#23
64711-08G00
AXLE, REAR
$49.34¢24 669
1
#24
64751-08G00
SPACER, AXLE
$17.11¢8 556
1
#25
08319-3112A
NUT
$4.40¢2 200
1
#26
65270-08G00
STOPPER, BEAD
$73.90¢36 950
1
#27
08310-0008A
NUT
$2.42¢1 213
1
#28
08322-0108A
WASHER
$2.48¢1 238
1
#29
43300-08G10
ROD ASSY, REAR BRAKE
$21.79¢10 894
1
#30
09440-09004
.SPRING
$2.60¢1 300
1
#31
09209-11002
.PIN (11X18)
$2.74¢1 369
1
#32
09144-06005
.NUT
$4.97¢2 488
1
#33
08322-0105A
WASHER
$2.39¢1 194
1
#34
08322-0106A
WASHER
$2.39¢1 194
1
#35
04111-2020A
PIN, COTTER
$1.59¢794
1
