FRONT FORK DAMPER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

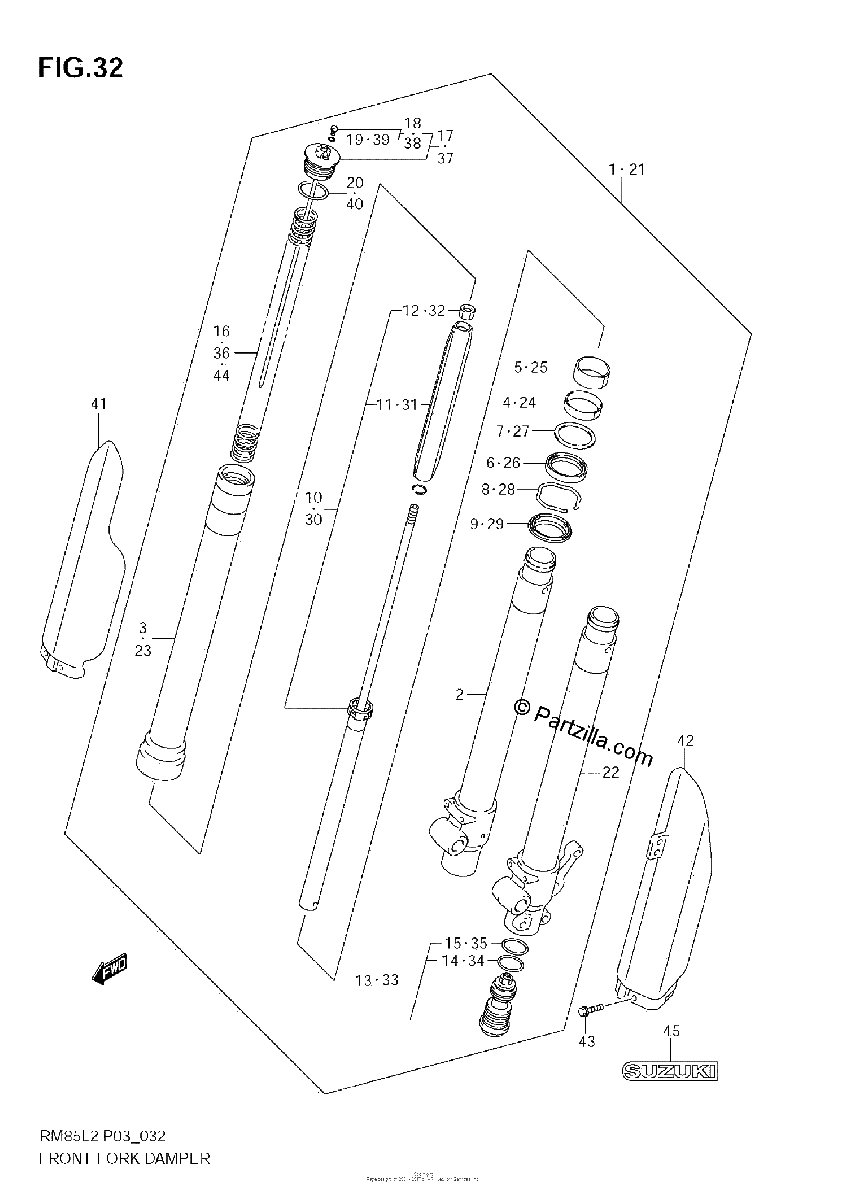

Diagrama de FRONT FORK DAMPER

Repuestos

#1
51103-03B70
DAMPER ASSY, FRONT FORK RH
No Disponible
1
#2
51110-03B30
.TUBE, INNER RH
No Disponible
1
#3
51130-03B30
.TUBE, OUTER
$926.65¢463 323
1
#4
51167-03B30
.BUSH, GUIDE
$25.84¢12 920
1
#5
51121-03B30
.BUSH, SLIDE
$23.03¢11 517
1
#6
51153-03B30
.SEAL, OIL
$20.31¢10 154
1
#7
51168-38A00
.SPACER, SEAL
$7.57¢3 783
1
#8
51156-03B30
.RING, STOPPER
$7.65¢3 824
1
#9
51173-03B30
.SEAL, DUST
$36.14¢18 072
1
#10
51190-03B70
.CYLINDER
No Disponible
1
#11
51172-03B30
..GUIDE, SPRING
$36.43¢18 216
1
#12
51129-03B30
..NUT
No Disponible
1
#13
51170-03B70
.BOLT, CENTER
No Disponible
1
#14
51177-36E20
..O RING
$4.62¢2 311
1
#15
51175-03B30
..O RING
$7.51¢3 755
1
#16
51171-03B50
.SPRING, FRONT (K=0.28)
No Disponible
1
#17
51351-03B70
.BOLT, FORK
$214.51¢107 255
1
#18
51357-27C40
..BOLT, PLUG
$12.97¢6 486
1
#19
51117-19C10
...O RING
$5.08¢2 541
1
#20
51117-29EA0
O RING
$5.52¢2 760
1
#21
51104-03B70
DAMPER ASSY, FRONT FORK LH
No Disponible
1
#22
51120-03B70
.TUBE, INNER LH
No Disponible
1
#23
51130-03B30
.TUBE, OUTER
$926.65¢463 323
1
#24
51167-03B30
.BUSH, GUIDE
$25.84¢12 920
1
#25
51121-03B30
.BUSH, SLIDE
$23.03¢11 517
1
#26
51153-03B30
.SEAL, OIL
$20.31¢10 154
1
#27
51168-38A00
.SPACER, SEAL
$7.57¢3 783
1
#28
51156-03B30
.RING, STOPPER
$7.65¢3 824
1
#29
51173-03B30
.SEAL, DUST
$36.14¢18 072
1
#30
51190-03B70
.CYLINDER
No Disponible
1
#31
51172-03B30
..GUIDE, SPRING
$36.43¢18 216
1
#32
51129-03B30
..NUT
No Disponible
1
#33
51170-03B70
.BOLT, CENTER
No Disponible
1
#34
51177-36E20
..O RING
$4.62¢2 311
1
#35
51175-03B30
..O RING
$7.51¢3 755
1
#36
51171-03B50
.SPRING, FRONT (K=0.28)
No Disponible
1
#37
51351-03B70
.BOLT, FORK
$214.51¢107 255
1
#38
51357-27C40
..BOLT, PLUG
$12.97¢6 486
1
#39
51117-19C10
...O RING
$5.08¢2 541
1
#40
51117-29EA0
O RING
$5.52¢2 760
1
#41
51501-03B10
PROTECTOR, FRONT FORK, RH
No Disponible
1
#42
51511-03B20
PROTECTOR, FRONT FORK, LH
No Disponible
1
#43
09103-06256
BOLT (6X10)
$2.62¢1 311
1
#44
51171-03B60
SPRING, FRONT (HARD K=0.30) | OPT
No Disponible
1
#44
51171-03B30
SPRING, FRONT (SOFT K=0.26) | OPT
No Disponible
1
#45
68111-03410-DSV
EMBLEM, in.SUZUKIin.
No Disponible
1
