REAR SWINGINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

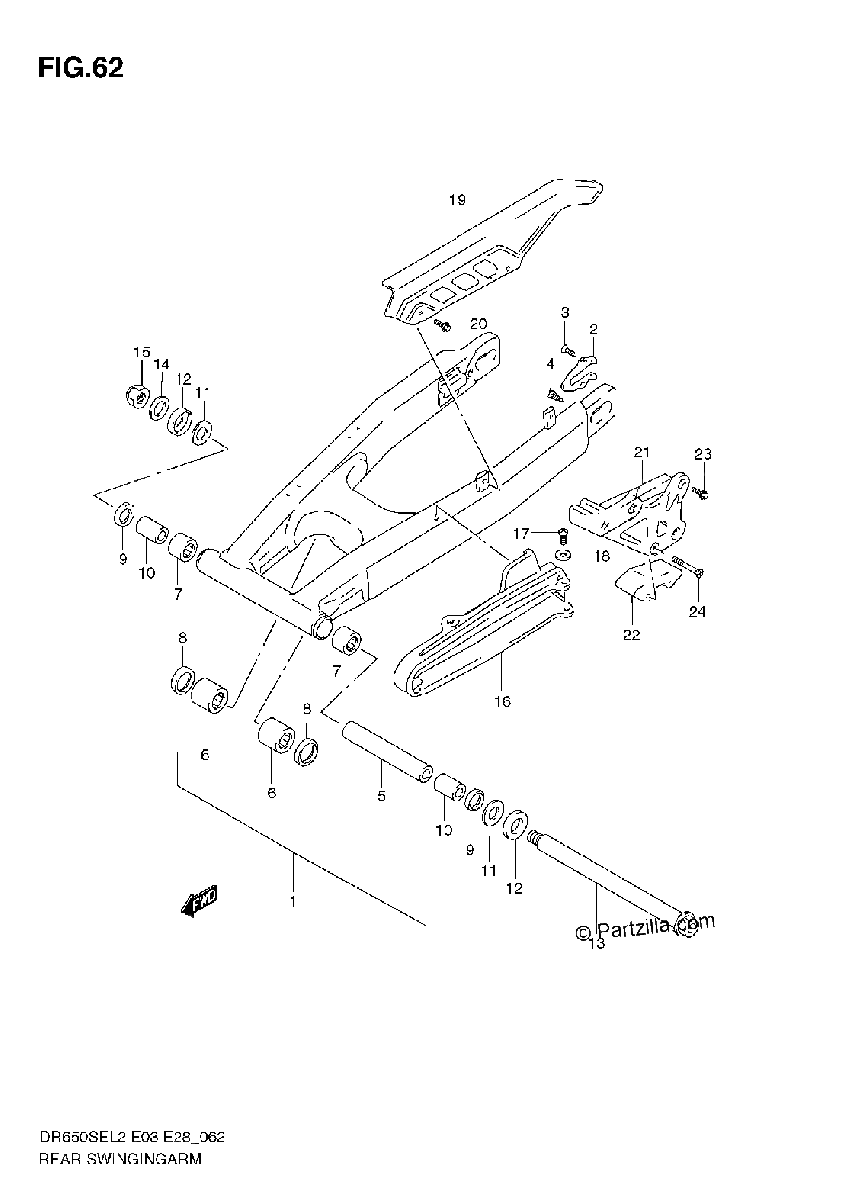

Diagrama de REAR SWINGINGARM

Repuestos

#1
61000-32E00
SWINGING ARM ASSY, REAR
$2781.63¢1 390 813
1
#2
61128-29E00
.PLATE, REAR SWINGING ARM AXL
$22.49¢11 244
1
#3
09126-05009
.SCREW (5X8)
$2.99¢1 494
1
#4
61431-13E00
STOPPER, CHAIN ADJUSTER
$15.59¢7 794
1
#5
61282-32E00
.SPACER, PIVOT
No Disponible
1
#6
09263-20071
.BEARING (20X27X23.5)
$30.90¢15 450
1
#7
09263-22017
.BEARING (22X29X30)
$26.55¢13 275
1
#8
09283-20031
.OIL SEAL (20X27X5)
$6.16¢3 081
1
#9
09285-22001
.OIL SEAL (22X29X4)
$4.50¢2 250
1
#10
61251-14D00
SPACER, PIVOT BEARING
$37.75¢18 875
1
#11
08211-17341
WASHER
$3.29¢1 644
1
#12
61262-28C10
COVER, PIVOT DUST
$8.36¢4 181
1
#13
64711-08D00
SHAFT, PIVOT
$137.96¢68 981
1
#14
08322-0116B
WASHER
$3.56¢1 781
1
#15
09159-16007
NUT
$14.81¢7 406
1
#16
61273-13E01
BUFFER, CHAIN TOUCH DEFENSE
$54.65¢27 325
1
#17
02142-0612B
SCREW
$2.40¢1 200
1
#18
09169-06057
WASHER
$3.80¢1 900
1
#19
61311-01A03
CASE, CHAIN
$77.74¢38 869
1
#20
09116-06096
BOLT (6X10)
$2.97¢1 487
1
#21
61340-15E00
GUIDE, CHAIN
$94.90¢47 450
1
#22
61348-15E00
DEFENSE, CHAIN GUIDE
$35.35¢17 675
1
#23
01550-0616B
BOLT
$3.19¢1 594
1
#24
02122-0650B
SCREW
$3.61¢1 806
1
