HANDLE LEVER DR Z125L E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

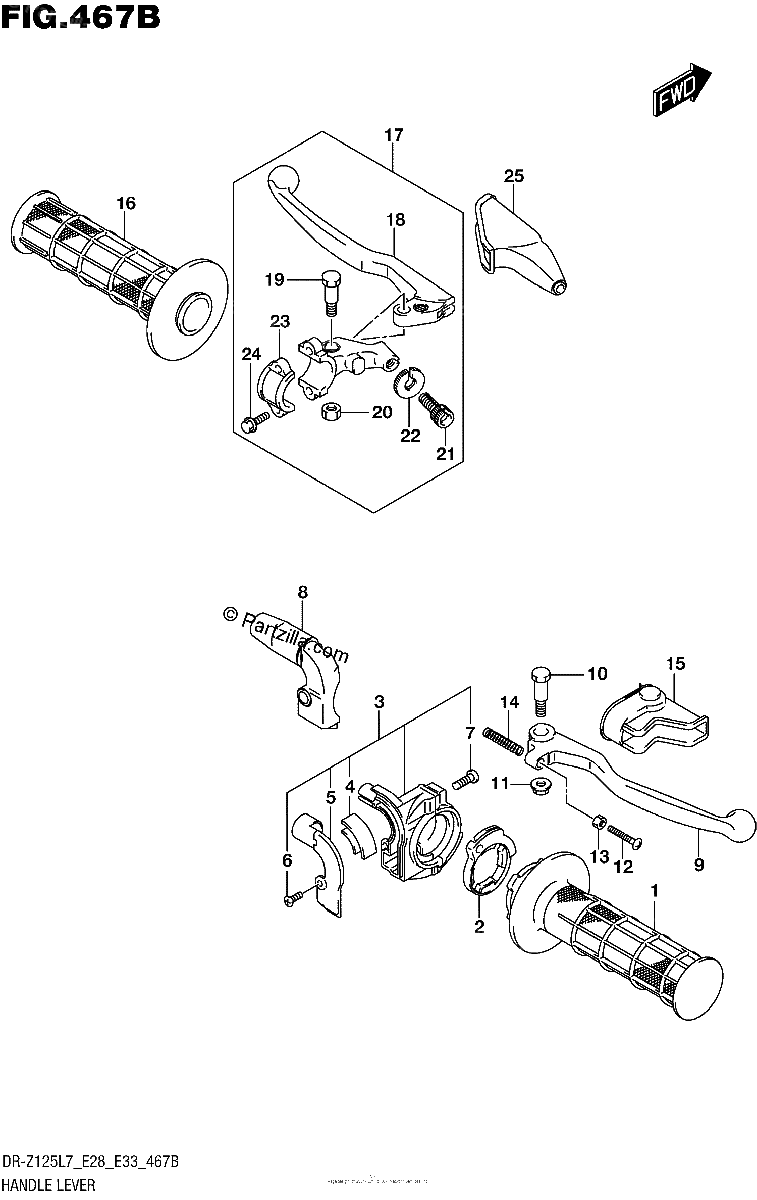

Diagrama de HANDLE LEVER DR Z125L E28

Repuestos

#1
57110-27C00
GRIP, THROTTLE
$31.45¢15 725
1
#2
57114-20430
ROTOR, THROTTLE
$16.98¢8 488
1
#3
57100-03D10
CASE ASSY, THROTTLE
$54.42¢27 213
1
#4
57122-03D10
.GUIDE
$11.46¢5 731
1
#5
57129-03D10
.COVER
$38.13¢19 063
1
#6
02132-0406B
.SCREW
$4.46¢2 231
1
#7
02112-0516A
SCREW
$1.89¢944
1
#8
57129-08G00
COVER, THROTTLE CASE
$29.47¢14 737
1
#9
57421-27C00
LEVER, BRAKE
$16.50¢8 250
1
#10
57431-14500
BOLT
$7.49¢3 744
1
#11
08316-1006B
NUT
$3.25¢1 625
1
#12
57431-14511
BOLT, ADJUST
$7.11¢3 556
1
#13
08310-0005A
NUT
$2.39¢1 194
1
#14
57318-14502
SPRING, RETURN
$5.34¢2 669
1
#15
57341-14501
COVER, BRAKE LEVER
$9.78¢4 888
1
#16
57211-27C00
GRIP LH
$14.65¢7 325
1
#17
57500-14320
LEVER ASSY, CLUTCH
$59.65¢29 825
1
#18
57621-13E00
.LEVER, CLUTCH
$15.24¢7 619
1
#19
57431-21D11
.BOLT, LEVER PIVOT
$11.65¢5 825
1
#20
08319-2106A
.NUT
$2.46¢1 231
1
#21
57441-29F00
.ADJUSTER, WIRE
$15.28¢7 638
1
#22
57442-45C00
.NUT, LOCK
$10.32¢5 163
1
#23
57512-28C00
.BRACKET, CLUTCH LEVER HOLDER
$34.60¢17 300
1
#24
57513-29F10
.BOLT
$8.41¢4 206
1
#25
57341-29F01
COVER, CLUTCH LEVER
$10.01¢5 006
1
