AIR INTAKE PIPE YSF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

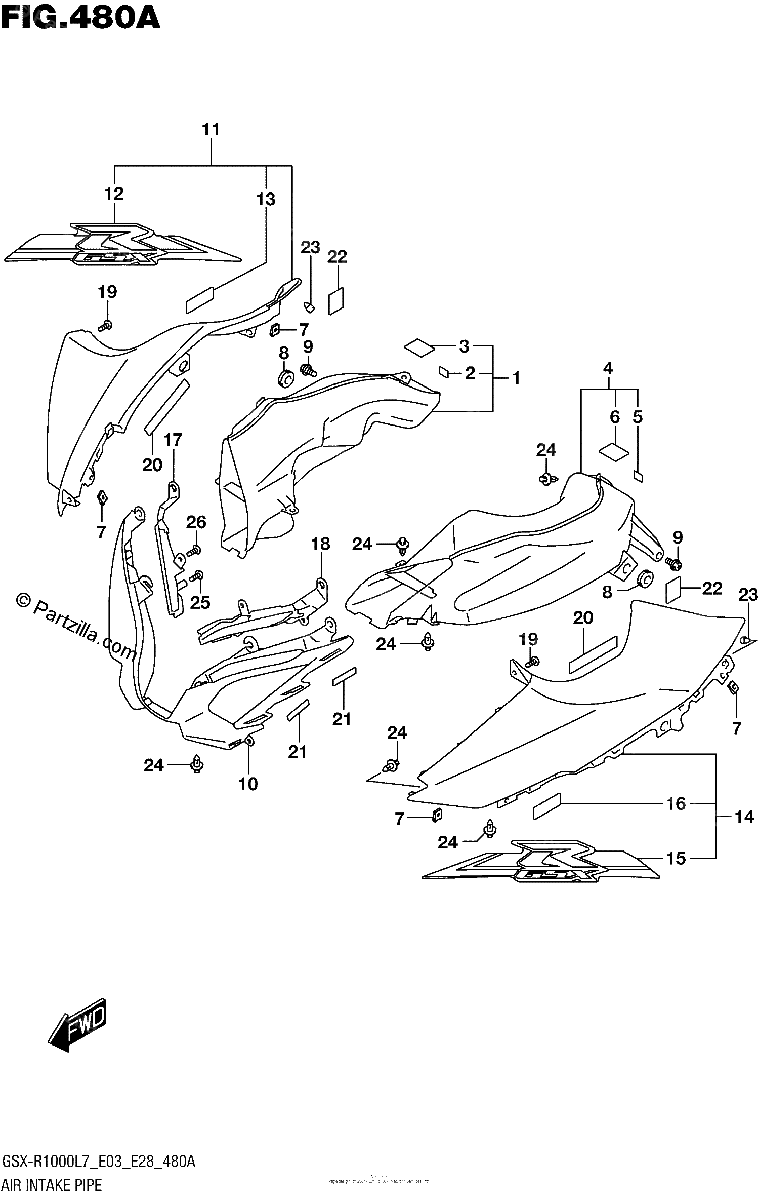

Diagrama de AIR INTAKE PIPE YSF

Repuestos

#1
94420-17K00
PIPE, AIR INTAKE RH
$75.16¢37 581
1
#2
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.45¢2 225
1
#3
36930-60A10
CUSHION, COVER
$3.65¢1 825
1
#4
94430-17K00
PIPE, AIR INTAKE LH
$97.34¢48 669
1
#5
63115-37H00
.CUSHION, PIVOT COVER NO.1
$4.45¢2 225
1
#6
36930-60A10
CUSHION, COVER
$3.65¢1 825
1
#7
09148-05052
NUT
$3.96¢1 981
1
#8
09320-08028
CUSHION
$3.65¢1 825
1
#9
09111-06106
BOLT (6X12)
$2.88¢1 438
1
#10
94671-17K00-YKV
COVER, INTAKE (BLACK) *{FOR YVB}*
$116.85¢58 425
1
#11
94670-17K10-YSF
COVER, INTAKE RH (BLUE)
$244.91¢122 456
1
#12
68275-17K10-BDJ
.TAPE, INTAKE COVER RH
$35.75¢17 875
1
#13
73415-70A00
.PAD
$1.95¢975
1
#14
94680-17K10-YSF
COVER, INTAKE LH (BLUE)
$249.53¢124 763
1
#15
68276-17K10-BDJ
.TAPE, INTAKE COVER LH
$35.75¢17 875
1
#16
73415-70A00
.PAD
$1.95¢975
1
#17
94414-17K00
COVER, INTAKE UPPER RH
$12.63¢6 313
1
#18
94415-17K00
COVER, INTAKE UPPER LH
$12.63¢6 313
1
#19
09132-05050
SCREW (5X12)
$2.40¢1 200
1
#20
36930-82010
PROTECTOR, HARNESS
$3.75¢1 875
1
#21
94476-38C00
CUSHION, HEAT SHIELD
No Disponible
1
#22
94633-31J00
.CUSHION, COVER SIDE
$3.16¢1 581
1
#23
09321-06013
CUSHION
$1.98¢988
1
#24
09409-06314-5PK
CLIP (BLACK)
$3.60¢1 800
1
#25
03541-0412B
SCREW
$1.88¢938
1
#26
03541-0512B
SCREW
$2.30¢1 150
1
