TRANSMISSION

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

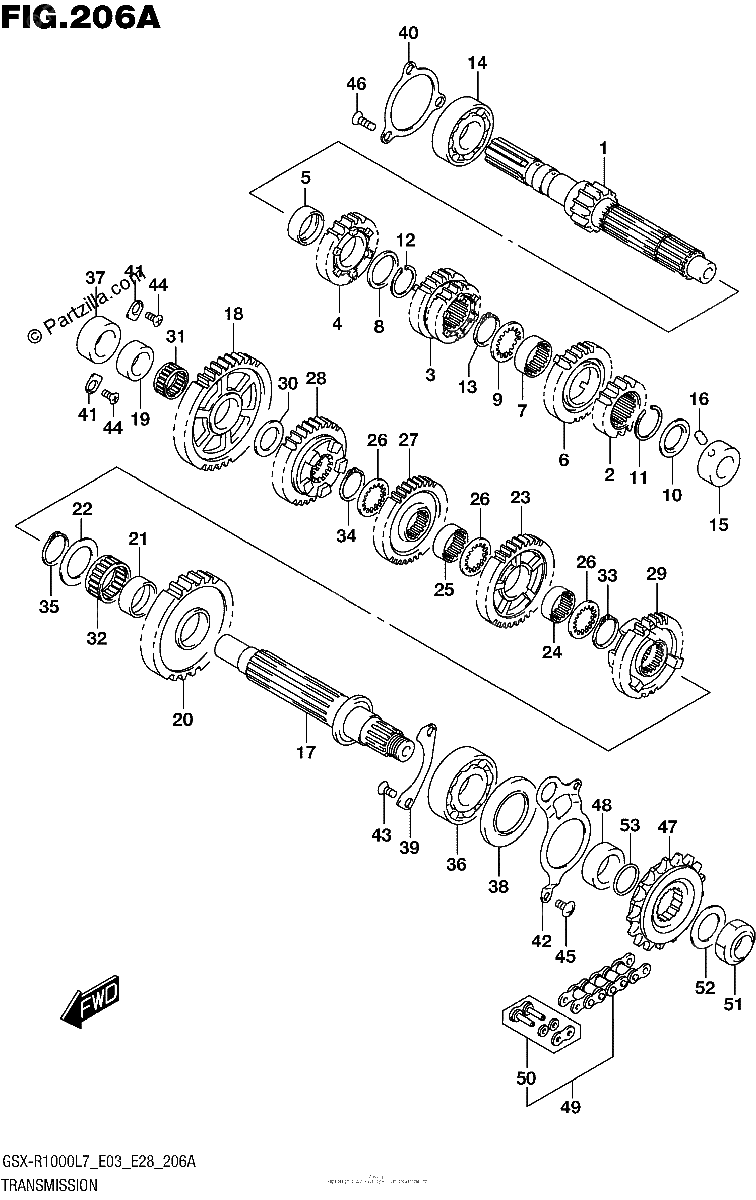

Diagrama de TRANSMISSION

Repuestos

#1
24120-17K00
SHAFT, CNTR (NT:16)
$329.73¢164 864
1
#2
24221-40F30
GEAR, 2ND DRIVE (NT:19)
$146.66¢73 330
1
#3
24231-47H10
GEAR, 3RD & 4TH DRIVE (NT:21/24)
$192.65¢96 324
1
#4
24251-47H20
GEAR, 5TH DRIVE (NT:25)
$154.90¢77 452
1
#5
24252-24F20
BUSH, 5TH DRIVE GEAR
$68.68¢34 339
1
#6
24261-47H20
GEAR, 6TH DRIVE (NT:26)
$154.90¢77 452
1
#7
24262-24F20
BUSH, 6TH DRIVE GEAR
$45.71¢22 856
1
#8
09160-27008
WASHER (27X36X1)
$4.45¢2 225
1
#9
09167-27001
LOCK WASHER
$2.84¢1 420
1
#10
09285-20006
OIL SEAL (20X31.2X2.7)
$7.05¢3 525
1
#11
09380-27004
CIRCLIP
$3.99¢1 995
1
#12
09380-27006
CIRCLIP
$3.27¢1 633
1
#13
09380-27006
CIRCLIP
$3.27¢1 633
1
#14
09262-25001
BEARING
$64.05¢32 027
1
#15
09263-20114
BEARING
$80.82¢40 411
1
#16
04221-07129
PIN
$2.25¢1 127
1
#17
24131-17K00
SHAFT, DRIVE
$295.06¢147 528
1
#18
24311-47H00
GEAR, 1ST DRIVEN (NT:41)
$212.38¢106 191
1
#19
24315-17K00
SPACER, 1ST DRIVEN GEAR
$35.53¢17 768
1
#20
24321-17K00
GEAR, 2ND DRIVEN (NT:39)
$156.88¢78 441
1
#21
24322-17K00
BUSH, 2ND DRIVEN GEAR
$39.44¢19 722
1
#22
24323-17K00
WASHER, 2ND DRIVEN GEAR
$6.35¢3 174
1
#23
24331-47H20
GEAR, 3RD DRIVEN (NT:36)
$156.88¢78 441
1
#24
24332-24F20
BUSH, 4TH DRIVEN GEAR
$45.71¢22 856
1
#25
24332-24F20
BUSH, 4TH DRIVEN GEAR
$45.71¢22 856
1
#26
24333-47H00
WASHER, 3RD 4TH DRIVE
$9.64¢4 819
1
#27
24341-47H10
GEAR, 4TH DRIVEN (NT:36)
$231.40¢115 702
1
#28
24351-47H00
GEAR, 5TH DRIVEN (NT:34)
$212.38¢106 191
1
#29
24361-17K00
GEAR, 6TH DRIVEN (NT:33)
$160.52¢80 259
1
#30
09181-24005
SHIM (24X34X1)
$3.85¢1 926
1
#31
09263-24030
BEARING (24X28X13)
$30.62¢15 312
1
#32
09263-35045
BEARING (35X40X12)
$28.26¢14 128
1
#33
09380-30009
CIRCLIP
$3.78¢1 892
1
#34
09380-30009
CIRCLIP
$3.78¢1 892
1
#35
09380-30009
CIRCLIP
$3.78¢1 892
1
#36
09262-30001
BEARING
$68.05¢34 023
1
#37
09263-22074
BEARING
$80.82¢40 411
1
#38
09283-40043
OIL SEAL
$25.25¢12 627
1
#39
09280-26005
O RING (D:2.4,ID:26.2)
$2.77¢1 386
1
#39
24741-06G00
RETAINER, DRIVE SHAFT
$10.00¢5 002
1
#40
24741-17K00
RETAINER, COUNTER SHAFT BRG
$24.70¢12 351
1
#41
24741-20A00
RETAINER, BEARING
$3.36¢1 679
1
#42
24751-17K00
RETAINER, CL PUSH ROD OIL SEA
$15.67¢7 837
1
#43
09126-06011
SCREW (6X12)
$2.42¢1 208
1
#44
09126-06011
SCREW (6X12)
$2.42¢1 208
1
#45
09139-06153
SCREW (6X13)
$3.13¢1 564
1
#46
09139-06159
SCREW (6X20)
$4.94¢2 472
1
#47
27510-17K00
SPROCKET, ENGINE (NT:17)
$131.16¢65 579
1
#48
27531-17K00
SPACER, ENGINE SPROCKET
$31.66¢15 830
1
#49
27600-17K00-120
CHAIN ASSY, DRIVE (DID525HV3)
$374.09¢187 047
1
#50
27620-17K00
.JOINT SET, DRIVE CHAIN
$21.54¢10 770
1
#51
09159-22008
NUT
$32.64¢16 318
1
#52
09181-27016
SHIM (27X42X1.5)
$6.27¢3 134
1
