FUEL TANK GSX R1000L7 E28 YSF

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

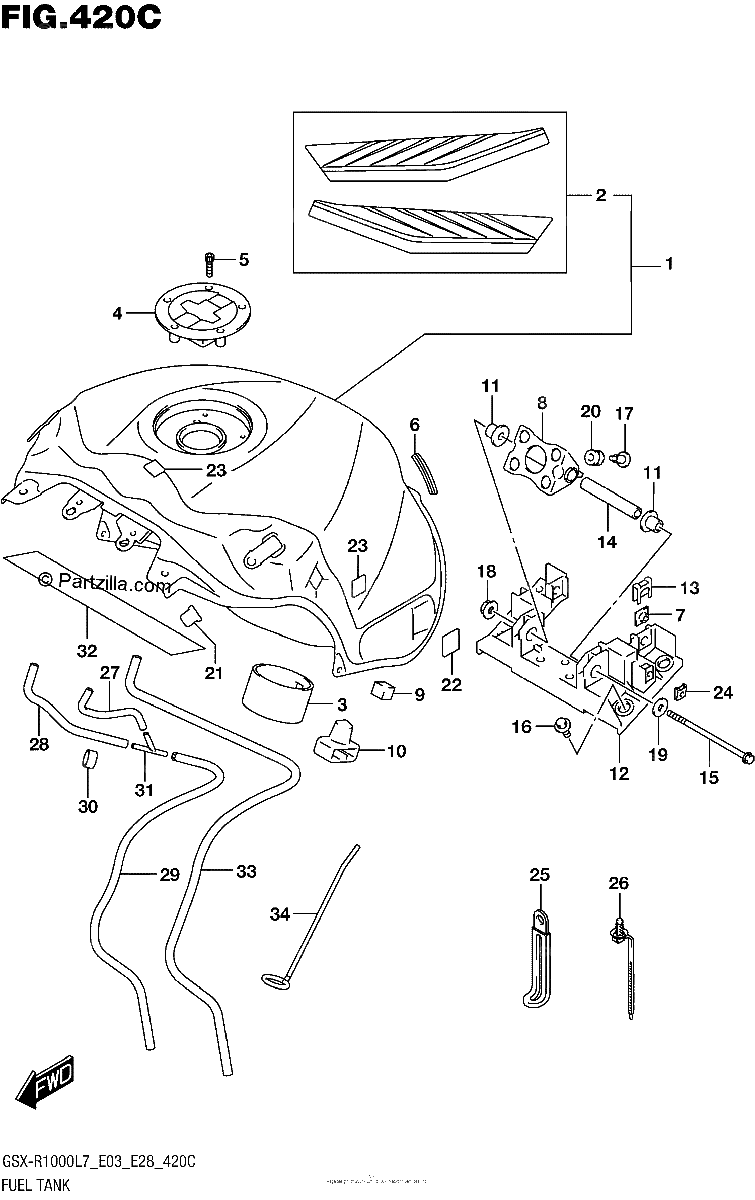

Diagrama de FUEL TANK GSX R1000L7 E28 YSF

Repuestos

#1
44100-17KA0-YSF
TANK ASSY, FUEL (BLUE)
$1267.15¢633 575
1
#2
68110-17K00-BDH
TAPE SET, FUEL TANK
$62.07¢31 033
1
#3
44121-17K00
VESSEL, FUEL TANK INNER
$20.32¢10 160
1
#4
44200-17820
CAP SET, FUEL TANK
$268.35¢134 176
1
#5
44244-11J00
BOLT
$4.51¢2 254
1
#6
44552-24B10
MOLDING, FUEL TANK REAR
$13.88¢6 940
1
#7
44523-47H00
NUT(M6)
$14.63¢7 314
1
#8
44530-17K00
BRACKET, FUEL TANK NO.1
$35.80¢17 900
1
#9
44541-17K00
CUSHION, SIDE
$6.38¢3 191
1
#10
44542-17K00
CUSHION, REAR
$14.09¢7 044
1
#11
44544-17K00
SPACER, FUEL TANK REAR BRACKE
$9.63¢4 813
1
#12
44551-17K00
BRACKET, FUEL TANK REAR
$77.89¢38 945
1
#13
44552-17K00
CLIP, NUT
$6.50¢3 249
1
#14
44561-18G00
SPACER, FUEL TANK REAR
$18.61¢9 304
1
#15
09103-06033
BOLT (6X125)
$4.22¢2 110
1
#16
09111-06081
BOLT (6X18)
$4.61¢2 306
1
#17
09139-06191
SCREW (6X22)
$4.42¢2 208
1
#18
09159-06086
NUT
$2.35¢1 173
1
#19
09160-06054
WASHER
$1.93¢966
1
#20
09320-08071
CUSHION
$3.66¢1 829
1
#21
44543-17K00
CUSHION, FUEL TANK COVER
$5.09¢2 547
1
#22
44572-13G00
FASTENER
$12.13¢6 066
1
#23
44572-44G00
FASTENER
$11.17¢5 583
1
#24
09148-05052
NUT
$3.65¢1 823
1
#25
09404-06434
CLAMP (L:80 T:1.0) | SHIELD
$2.10¢1 052
1
#26
09407-17403
CLAMP (L:154)
$5.54¢2 772
1
#27
44424-15H10
HOSE, BREATHER NO.3
$17.04¢8 522
1
#28
44424-17K00
HOSE, FUEL TANK BRTHR NO.1
No Disponible
1
#29
44424-17K10
HOSE, FUEL TANK BRTHR NO.2
$10.75¢5 376
1
#30
09352-13162-010
HOSE (13.5X16.5X10)
No Disponible
1
#31
09367-06007
3 WAY
$3.81¢1 903
1
#32
44283-17K00
PROTECTOR, FUEL TANK
$16.25¢8 125
1
#33
44423-17K00
HOSE, DRAIN
$21.47¢10 735
1
#34
44574-17K00
STAY, FUEL TANK *{OPT}*
$43.49¢21 746
1
