CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

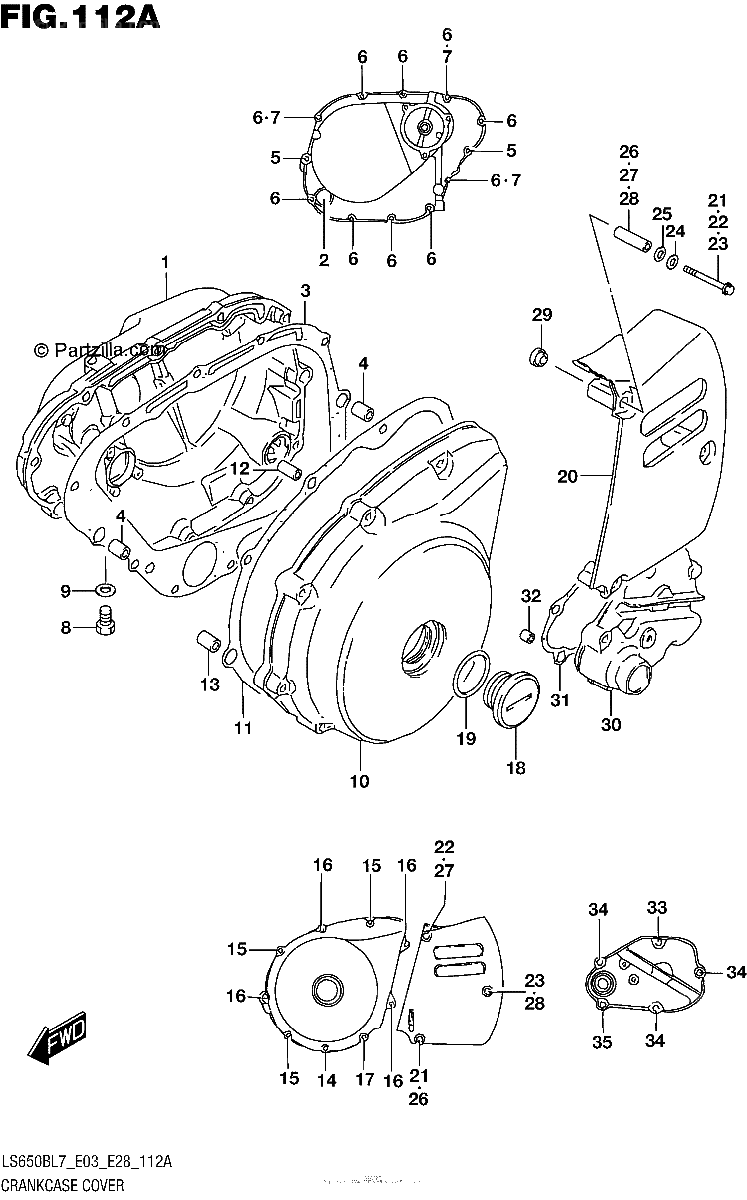

Diagrama de CRANKCASE COVER

Repuestos

#1
11340-24B10
COVER, CLUTCH
$376.13¢188 065
1
#2
11971-33210
.LENS, OIL LEVEL CHECK
$19.96¢9 982
1
#3
11482-24B20
GASKET, CLUTCH COVER
$32.61¢16 307
1
#4
04211-11169
PIN
$2.12¢1 058
1
#5
09103-06214
BOLT (6X35)
$2.98¢1 489
1
#6
09103-06212
BOLT (6X25)
$2.93¢1 466
1
#7
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#8
09247-12104
PLUG (12X9)
$3.27¢1 633
1
#9
09168-12002
GASKET (12.1X16.2X3.7)
$1.90¢949
1
#10
11351-24B20
COVER, GENERATOR
No Disponible
1
#11
11483-24B01-H17
GASKET, GENERATOR COVER
$18.79¢9 395
1
#12
04211-09189
PIN
$1.97¢983
1
#13
04211-11189
PIN
$2.15¢1 075
1
#14
09103-06212
BOLT (6X25)
$2.93¢1 466
1
#15
09103-06214
BOLT (6X35)
$2.98¢1 489
1
#16
09103-06224
BOLT (6X45)
$3.21¢1 604
1
#17
09103-06238
BOLT (6X50)
$3.17¢1 587
1
#18
09259-36011
PLUG (36X10)
$22.45¢11 224
1
#19
09280-33004
O RING (D:3.1,ID:32.7)
$2.69¢1 346
1
#20
11361-24B30
COVER, ENGINE SPROCKET
$128.05¢64 026
1
#21
09103-06224
BOLT (6X45)
$3.21¢1 604
1
#22
09103-06238
BOLT (6X50)
$3.17¢1 587
1
#23
09103-06216
BOLT (6X55)
$3.31¢1 656
1
#24
09160-06125
WASHER (6.5X14X1.6)
$2.27¢1 133
1
#25
09161-09006
WASHER (8.7X15X2.1)
$2.83¢1 414
1
#26
09180-06277
SPACER (6.5X9X31.5) | NO.1
$4.27¢2 133
1
#27
09180-06279
SPACER (6.5X9X38.3) | NO.2
$4.86¢2 432
1
#28
09180-06280
SPACER (6.5X9X41.3)
$6.13¢3 065
1
#29
09161-09005
WASHER (8.7X16X5)
$2.79¢1 397
1
#30
11371-24B01
COVER, GEAR SHIFT
$123.74¢61 870
1
#31
11485-24B20
GASKET, GEAR SHIFT COVER
$9.14¢4 571
1
#32
04211-09109
PIN
$1.97¢983
1
#33
01547-0616A
BOLT
$2.42¢1 208
1
#34
01547-0630A
BOLT
$2.77¢1 386
1
#35
01547-0635A
BOLT
$2.77¢1 386
1
