FUEL TANK YSF YVZ YWW SV650L7 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

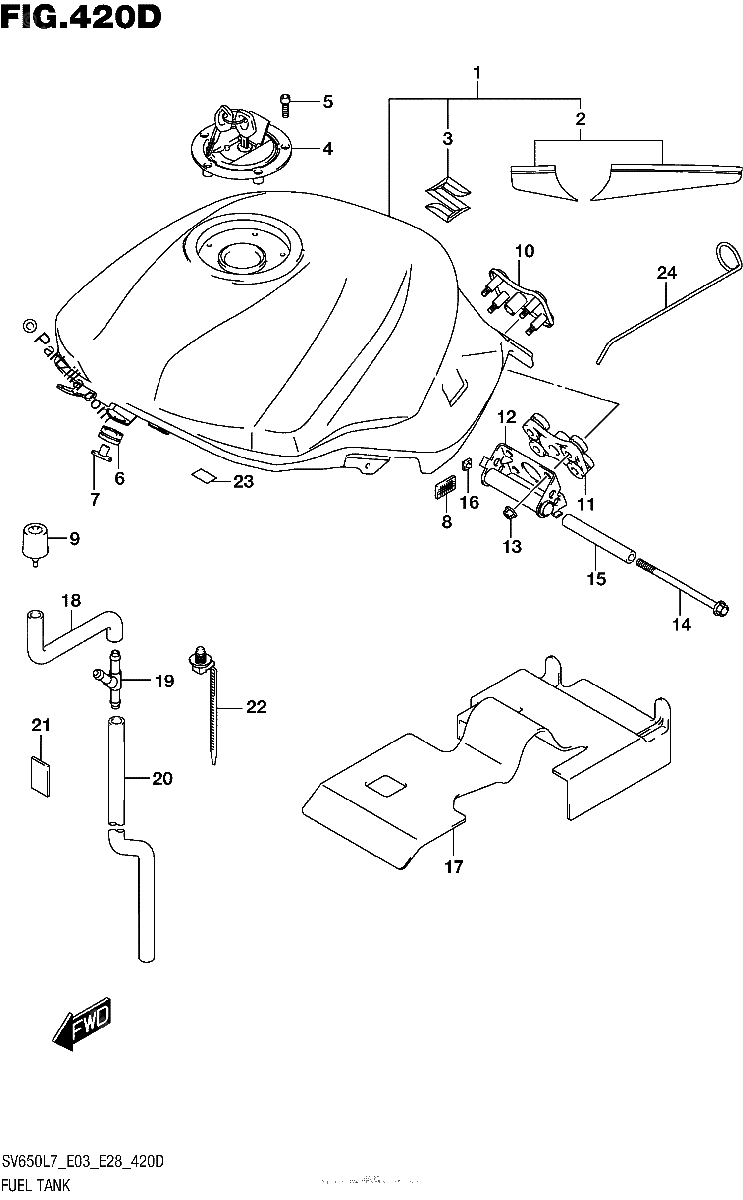

Diagrama de FUEL TANK YSF YVZ YWW SV650L7 E33

Repuestos

#3
68111-47HA0
EMBLEM, in.Sin.
$48.22¢24 112
1
#4
44200-16870
CAP SET, FUEL TANK
$207.88¢103 938
1
#5
44244-11J00
BOLT
$4.90¢2 450
1
#6
44511-18K00
CUSHION, FUEL TANK FRONT
$8.73¢4 363
1
#7
44512-04K00
SPACER, FUEL TANK FRONT
$9.54¢4 769
1
#8
44572-13G00
FASTENER
$13.19¢6 594
1
#9
44542-29G00
CUSHION, FUEL TANK SIDE
$9.46¢4 731
1
#10
44570-16G00
BRACKET, REAR UPPER
No Disponible
1
#1-1
44100-18K50-YSF
TANK ASSY, FUEL (BLUE)
No Disponible
1
#11
44542-16G00
CUSHION, FUEL TANK REAR
$18.60¢9 300
1
#1-2
44100-18K50-YVZ
TANK ASSY, FUEL (RED)
$1410.23¢705 113
1
#12
44530-44H00
BRACKET, FUEL TANK REAR
No Disponible
1
#1-3
44100-18K50-YWW
TANK ASSY, FUEL (WHITE)
$1365.75¢682 875
1
#13
08319-3106A
.NUT
$2.63¢1 313
1
#14
09103-06060
BOLT (6X100)
$3.29¢1 644
1
#15
44561-35F00
SPACER
$17.01¢8 506
1
#16
08318-1106A
NUT
No Disponible
1
#17
44191-18K00
SHEET, HEAT SHIELD RUBBER
$77.29¢38 644
1
#18
44423-18K00
HOSE, FUEL TANK DRAIN NO.1
No Disponible
1
#19
09367-08010
3 WAY
No Disponible
1
#20
44423-18K10
HOSE, FUEL TANK DRAIN NO.2
No Disponible
1
#2-1
68110-18K00-AGQ
.TAPE SET, FUEL TANK | FOR YSF
No Disponible
1
#21
44427-18K10
SHIELD, DRAIN HOSE HEAT
$23.21¢11 606
1
#2-2
68110-18K00-AGS
.TAPE SET, FUEL TANK | FOR YVZ
$67.06¢33 531
1
#22
09407-17403
CLAMP (L:154)
$6.03¢3 013
1
#2-3
68110-18K00-AJP
.TAPE SET, FUEL TANK | FOR YWW
$49.29¢24 644
1
#23
36611-16G00
TAPE, WIRING HARNESS
$4.10¢2 050
1
#24
44560-23H00
STAY, FUEL TANK *{OPT}*
$60.69¢30 344
1
