CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

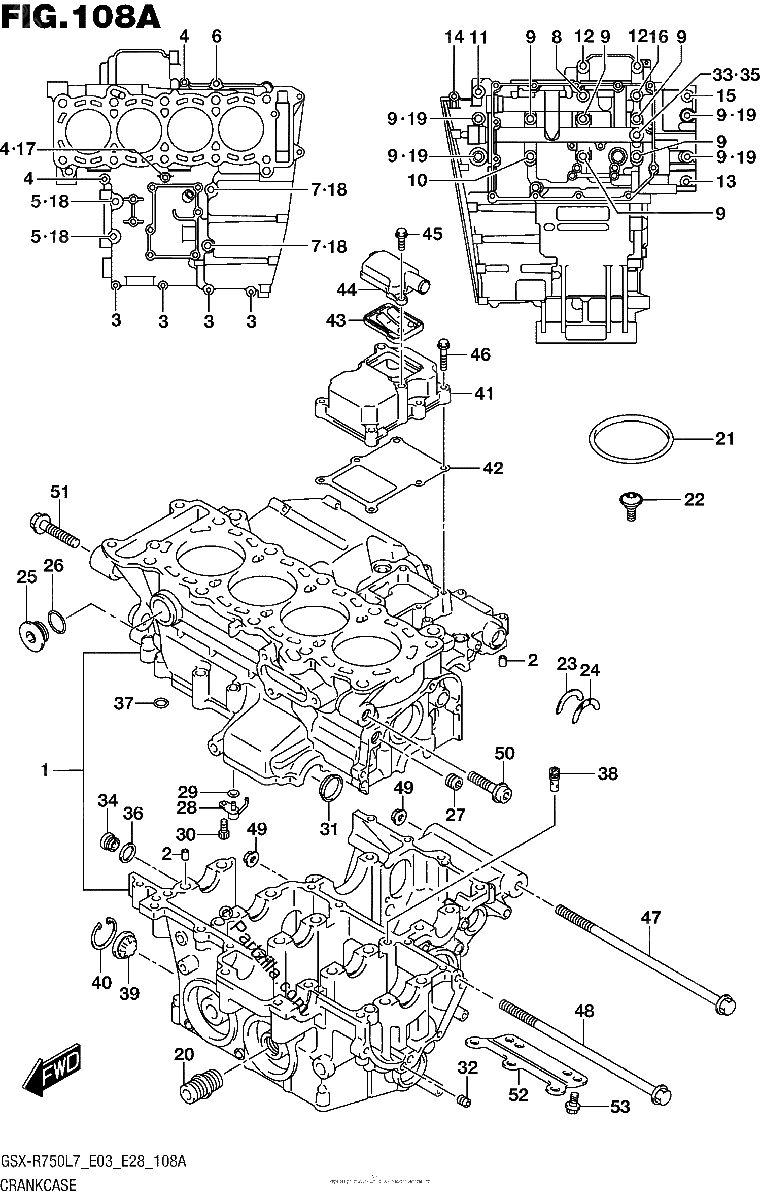

Diagrama de CRANKCASE

Repuestos

#1
11301-15830
CRANKCASE SET
$3047.74¢1 523 871
1
#2
11319-33E50
.PIN, CRANKCASE
$6.00¢3 001
1
#3
01547-0635A
BOLT
$2.77¢1 386
1
#4
01547-0665A
BOLT
$2.81¢1 403
1
#5
01550-0850A
.BOLT
$4.43¢2 214
1
#6
01550-0860A
.BOLT
$5.04¢2 519
1
#7
01550-0875A
.BOLT
$3.90¢1 949
1
#8
09103-08097
.BOLT (8X105)
$3.78¢1 892
1
#9
09103-09012
.BOLT (9X95)
$9.48¢4 738
1
#10
09103-09014
.BOLT (9X80)
$12.19¢6 095
1
#11
01550-0855A
.BOLT
$3.36¢1 679
1
#12
09103-08339
BOLT (8X55)
$3.83¢1 915
1
#13
01547-0630A
BOLT
$2.77¢1 386
1
#14
01547-0645A
BOLT
$2.91¢1 455
1
#15
01550-0865A
.BOLT
$3.85¢1 926
1
#16
01550-0885A
.BOLT
$5.04¢2 519
1
#17
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#18
09168-08016
.GASKET (8.2X14X1)
$1.97¢983
1
#19
09168-10031
.GASKET (10.2X20X2.3)
$2.42¢1 208
1
#20
16591-06B01
.UNION, OIL FILTER STAND
$7.73¢3 864
1
#21
09280-00043
.O RING (D:1.9,ID:99.5) | DRIVE SHAFT BEARING
$45.52¢22 758
1
#22
09139-06151
.BOLT (6X20) | DRIVE SHAFT BEARING
$4.98¢2 490
1
#23
12228-17E00-0D0
.BEARING, THRUST LH (GREEN)
$10.73¢5 365
1
#25
11318-35F00
.PLUG, WATER JACKET
$20.84¢10 419
1
#26
09280-20002
.O RING (D:3.1,ID:19.4)
$2.29¢1 144
1
#27
11329-02F00
JET, OIL GALLERY
$8.34¢4 169
1
#28
11390-35F00
JET, PISTON COOLING
$27.42¢13 708
1
#29
09280-04004
O RING (D:1.2,ID:4)
$2.04¢1 018
1
#30
09106-06075
BOLT (6X12)
$2.99¢1 495
1
#31
09241-26004
PLUG
$8.91¢4 456
1
#32
09246-05006
PLUG
$5.14¢2 570
1
#33
09248-12004
PLUG (L:12)
$9.60¢4 801
1
#34
09248-16013
PLUG
$5.28¢2 639
1
#35
09168-12002
GASKET (12.1X16.2X3.7)
$1.90¢949
1
#36
09168-16002
GASKET (16X22X2)
$2.27¢1 133
1
#37
09280-08012
O RING (D:1.9,ID:7.8)
$3.98¢1 989
1
#38
09493-28012
JET (140)
$20.38¢10 189
1
#39
09103-06188
BOLT (6X10)
$3.51¢1 754
1
#39
11971-33210
.LENS, OIL LEVEL CHECK
$19.96¢9 982
1
#40
08331-4130A
CIRCLIP
$3.28¢1 639
1
#41
11371-01H00
COVER, BREATHER
No Disponible
1
#42
11484-01H00
GASKET, BREATHER COVER
$6.72¢3 358
1
#43
13150-01H01
VALVE ASSY, BREATHER REED
$86.82¢43 412
1
#44
11372-01H00
COVER, VALVE
No Disponible
1
#45
01547-0616A
BOLT
$2.42¢1 208
1
#46
01547-0630A
BOLT
$2.77¢1 386
1
#47
09103-10041-A05
BOLT (10X215)
$11.24¢5 618
1
#48
09103-10145
BOLT (10X205)
$18.76¢9 378
1
#49
09159-10115
NUT
$3.85¢1 926
1
#50
09106-10069
BOLT (10X45)
$4.58¢2 289
1
#51
09106-10070
BOLT (10X55)
$4.58¢2 289
1
#52
11322-01H00
PLATE, LOWER
$15.93¢7 964
1
#24-1
12228-17E00-0A0
.BEARING, THRUST LH (RED)
$14.14¢7 073
1
#24-2
12228-17E00-0B0
.BEARING, THRUST LH (BLACK)
$10.92¢5 462
1
#24-3
12228-17E00-0C0
.BEARING, THRUST LH (BLUE)
$10.92¢5 462
1
#24-4
12228-17E00-0D0
.BEARING, THRUST LH (GREEN)
$10.73¢5 365
1
#24-5
12228-17E00-0E0
.BEARING, THRUST LH (YELLOW)
$14.14¢7 073
1
#24-6
12228-17E00-0F0
.BEARING, THRUST LH (WHITE)
$14.41¢7 205
1
