CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

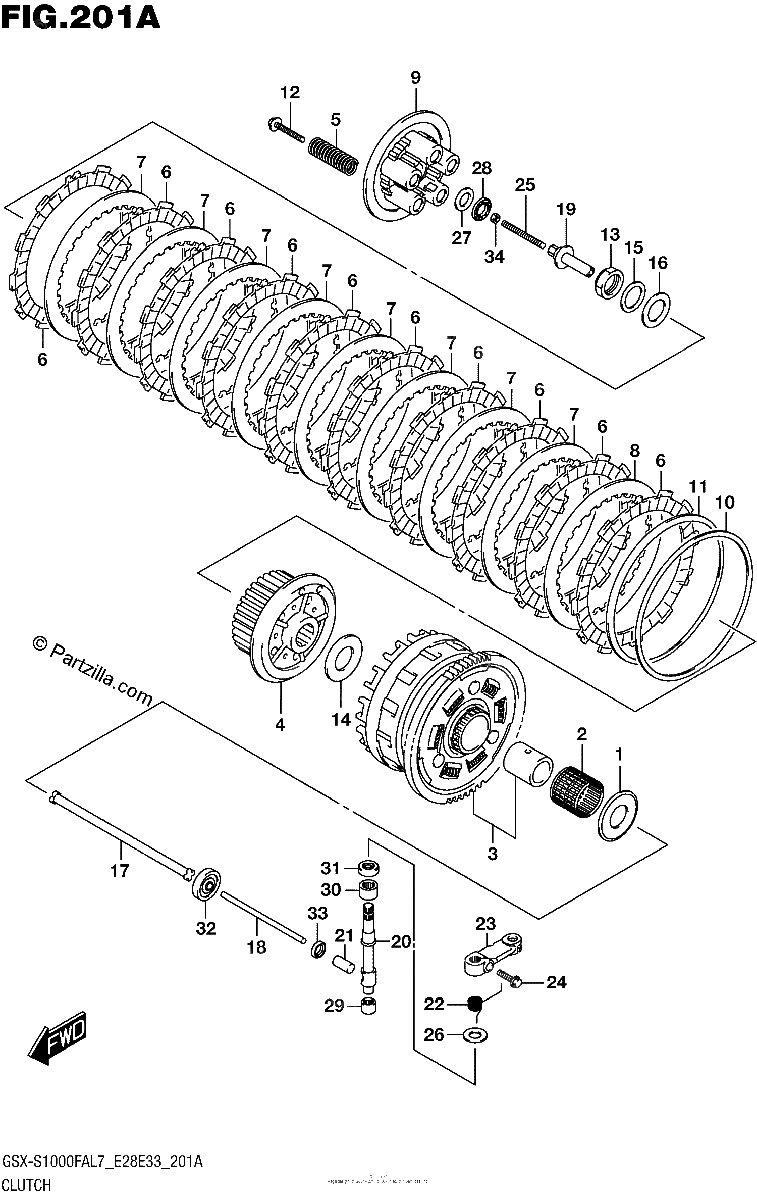

Diagrama de CLUTCH

Repuestos

#1
09160-25073
WASHER (25X54X2.4)
$19.03¢9 513
1
#2
09263-35017
BEARING (35X40X35.8)
$48.35¢24 175
1
#3
21200-40880
GEAR ASSY, PRIMARY DRIVEN (NT:73)
$695.71¢347 856
1
#4
21410-40F01
HUB, CLUTCH SLEEVE
$152.10¢76 050
1
#5
21413-04K00
SPRING, CLUTCH
$12.59¢6 294
1
#6
21441-40F20
PLATE, CLUTCH DRIVE (T:2.8)
$32.02¢16 013
1
#7
21451-40F00
PLATE, CLUTCH DRIVEN NO.1 (T:2.3)
$14.56¢7 281
1
#8
21451-40F30
PLATE, CLUTCH DRIVEN NO.4 (T:2.3)
$15.85¢7 925
1
#9
21462-40F00
DISC, CLUTCH PRESSURE
$86.53¢43 263
1
#10
21471-40F00
SEAT, WAVE WASHER
$17.59¢8 794
1
#11
21472-40F00
WASHER, CLUTCH PLATE WAVE
$24.06¢12 031
1
#12
21412-04K00
BOLT, CLUTCH SPRING
$5.13¢2 563
1
#13
09159-24010
NUT
$15.53¢7 763
1
#14
09160-25056
WASHER (25X50X2.5)
$13.85¢6 925
1
#15
09164-24008
WASHER
$6.04¢3 019
1
#16
09181-25223
SHIM (25X38X1)
$3.77¢1 888
1
#17
23110-38B00
ROD, CLUTCH PUSH RH
$27.65¢13 825
1
#18
23111-05A01
ROD, CLUTCH PUSH, LH
$16.86¢8 431
1
#19
23121-41G00
PIECE, CLUTCH PUSH
$66.16¢33 081
1
#20
23122-41G00
CAMSHAFT, CLUTCH RELEASE
$76.81¢38 406
1
#21
23123-41G00
CAP, CLUTCH PUSH ROD
$13.04¢6 519
1
#22
23125-41G00
SPRING, CLUTCH RELEASE RETURN
$3.88¢1 938
1
#23
23271-41G00
ARM, CLUTCH RELEASE
$63.46¢31 731
1
#24
09103-06223
BOLT (6X20)
$3.24¢1 619
1
#25
09134-06015
SCREW (6X73)
$8.09¢4 044
1
#26
09160-10020
WASHER (10.5X24X1)
$2.42¢1 213
1
#27
09160-15045
WASHER (15.5X28X1)
$4.58¢2 288
1
#28
09263-15003
BEARING (15X28X2)
$9.75¢4 875
1
#29
09263-10014
BEARING (10X14X10)
$15.90¢7 950
1
#30
09263-12027
BEARING (12X18X12)
$8.59¢4 294
1
#31
09282-10012
OIL SEAL (10X20X6)
$9.38¢4 688
1
#32
09283-06010
OIL SEAL (6X34X10.5)
$19.75¢9 875
1
#33
09285-10004
OIL SEAL (10X17X5)
$3.96¢1 981
1
#34
08310-0006A
NUT
$2.39¢1 194
1
