THROTTLE BODY VL800L7 E28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

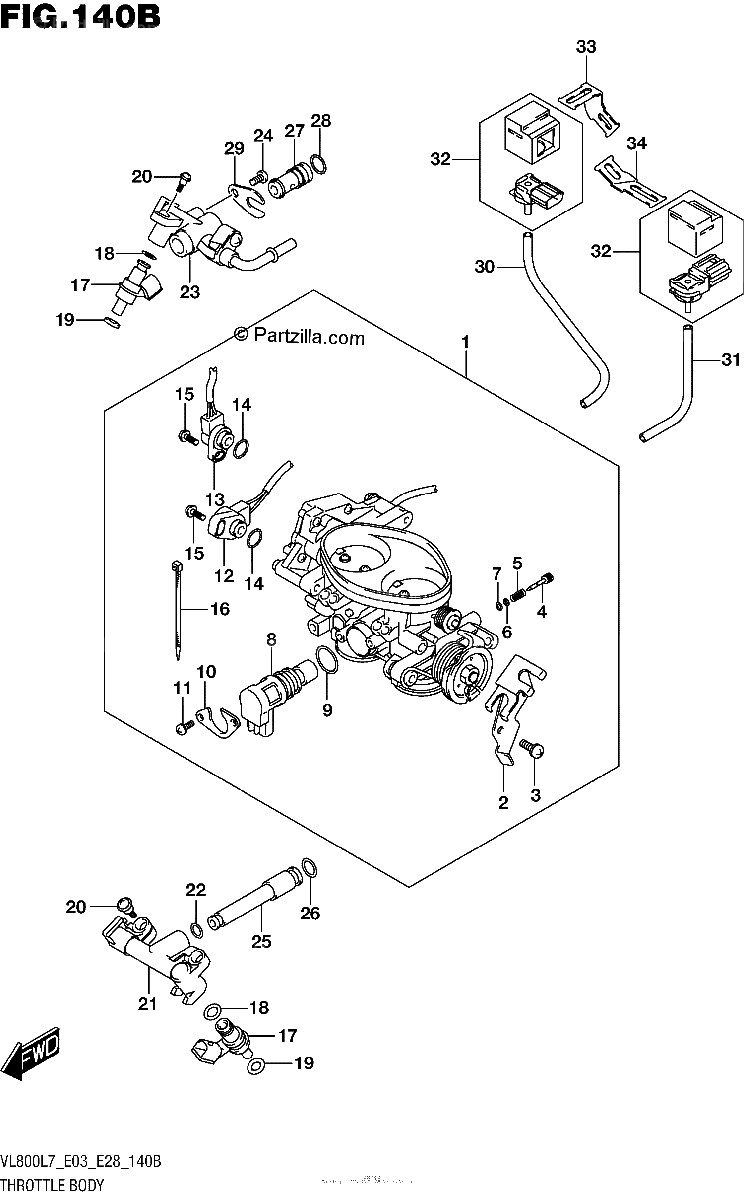

Diagrama de THROTTLE BODY VL800L7 E28

Repuestos

#1
13401-41F22
BODY, ASSY THROTTLE
$834.65¢417 323
1
#2
13565-41F20
.PLATE, STAY
No Disponible
1
#3
13601-21H00
.SCREW
No Disponible
1
#4
13269-18G00
.SCREW, AIR ADJUST
$14.70¢7 348
1
#5
13271-43E00
.SPRING
No Disponible
1
#6
13291-26E00
.WASHER
$3.36¢1 679
1
#7
13295-26E00
.O RING
$4.76¢2 380
1
#8
18117-15H12
.VALVE ASSY, ISC
$446.43¢223 215
1
#9
18119-05H00
.O RING
$4.91¢2 455
1
#10
13428-15H00
.PLATE, ISC VALVE
No Disponible
1
#11
13605-15H00
.SCREW
$8.83¢4 416
1
#12
13580-40F21
.SENSOR ASSY, THROTTLE NO.1
$301.21¢150 604
1
#13
13580-41F01
.SENSOR ASSY, THROTTLE SUB
$168.90¢84 450
1
#14
13575-40F00
.O RING
$4.61¢2 306
1
#15
13605-40F00
.SCREW
$4.19¢2 093
1
#16
09407-14407
CLAMP (L:145)
$3.36¢1 679
1
#17
15710-26GB0
INJECTOR ASSY
$318.20¢159 103
1
#18
15721-21H00
O RING
$9.96¢4 980
1
#19
15722-21H00
O RING
$12.34¢6 170
1
#20
13602-34F50
SCREW, THROTTLE COVER
$3.51¢1 754
1
#21
13473-41FA0
PIPE SET, FUEL FR
$95.77¢47 886
1
#22
15721-24F00
O RING
$9.96¢4 980
1
#23
13473-41FB0
PIPE SET, FUEL RR
$128.97¢64 486
1
#24
13602-10F10
SCREW
$4.60¢2 300
1
#25
13473-41FC0
JOINT
$16.90¢8 452
1
#26
15721-10G00
O RING
$9.96¢4 980
1
#27
13474-41F20
PLUG, STRAIGHT
$8.54¢4 272
1
#28
15721-41F20
O RING
$27.80¢13 898
1
#29
13475-41F20
PLATE, STAY
$6.92¢3 461
1
#30
13683-41FA0
HOSE
$29.15¢14 576
1
#31
13683-41FD0
TUBE, RUBBER
No Disponible
1
#32
18590-32G00
SENSOR, PRESSURE
$366.88¢183 442
1
#33
18598-41F00
BRACKET, BOOST SENSOR FR
No Disponible
1
#34
18599-39G00
BRACKET, BOOST SENSOR RR
No Disponible
1
