GEAR CHANGE MECHANISM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

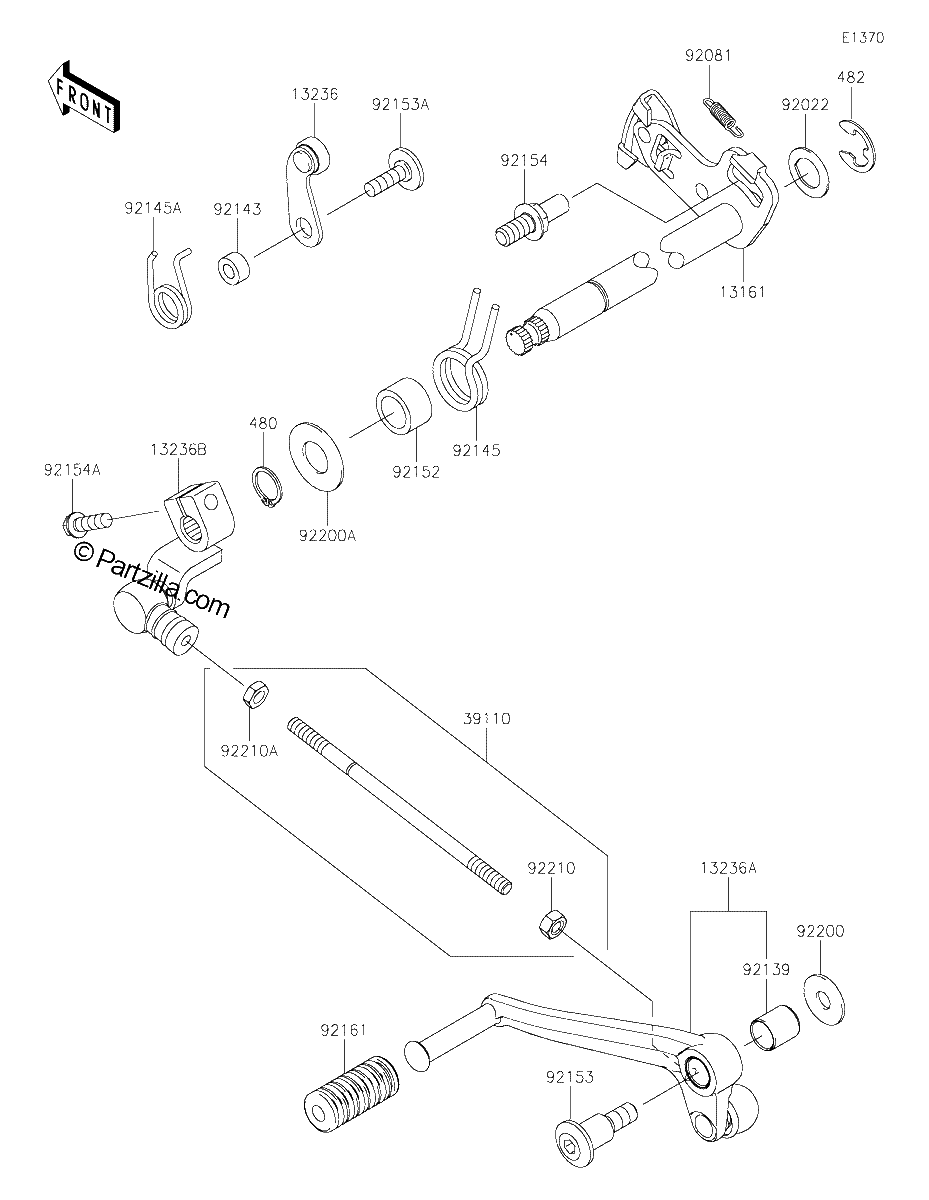

Diagrama de GEAR CHANGE MECHANISM

Repuestos

#480
480J1400
CIRCLIP-TYPE-C,14MM
$4.57¢2 283
1
#482
482J0200
CIRCLIP-TYPE-E,12MM
$3.79¢1 897
1
#13161
13161-0592
LEVER-COMP-CHANGE SHAFT
$97.66¢48 829
1
#13236
13236-0068
LEVER-COMP
$13.20¢6 601
1
#13236B
13236-0815
LEVER-COMP,ENGINE SIDE
$62.32¢31 159
1
#13236A
13236-0808
LEVER-COMP,CHANGE PEDAL
$94.43¢47 213
1
#39110
39110-0044
ROD-ASSY-TIE
$24.30¢12 150
1
#92022
92022-1628
WASHER,CHANGE SHAFT
$6.15¢3 076
1
#92081
92081-1708
SPRING,PAWL RETURN
$6.09¢3 048
1
#92139
92139-0023
BUSHING
$3.36¢1 679
1
#92143
92143-1595
COLLAR
$9.92¢4 962
1
#92145
92145-1122
SPRING
$10.10¢5 048
1
#92145A
92145-1872
SPRING,GEAR POSITION
$7.83¢3 916
1
#92152
92152-1383
COLLAR,14.2X19.9X12.0
$3.83¢1 915
1
#92153A
92153-1505
BOLT,6X20
$8.20¢4 100
1
#92153
92153-0446
BOLT,SOCKET,8X16.7
$9.22¢4 611
1
#92154A
92154-2632
BOLT,FLANGED-SMALL,6X20
$1.79¢897
1
#92154
92154-1838
BOLT,RETURN SPRING
$9.49¢4 744
1
#92161
92161-2389
DAMPER,CHANGE PEDAL
$5.57¢2 783
1
#92200A
92200-0265
WASHER
$2.22¢1 110
1
#92200
92200-0174
WASHER,8.0X22.0X1.5
$2.22¢1 110
1
#92210
92210-1566
NUT,6MM
$1.95¢977
1
#92210A
92210-1567
NUT,LEFT HANDED,6MM
$1.95¢977
1
