CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

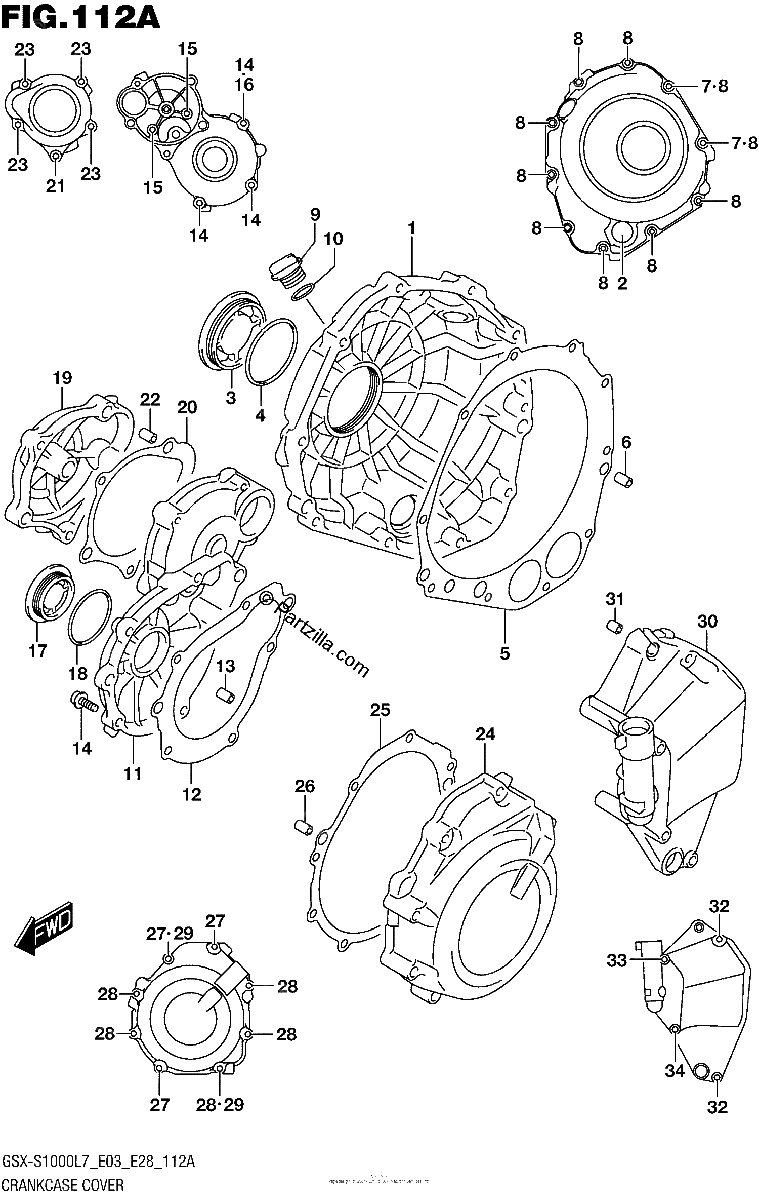

Diagrama de CRANKCASE COVER

Repuestos

#1
11340-04K00
COVER, CLUTCH
$299.25¢149 627
1
#2
11971-33210
.LENS, OIL LEVEL CHECK
$19.96¢9 982
1
#3
11342-41G10
CAP, CLUTCH RELEASE ADJUST
$27.47¢13 737
1
#4
31156-17E00
O RING
$5.05¢2 524
1
#5
11482-40F10
GASKET, CLUTCH COVER
$17.22¢8 608
1
#6
04211-09189
PIN
$1.97¢983
1
#7
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#8
09103-06213
BOLT (6X30)
$2.93¢1 466
1
#10
09280-17003
O RING (D:3.1,ID:16.8)
$1.97¢983
1
#11
11381-04K00
COVER, STARTER CLUTCH
$211.74¢105 869
1
#12
11491-33E02
GASKET, STARTER CLUTCH COVER
$9.58¢4 790
1
#13
04211-09149
PIN
$1.97¢983
1
#14
09103-06212
BOLT (6X25)
$2.93¢1 466
1
#15
09103-06214
BOLT (6X35)
$2.98¢1 489
1
#16
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#17
09259-36021
PLUG
$14.93¢7 464
1
#18
09280-33004
O RING (D:3.1,ID:32.7)
$2.69¢1 346
1
#19
11382-04K00
CAP, STARTER IDLE GEAR
$60.57¢30 285
1
#20
11492-04K00
GASKET
$7.91¢3 956
1
#21
09103-06261
BOLT (6X60)
$3.47¢1 737
1
#22
04211-09149
PIN
$1.97¢983
1
#23
09103-06214
BOLT (6X35)
$2.98¢1 489
1
#24
11351-04K00
COVER, MAGNETO
$174.97¢87 486
1
#25
11483-18G00
GASKET, MAGNETO COVER
$12.13¢6 066
1
#26
04211-09149
PIN
$1.97¢983
1
#27
09103-06213
BOLT (6X30)
$2.93¢1 466
1
#28
09103-06215
BOLT (6X40)
$3.35¢1 673
1
#29
09168-06023
GASKET (5.8X13X1.2)
$2.42¢1 208
1
#30
11361-04K00
COVER, ENGINE SPROCKET
$223.31¢111 654
1
#31
04211-09129
PIN
$1.97¢983
1
#32
09103-06216
BOLT (6X55)
$3.31¢1 656
1
#33
09103-06227
BOLT (6X95)
$5.04¢2 519
1
#34
09103-06263
BOLT (6X80)
$4.71¢2 357
1
#9-1
11971-25D00
PLUG, ENGINE OIL FILLER
$5.60¢2 800
1
#9-2
11971-17E70
PLUG, ENGINE OIL FILLER
No Disponible
1
