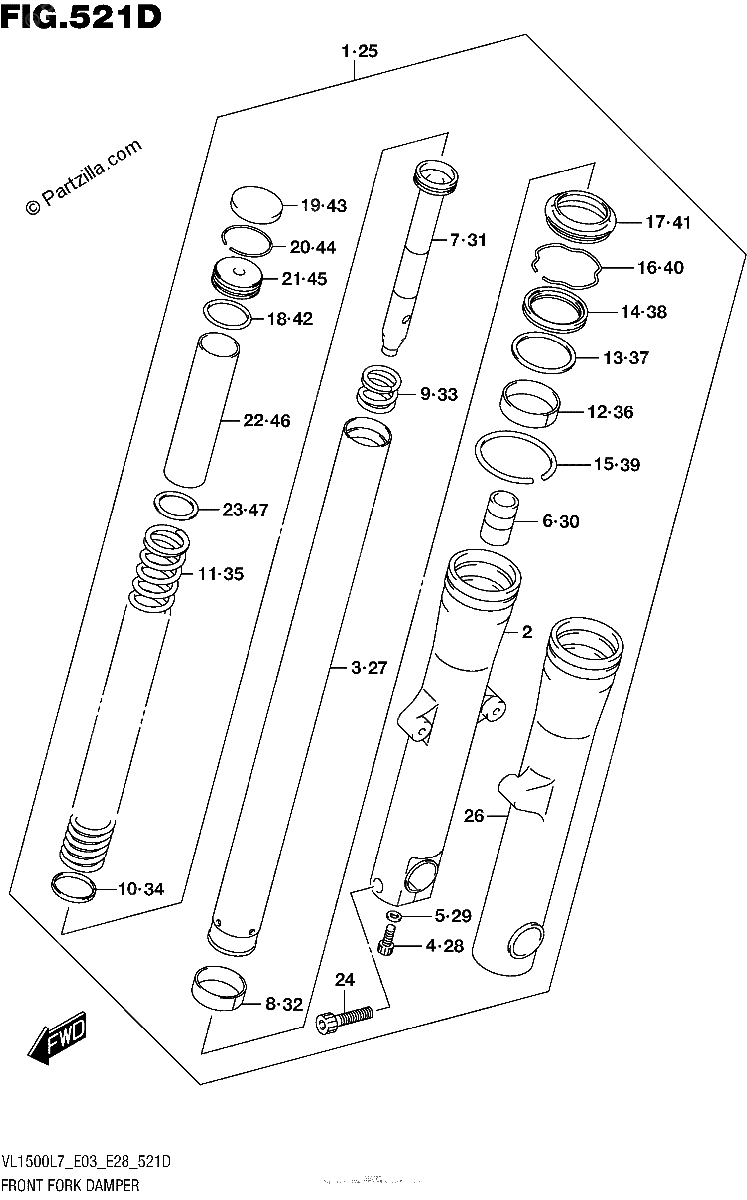

FRONT FORK DAMPER VL1500BTL7 E28
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
$1340.85¢670 425
#2
.TUBE, OUTER RH
No Disponible
#3
.TUBE, INNER
$714.71¢357 356
#4
.BOLT
$8.09¢4 044
#5
.GASKET
$4.25¢2 125
#6
.PIECE, OIL LOCK
$40.79¢20 394
#7
.CYLINDER
No Disponible
#8
.BUSH, SLIDE
$17.38¢8 688
#9
.SPRING, REBOUND
No Disponible
#10
.RING, PISTON
No Disponible
#11
.SPRING
No Disponible
#12
.GUIDE, BUSH
$22.29¢11 144
#13
.SPACER, SEAL
$11.53¢5 763
#14
.OIL SEAL
$38.71¢19 356
#15
.GUIDE, CASE
No Disponible
#16
.RING, OIL SEAL STOPPER
$6.38¢3 188
#17
.DUST SEAL
$26.59¢13 294
#18
.O RING
$6.47¢3 238
#19
.CAP, FORK
$14.54¢7 269
#20
.STOPPER, RING
No Disponible
#21
.SEAT, SPRING
No Disponible
#22
.SPACER, SPRING
No Disponible
#23
.SEAT, SPRING, LOWER
$10.19¢5 094
#24
.BOLT | RH
$12.44¢6 219
#25
DAMPER ASSY, FRONT FORK LH
$1679.23¢839 613
#26
.TUBE, OUTER LH
$847.02¢423 513
#27
.TUBE, INNER
$714.71¢357 356
#28
.BOLT
$8.09¢4 044
#29
.GASKET
$4.25¢2 125
#30
.PIECE, OIL LOCK
$40.79¢20 394
#31
.CYLINDER
No Disponible
#32
.BUSH, SLIDE
$17.38¢8 688
#33
.SPRING, REBOUND
No Disponible
#34
.RING, PISTON
No Disponible
#35
.SPRING
No Disponible
#36
.GUIDE, BUSH
$22.29¢11 144
#37
.SPACER, SEAL
$11.53¢5 763
#38
.OIL SEAL
$38.71¢19 356
#39
.GUIDE, CASE
No Disponible
#40
.RING, OIL SEAL STOPPER
$6.38¢3 188
#41
.DUST SEAL
$26.59¢13 294
#42
.O RING
$6.47¢3 238
#43
.CAP, FORK
$14.54¢7 269
#44
.STOPPER, RING
No Disponible
#45
.SEAT, SPRING
No Disponible
#46
.SPACER, SPRING
No Disponible
#47
.SEAT, SPRING, LOWER
$10.19¢5 094
