REAR COMBINATION LAMP GSX1300RAL7 E33

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

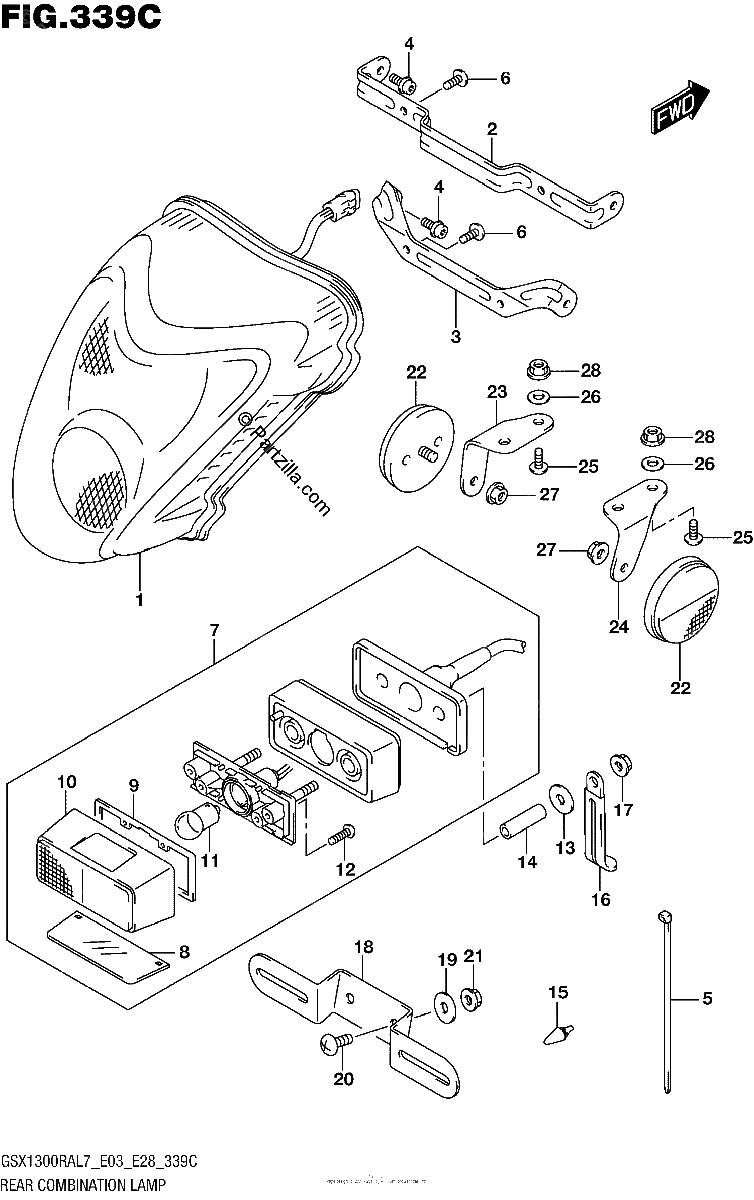

Diagrama de REAR COMBINATION LAMP GSX1300RAL7 E33

Repuestos

#1
35710-15H30
LAMP ASSY, RR COMBINATION
$500.34¢250 171
1
#2
35726-15H00
BRACKET, RR COMBINATION
$12.28¢6 141
1
#3
35726-15H10
BRACKET, RR COMBINATION
$12.28¢6 141
1
#4
09106-05031
BOLT (5X12)
$3.15¢1 576
1
#5
09407-14407
CLAMP (L:145)
$3.36¢1 679
1
#6
03541-0516A
SCREW
$1.64¢822
1
#7
35910-41G32
LAMP ASSY, LICENSE
$109.86¢54 930
1
#8
35912-41G01
.LENS, LICENSE
$16.50¢8 251
1
#9
35913-41G00
.GASKET
$17.68¢8 838
1
#10
35917-41G00
.COVER, LICENSE LAMP
$43.85¢21 925
1
#11
09471-12058
BULB (12V,5W)
$1.92¢960
1
#12
03211-0416A
.SCREW
$1.71¢857
1
#13
09160-06077
WASHER (6.5X20X1.2)
$2.27¢1 133
1
#14
09180-06356
SPACER (6.5X9X34)
$5.66¢2 829
1
#15
09321-06028
CUSHION
$2.28¢1 138
1
#16
09404-06429
CLAMP (L:45)
$2.14¢1 070
1
#17
08316-1006A
NUT
$2.62¢1 311
1
#18
35927-15H00
BRACKET, LICENSE PLATE
$19.18¢9 591
1
#19
09160-06077
WASHER (6.5X20X1.2)
$2.27¢1 133
1
#20
02142-0616A
SCREW
$1.64¢822
1
#21
08316-1006A
NUT
$2.62¢1 311
1
#22
35970-14A20
REFLECTOR ASSY, REAR SIDE
$17.05¢8 527
1
#23
35975-15H00
BRACKET, REAR SIDE REAR, RH
$11.59¢5 796
1
#24
35976-15H00
BRACKET, REAR SIDE REAR, LH
$11.59¢5 796
1
#25
02142-0612A
SCREW
$1.64¢822
1
#26
09160-06126
WASHER (6.5X14X2)
$2.30¢1 150
1
#27
08316-1005A
NUT
$2.62¢1 311
1
#28
08316-1006A
NUT
$2.62¢1 311
1
