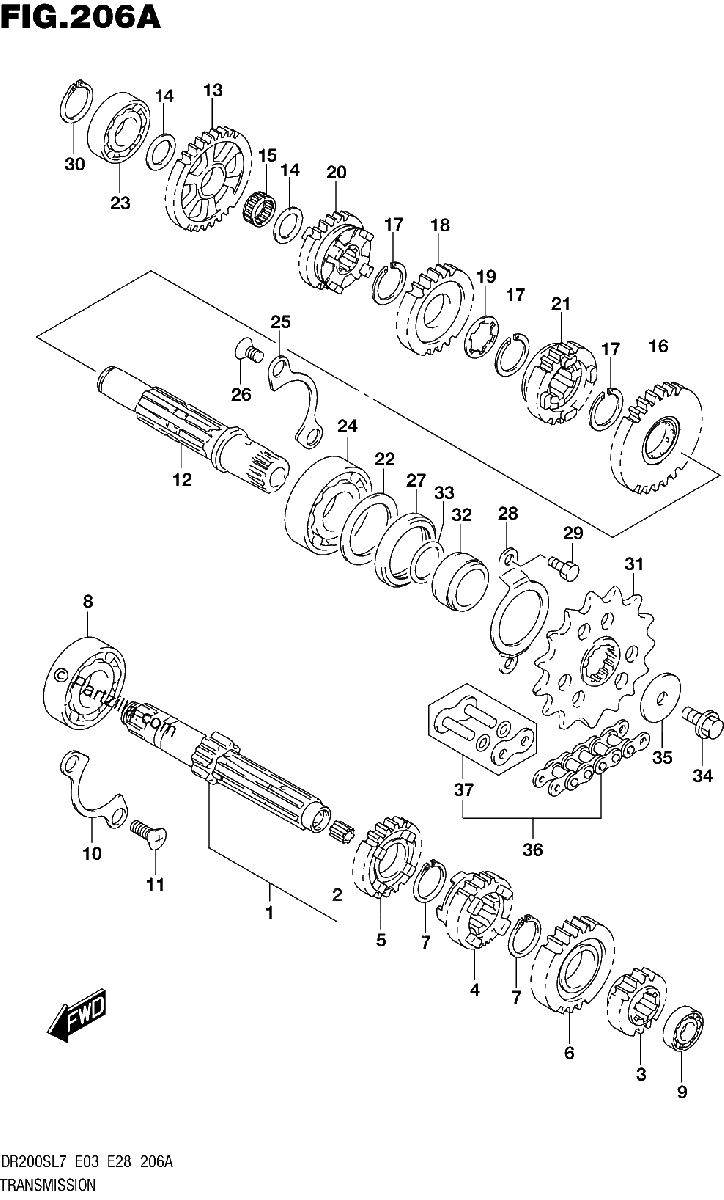

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SHAFT, COUNTER (NT:11)
No Disponible
#2
.BUSH
$8.63¢4 313
#3
GEAR, 2ND DRIVE (NT:15)
No Disponible
#4
GEAR, 3RD DRIVE (NT:16)
No Disponible
#5
GEAR, 4TH DRIVE (NT:21)
No Disponible
#6
GEAR, 5TH DRIVE (NT:23)
No Disponible
#7
CIRCLIP
$2.60¢1 300
#8
BEARING (20X47X14) | RH
$27.36¢13 681
#9
BEARING | LH
$30.56¢15 281
#10
RETAINER, DRIVE SHAFT BEARING
No Disponible
#11
SCREW (6X12)
$2.63¢1 313
#12
SHAFT, DRIVE
$116.86¢58 431
#13
GEAR, 1ST DRIVEN (NT:33)
$156.28¢78 138
#14
SHIM (17X26X1)
$3.65¢1 825
#15
BEARING (17X21X9.8)
$15.79¢7 894
#16
GEAR, 2ND DRIVEN (NT:29)
$129.90¢64 950
#17
CIRCLIP
$3.65¢1 825
#18
GEAR, 3RD DRIVEN (NT:23)
No Disponible
#19
LOCK WASHER
$3.85¢1 925
#20
GEAR, 4TH DRIVEN (NT:23)
No Disponible
#21
GEAR, 5TH DRIVEN (NT:21)
No Disponible
#22
WASHER, OIL SEALING
$5.88¢2 938
#23
BEARING (17X36X12) | RH
$56.46¢28 231
#24
BEARING (22X50X14) | RH
$33.60¢16 800
#25
RETAINER, DRIVE SHAFT BEARING
No Disponible
#26
SCREW (6X12)
$2.63¢1 313
#27
OIL SEAL (30X40X6)
$10.86¢5 431
#28
RETAINER, DRIVE SHAFT OIL SEA
$6.10¢3 050
#29
.BOLT
$2.94¢1 469
#30
CIRCLIP
$2.45¢1 225
#31
SPROCKET, ENGINE (NT:15)
$66.71¢33 356
#32
SPACER, ENGINE SPROCKET
$31.15¢15 575
#33
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.46¢1 231
#34
BOLT | FRONT
$3.01¢1 506
#35
WASHER
$3.65¢1 825
#36
CHAIN ASSY, DRIVE (DID520VC5)
$317.88¢158 938
#37
.JOINT SET, CHAIN
$21.60¢10 800
