REAR SHOCK ABSORBER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

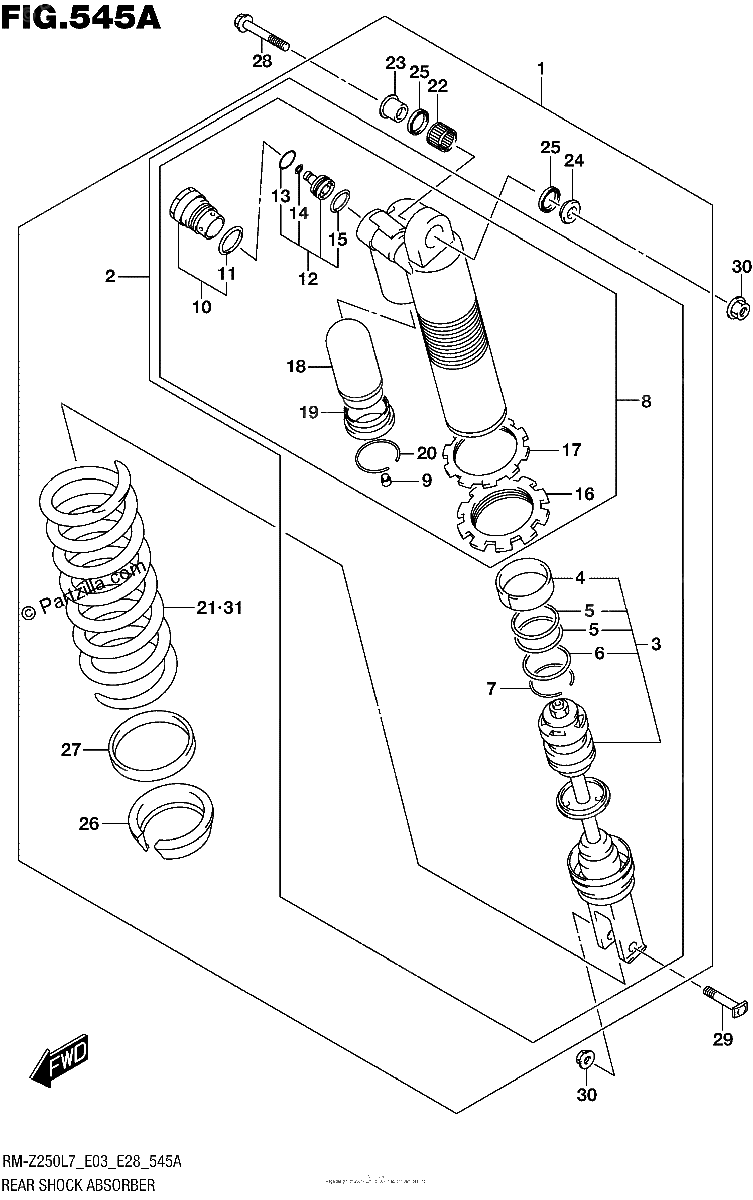

Diagrama de REAR SHOCK ABSORBER

Repuestos

#1
62100-49HF0-019
ABSORBER ASSY, RR SHOCK (BLACK)
$1415.96¢707 980
1
#2
62210-49HF0
.DAMPER ASSY
No Disponible
1
#3
62120-49HE0
.ROD SUBASSY, PISTON
No Disponible
1
#4
62131-49HE0
..RING, PISTON
$38.43¢19 217
1
#5
62152-49HE0
..O RING
$5.04¢2 519
1
#6
62153-49HE0
..O RING
$5.04¢2 519
1
#7
62279-49HE0
.RING, STOP
$2.61¢1 305
1
#8
62160-49HE0
..CYLINDER
No Disponible
1
#9
51294-40400
.CAP, VALVE AIR
$10.09¢5 043
1
#10
62130-49HE0
.VALVE ASSY
No Disponible
1
#11
62133-49HE0
..O RING
$5.52¢2 760
1
#12
62170-49HE0
.VALVE, COMP
No Disponible
1
#13
62135-49HE0
..WASHER
$2.61¢1 305
1
#14
62136-49HE0
..O RING
$2.47¢1 236
1
#15
62134-49HE0
..O RING
$3.48¢1 742
1
#16
62191-49HE0
.GUIDE, SPRING
$26.89¢13 443
1
#17
62194-49HE0
.NUT
$20.72¢10 362
1
#18
62273-49HE0
..BLADER
$38.43¢19 217
1
#19
62275-49HE0
..GUIDE
$63.56¢31 780
1
#20
62277-49HE0
.RING, STOP
$3.48¢1 742
1
#21
62211-49HE0
.SPRING | (STD K=5.5)
No Disponible
1
#22
09263-16033
.BEARING (16X22X12)
$21.91¢10 954
1
#23
62684-36F00
.SPACER, UPPER BEARING RH
$28.66¢14 329
1
#24
62685-36F00
.SPACER, UPPER BEARING LH
$18.97¢9 487
1
#25
09284-16005
.OIL SEAL (16X22X2.5)
$7.51¢3 755
1
#26
62222-49HE0
.GUIDE SPRING
$19.29¢9 643
1
#27
62221-49HE0
.GUIDE SPRING
$69.00¢34 500
1
#28
62311-28H00
BOLT, RR SHOCK ABSORBER UPR
$12.22¢6 112
1
#29
62221-37F30
BOLT, RR SHOCK ABSORBER LWR
$9.29¢4 646
1
#30
09159-10067
NUT
$6.70¢3 352
1
#31-1
62211-49HG0
SPRING, REAR | OPT
No Disponible
1
#31-2
62211-49HH0
SPRING, REAR | OPT
No Disponible
1
#31-3
62211-49HJ0
SPRING, REAR | OPT
No Disponible
1
