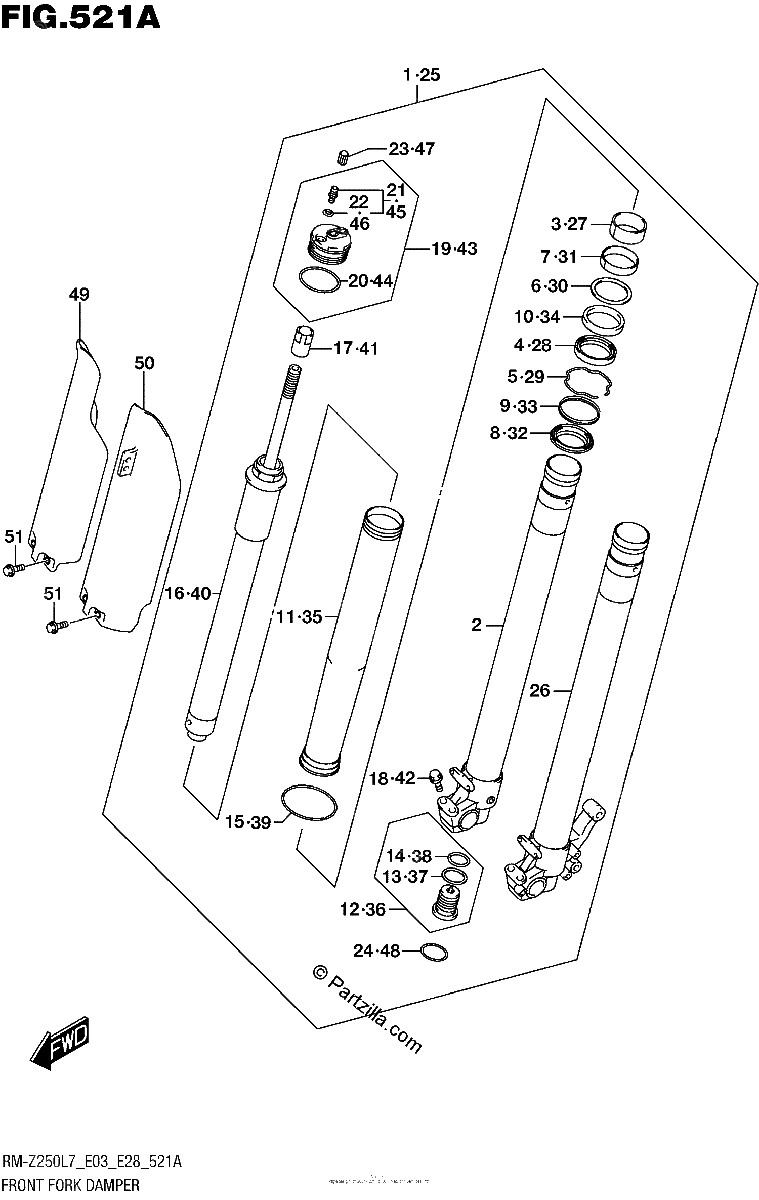

FRONT FORK DAMPER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
DAMPER ASSY, FRONT FORK RH
No Disponible
#2
.TUBE, INNER RH
$491.29¢245 644
#3
.PISTON
$44.23¢22 113
#4
.SEAL, OIL
$32.77¢16 388
#5
.RING, OIL SEAL STOPPER
$7.65¢3 825
#6
.WASHER
$4.34¢2 169
#7
.METAL, SLIDE
$28.91¢14 456
#8
.SEAL, DUST
$22.35¢11 175
#9
.SCRAPER
$21.68¢10 838
#10
.COLLAR
$13.00¢6 500
#11
.TUBE, OUTER
No Disponible
#12
.ADJUSTER
No Disponible
#13
..GASKET
$4.94¢2 469
#14
.O RING (D:2.4,ID:17.8)
$6.08¢3 038
#15
RING,SNAP
$8.73¢4 363
#16
.CYLINDER
$883.44¢441 719
#17
..NUT
$36.78¢18 388
#18
BOLT
$6.65¢3 325
#19
.CAP
$376.85¢188 425
#20
.O RING
$3.75¢1 875
#21
..VALVE ASSY, AIR
$12.63¢6 313
#22
...O RING (D:1.9,ID:5.7)
$1.89¢944
#23
.CAP
$9.94¢4 969
#24
.RING, STOPPER
No Disponible
#25
DAMPER ASSY, FRONT FORK LH
$2149.04¢1 074 519
#26
.TUBE, INNER LH
$491.29¢245 644
#27
.PISTON
$44.23¢22 113
#28
.SEAL, OIL
$32.77¢16 388
#29
.RING, OIL SEAL STOPPER
$7.65¢3 825
#30
.WASHER
$4.34¢2 169
#31
.METAL, SLIDE
$28.91¢14 456
#32
.SEAL, DUST
$22.35¢11 175
#33
.SCRAPER
$21.68¢10 838
#34
.COLLAR
$13.00¢6 500
#35
.TUBE, OUTER
No Disponible
#36
.ADJUSTER
No Disponible
#37
..GASKET
$4.94¢2 469
#38
.O RING (D:2.4,ID:17.8)
$6.08¢3 038
#39
RING,SNAP
$8.73¢4 363
#40
.CYLINDER
$883.44¢441 719
#41
..NUT
$36.78¢18 388
#42
BOLT
$6.65¢3 325
#43
.CAP
$376.85¢188 425
#44
.O RING
$3.75¢1 875
#45
..VALVE ASSY, AIR
$12.63¢6 313
#46
...O RING (D:1.9,ID:5.7)
$1.89¢944
#47
.CAP
$9.94¢4 969
#48
.RING, STOPPER
No Disponible
#49
PROTECTOR, FRONT FORK RH
$78.40¢39 200
#50
PROTECTOR, FRONT FORK LH
$140.04¢70 019
#51
BOLT (6X10)
$3.98¢1 988
