CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

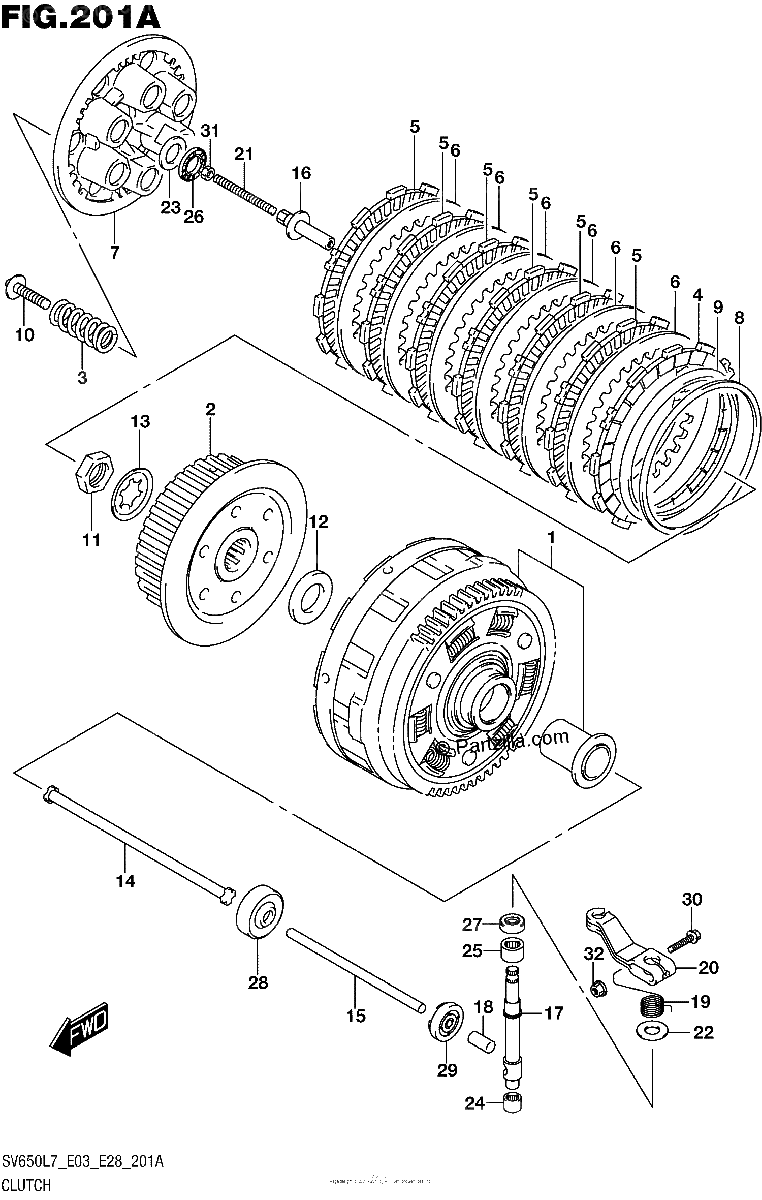

Diagrama de CLUTCH

Repuestos

#1
21200-44860
GEAR ASSY, PRIMARY DRIVEN
$492.03¢246 014
1
#2
21411-44101
HUB, CLUTCH SLEEVE
$82.62¢41 308
1
#3
21413-17G01
SPRING, CLUTCH
$7.36¢3 680
1
#4
21442-29F10
PLATE, CLUTCH DRIVE NO.2
$41.83¢20 913
1
#5
21441-29F30
PLATE, CLUTCH DRIVE (T:3.0)
$31.26¢15 628
1
#6
21451-28C31
PLATE, CLUTCH DRIVEN (T:1.6)
$12.95¢6 474
1
#7
21462-14301
DISC, CLUTCH PRESSURE
$73.69¢36 846
1
#8
21471-17G00
SEAT, WAVE WASHER
$14.60¢7 302
1
#9
21472-17G00
WASHER, CLUTCH PLATE WAVE
$26.31¢13 156
1
#10
09116-06203
BOLT (6X30)
$3.45¢1 725
1
#11
09140-20001
NUT
$3.65¢1 823
1
#12
09160-20067
WASHER (20X36X3)
$11.75¢5 877
1
#13
09167-20009
WASHER
$2.42¢1 208
1
#14
23110-44111
ROD, CLUTCH PUSH RH
$17.78¢8 890
1
#15
23111-15501
ROD, CLUTCH PUSH LH
$14.59¢7 297
1
#16
23121-44H00
PIECE, CLUTCH PUSH
$60.64¢30 320
1
#17
23122-44H00
CAMSHAFT, CLUTCH RELEASE
$78.60¢39 301
1
#18
23123-41G00
CAP, CLUTCH PUSH ROD
$11.99¢5 997
1
#19
23125-41G00
SPRING, CLUTCH RELEASE RETURN
$3.56¢1 783
1
#20
23271-44H20
ARM,CLUTCH RELEASE
$31.82¢15 910
1
#21
09134-06015
SCREW (6X73)
$7.44¢3 720
1
#22
09160-10020
WASHER (10.5X24X1)
$2.23¢1 116
1
#23
09160-15045
WASHER (15.5X28X1)
$4.21¢2 105
1
#24
09263-10014
BEARING (10X14X10)
$14.63¢7 314
1
#25
09263-12027
BEARING (12X18X12)
$7.90¢3 950
1
#26
09263-15003
BEARING (15X28X2)
$8.97¢4 485
1
#27
09282-10012
OIL SEAL (10X20X6)
$8.63¢4 313
1
#28
09283-06008
OIL SEAL (6X34X10.5)
$18.17¢9 085
1
#29
09285-10004
OIL SEAL (10X17X5)
$3.65¢1 823
1
#30
01550-0625A
SCREW
$2.36¢1 179
1
#31
08310-0006A
NUT
$2.20¢1 098
1
#32
08316-1006A
NUT
$2.62¢1 311
1
