FUEL TANK GW250L7 P28

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

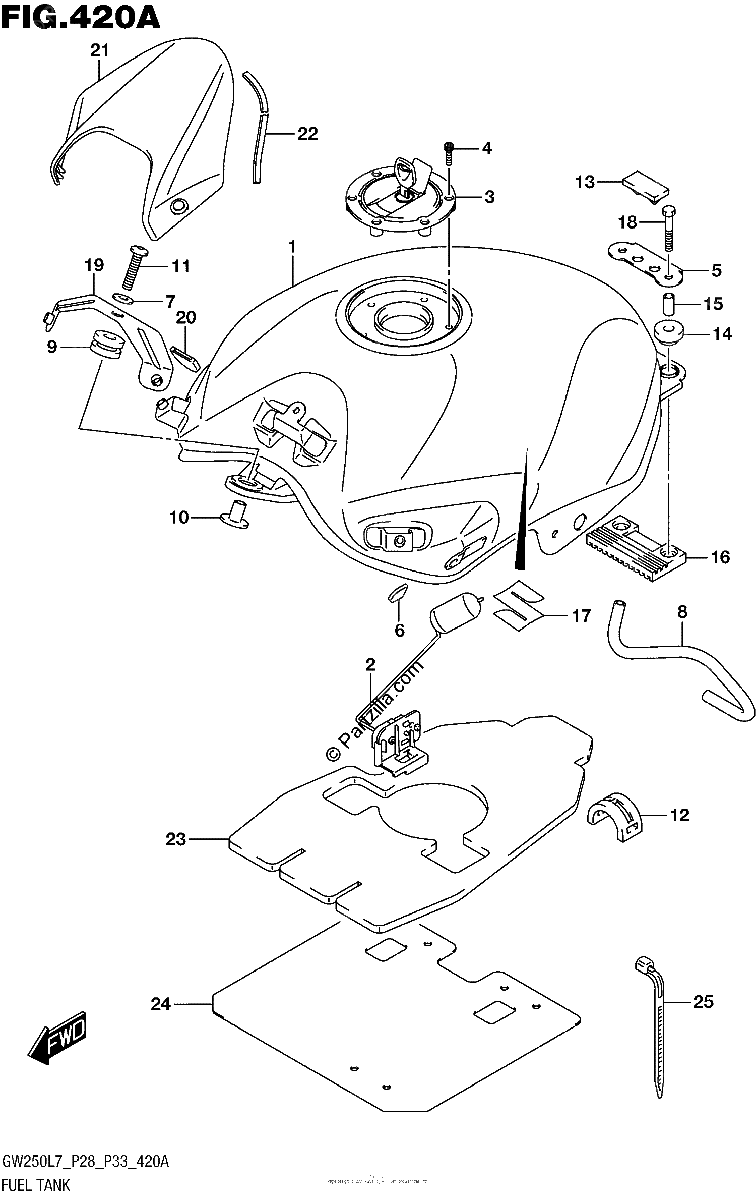

Diagrama de FUEL TANK GW250L7 P28

Repuestos

#1
44100-48H10-YAY
TANK ASSY, FUEL (BLACK)
$1243.13¢621 563
1
#2
34810-48H01
GAUGE ASSY, FUEL LEVEL SENDER
$109.54¢54 769
1
#3
44200-16870
CAP SET, FUEL TANK
$207.88¢103 938
1
#4
44211-48H00
BOLT (5X20)
$3.09¢1 544
1
#5
44146-48H00
WASHER, REAR BRACKET
No Disponible
1
#6
44276-48H00
CUSHION, FUEL TANK COVER
$1.95¢975
1
#7
44262-48H00
WASHER, FUEL TANK FRONT
No Disponible
1
#8
44423-48H10
HOSE, FUEL TANK WATER DRAIN
No Disponible
1
#9
44511-48H00
CUSHION, FUEL TANK FRONT
No Disponible
1
#10
44512-48H00
SPACER, FUEL TANK FRONT
No Disponible
1
#11
44513-48H00
SCREW, FUEL TANK FRONT
No Disponible
1
#12
44541-48H00
CUSHION, FUEL TANK SIDE
$7.60¢3 800
1
#13
44542-48H00
CUSHION, REAR BRACKET
$5.79¢2 894
1
#14
44543-48H00
CUSHION, FUEL TANK REAR UPPER
$3.96¢1 981
1
#15
44544-48H00
SPACER, FUEL TANK REAR
No Disponible
1
#16
44545-48H00
CUSHION, FUEL TANK REAR LOWER
No Disponible
1
#17
68111-47HA0
EMBLEM, in.Sin.
$48.22¢24 112
1
#18
01500-0635A
BOLT
$2.89¢1 444
1
#19
44160-48H00
BRACKET, FUEL TANK COVER
$9.29¢4 644
1
#20
44164-48H00
CUSHION, TANK COVER BRACKET
$3.52¢1 763
1
#21
44191-48H00-YMD
COVER, FUEL TANK CENTER
$83.38¢41 688
1
#22
44277-48H00
CUSHION, TANK COVER CENTER
$5.46¢2 731
1
#23
44192-48H00
SHIELD, FUEL TANK HEAT
$23.10¢11 550
1
#24
44193-48H10
SHIELD, FUEL TANK HEAT NO.2
No Disponible
1
#25
36990-32G10
CLAMP, WIRING HARNESS
$3.31¢1 656
1
