HANDLE LEVER MODEL L0

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

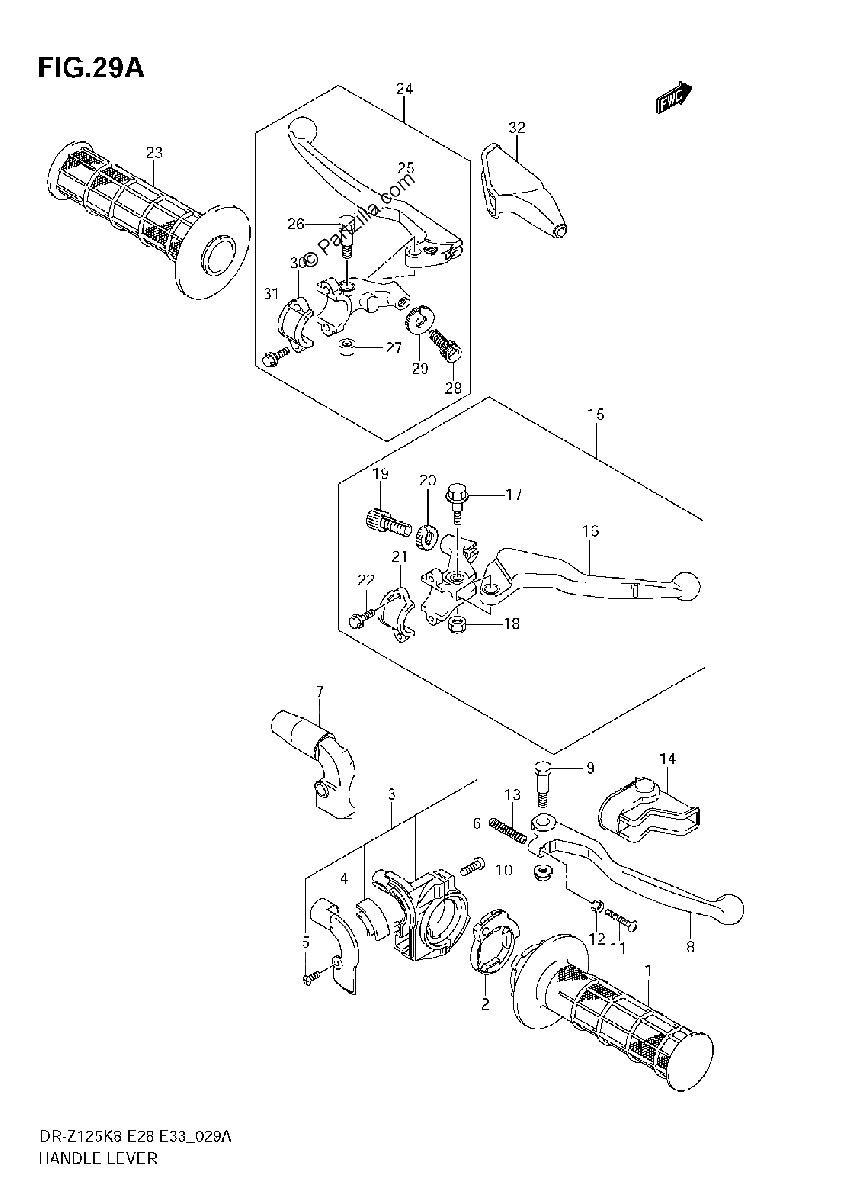

Diagrama de HANDLE LEVER MODEL L0

Repuestos

#1
57110-27C00
GRIP, THROTTLE
$28.93¢14 467
1
#2
57114-20430
ROTOR, THROTTLE
$15.62¢7 809
1
#3
57100-03D10
CASE ASSY, THROTTLE
$50.07¢25 036
1
#4
57129-03D10
.COVER
$35.07¢17 537
1
#5
02122-0410B
.SCREW
$1.89¢943
1
#6
02112-05167
.SCREW
$2.36¢1 179
1
#7
57129-08G00
COVER, THROTTLE CASE
$27.12¢13 558
1
#8
57421-27C00
LEVER, BRAKE
$15.18¢7 590
1
#9
57431-14500
BOLT
$6.89¢3 444
1
#10
08316-1006B
NUT
$2.99¢1 495
1
#11
57431-14511
BOLT, ADJUST
$6.54¢3 272
1
#12
08310-0005B
NUT
$2.20¢1 098
1
#13
57318-14502
SPRING, RETURN
$4.91¢2 455
1
#14
57341-14501
COVER, BRAKE LEVER
$8.99¢4 497
1
#15
57300-14320
LEVER ASSY, BRAKE
$76.53¢38 266
1
#16
57420-14320
.LEVER, BRAKE
$57.02¢28 508
1
#17
57431-14320
.BOLT
No Disponible
1
#18
08319-2106A
.NUT
$2.27¢1 133
1
#19
57441-45C00
.ADJUSTER, WIRE
$9.94¢4 968
1
#20
57442-45C00
.NUT, LOCK
$9.50¢4 749
1
#21
57512-37F00
.BRACKET, HOLDER
$35.82¢17 911
1
#22
09103-06235
.BOLT (6X20)
$2.42¢1 208
1
#23
57211-27C00
GRIP LH
$13.48¢6 739
1
#24
57500-14320
LEVER ASSY, CLUTCH
$54.88¢27 439
1
#25
57621-13E00
.LEVER, CLUTCH
$14.02¢7 009
1
#26
57431-21D11
.BOLT, LEVER PIVOT
$10.72¢5 359
1
#27
08319-2106A
.NUT
$2.27¢1 133
1
#28
57441-29F00
.ADJUSTER, WIRE
$14.05¢7 026
1
#29
57442-45C00
.NUT, LOCK
$9.50¢4 749
1
#30
57512-28C00
.BRACKET, CLUTCH LEVER HOLDER
$31.83¢15 916
1
#31
57513-29F10
.BOLT
$7.74¢3 870
1
#32-1
57341-40002
COVER, CLUTCH LEVER
$6.01¢3 007
1
#32-2
57341-29F01
COVER, CLUTCH LEVER
$9.21¢4 606
1
