HANDLE LEVER MODEL K8 K9

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

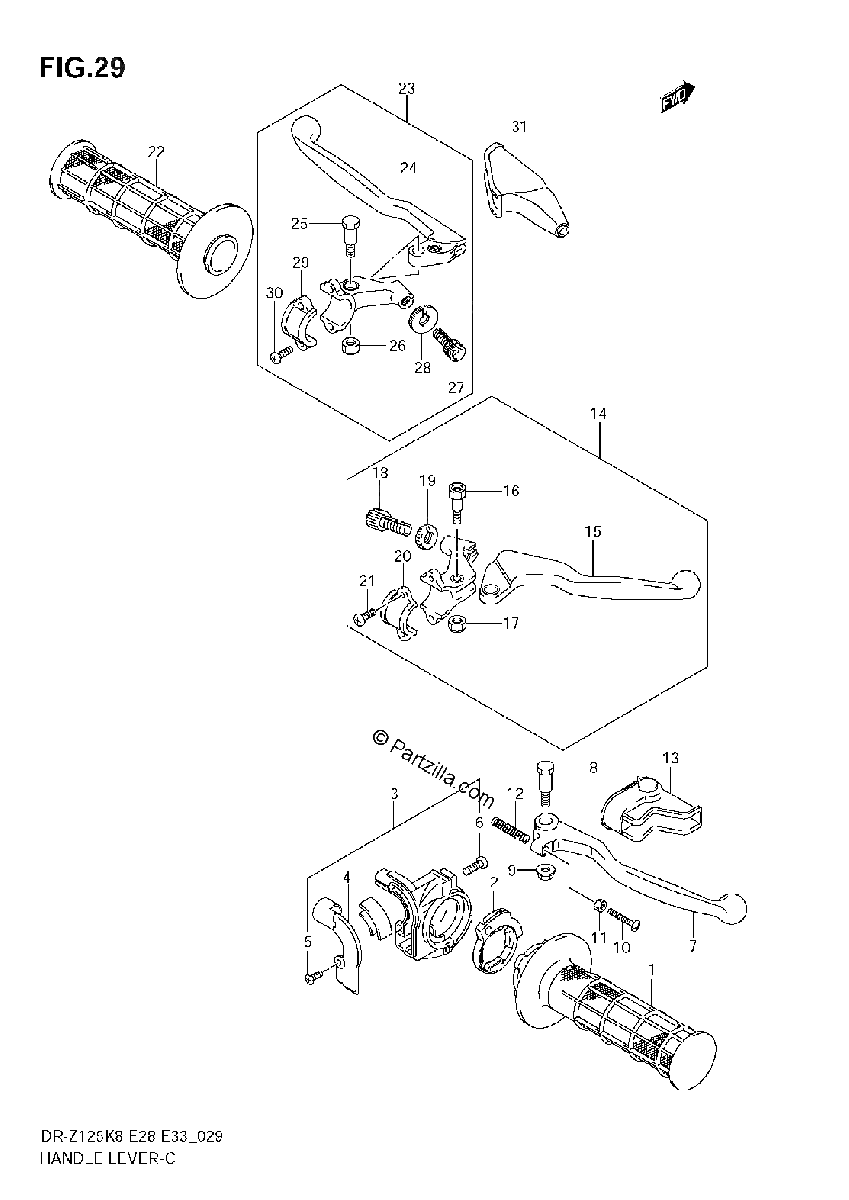

Diagrama de HANDLE LEVER MODEL K8 K9

Repuestos

#1
57110-27C00
GRIP, THROTTLE
$31.45¢15 725
1
#2
57114-20410
ROTOR, THROTTLE
$8.86¢4 431
1
#3
57100-03D00
CASE ASSY, THROTTLE
$54.42¢27 213
1
#4
57129-20411
COVER
$16.15¢8 075
1
#5
02122-0410B
.SCREW
$2.05¢1 025
1
#6
02112-05167
.SCREW
$2.56¢1 281
1
#7
57421-27C00
LEVER, BRAKE
$16.50¢8 250
1
#8
57431-14500
BOLT
$7.49¢3 744
1
#9
08316-1006B
NUT
$3.25¢1 625
1
#10
57431-14511
BOLT, ADJUST
$7.11¢3 556
1
#11
08310-0005B
NUT
$2.39¢1 194
1
#12
57318-14502
SPRING, RETURN
$5.34¢2 669
1
#13
57341-14501
COVER, BRAKE LEVER
$9.78¢4 888
1
#14
57300-14300
LEVER ASSY, BRAKE *{DR-Z125}*
No Disponible
1
#15
57420-14300
LEVER, BRAKE *{DR-Z125}*
No Disponible
1
#16
57431-14301
BOLT
$7.89¢3 944
1
#17
08319-2106A
.NUT
$2.46¢1 231
1
#18
57441-14200
ADJUSTER, CABLE *{DR-Z125}*
$16.85¢8 425
1
#19
57442-14200
NUT
$8.22¢4 113
1
#20
57512-14300
BRACKET
$55.25¢27 625
1
#21
02112-05167
.SCREW
$2.56¢1 281
1
#22
57211-27C00
GRIP LH
$14.65¢7 325
1
#23
57500-14300
LEVER ASSY, CLUTCH
No Disponible
1
#24
57620-14300
LEVER, CLUTCH
$24.14¢12 069
1
#25
57431-14301
BOLT
$7.89¢3 944
1
#26
08319-2106A
.NUT
$2.46¢1 231
1
#27
57441-14210
ADJUSTER, CABLE
$13.40¢6 700
1
#28
57442-14200
NUT
$8.22¢4 113
1
#29
57512-14300
BRACKET
$55.25¢27 625
1
#30
09125-05102
SCREW
$2.01¢1 006
1
#31
57341-40002
COVER, CLUTCH LEVER
$6.54¢3 269
1
#32
SPECIAL-NOTE
COLOR :
No Disponible
1
