FRONT FORK

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

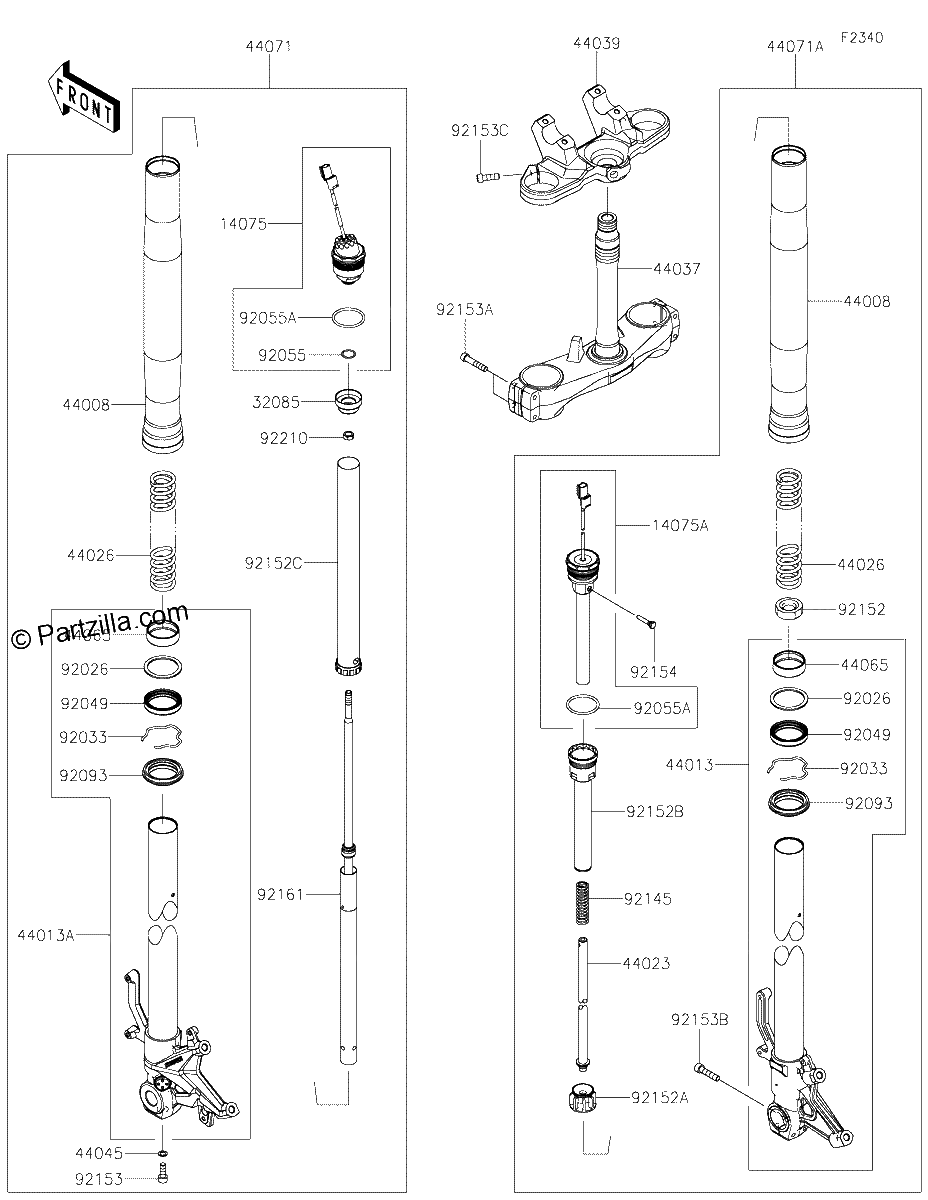

Diagrama de FRONT FORK

Repuestos

#14075
14075-0713
CAP Assembly,FORK,Left Hand
$1871.44¢935 719
1
#14075A
14075-0714
CAP-ASSY,FORK,RH
$1195.30¢597 650
1
#32085
32085-0851
STOPPER
$55.41¢27 706
1
#44008
44008-0104
PIPE-FORK OUTER
$643.49¢321 744
1
#44013
44013-0379
PIPE FORK INNER,Right Hand
$920.02¢460 013
1
#44013A
44013-0380
PIPE FORK INNER,Left Hand
$937.55¢468 775
1
#44023
44023-0178
CYLINDER SET FORK
$211.57¢105 788
1
#44026
44026-0273
SPRING FRONT FORK
$87.24¢43 619
1
#44037
44037-0205
HOLDER FORK UNDER
$1184.30¢592 150
1
#44039
44039-0207
HOLDER FORK UPPER
$409.86¢204 931
1
#44045
44045-051
GASKET,FORK CYLINDER BOLT
$6.04¢3 019
1
#44065
44065-0026
BUSHING FRONT FORK
$26.92¢13 462
1
#44071
44071-1489
DAMPER-ASSY,FORK,LH
$3579.31¢1 789 656
1
#44071A
44071-1490
DAMPER-ASSY,FORK,RH
$2577.35¢1 288 675
1
#92026
92026-0165
SPACER
$3.75¢1 875
1
#92033
92033-1222
RING-SNAP
$6.36¢3 181
1
#92049
92049-0119
SEAL-OIL
$29.01¢14 506
1
#92055A
92055-1497
RING-O,FORK CAP
$5.83¢2 913
1
#92055
92055-0927
RING-O
$4.16¢2 081
1
#92093
92093-0759
SEAL
$27.50¢13 750
1
#92145
92145-2217
SPRING
$43.05¢21 525
1
#92152C
92152-2799
COLLAR
$36.09¢18 044
1
#92152A
92152-2565
COLLAR
$34.96¢17 481
1
#92152B
92152-2658
COLLAR
$55.41¢27 706
1
#92152
92152-2564
COLLAR
$94.66¢47 331
1
#92153B
92153-0854
BOLT,SOCKET,8X35
$7.79¢3 894
1
#92153A
92153-0853
BOLT
$7.79¢3 894
1
#92153C
92153-0855
BOLT
$5.56¢2 781
1
#92153
92153-0028
BOLT,SOCKET,8X22
$9.15¢4 575
1
#92154
92154-3743
BOLT,TOP
$51.21¢25 606
1
#92161
92161-2407
DAMPER
$1079.40¢539 700
1
#92210
92210-1764
NUT
$1.38¢688
1
