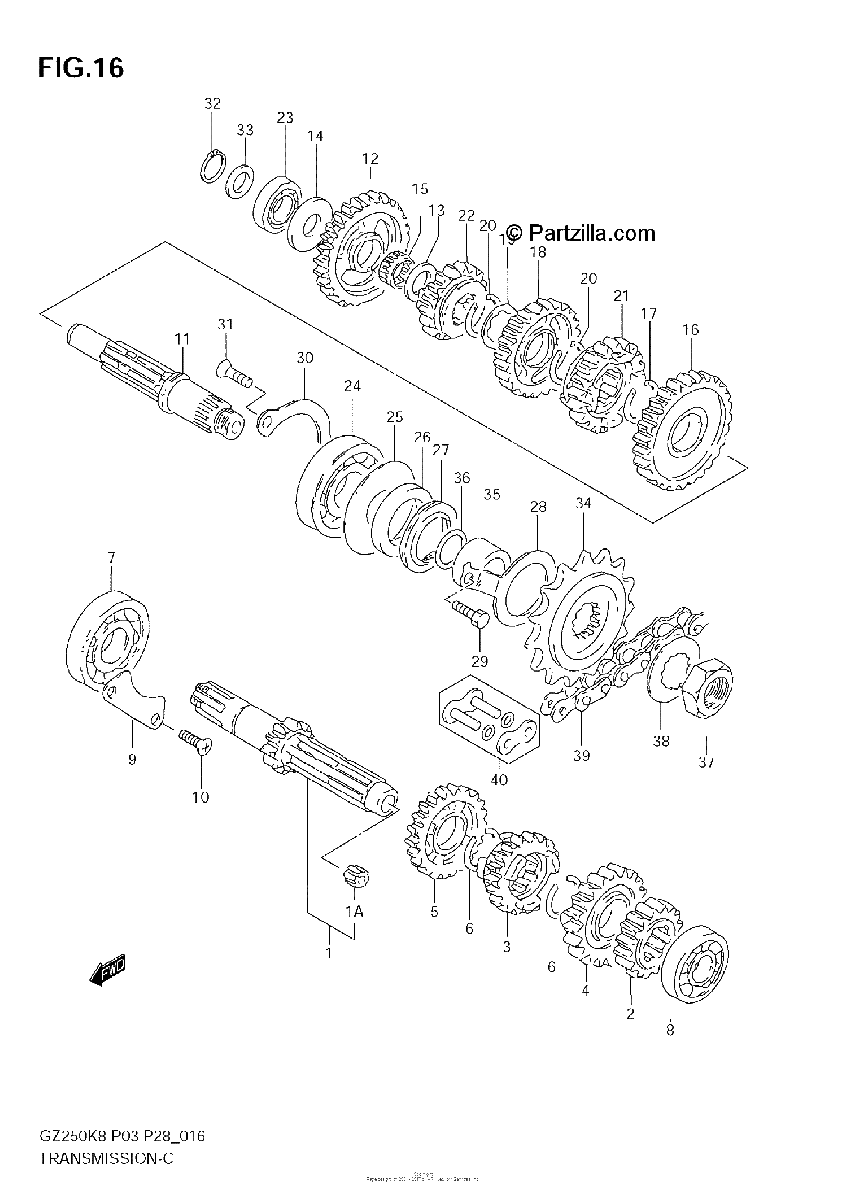

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SHAFT, COUNTER (NT:11)
No Disponible
#1A
.BUSH
$7.93¢3 968
#2
GEAR, 2ND DRIVE (NT:16)
No Disponible
#3
GEAR, 3RD DRIVE (NT:19)
No Disponible
#4
GEAR, 4TH DRIVE (NT:20)
No Disponible
#5
GEAR, 2ND DRIVE (NT:22)
No Disponible
#6
CIRCLIP
$3.36¢1 679
#7
BEARING (22X56X16) | RH
$83.78¢41 889
#8
BEARING (17X40X12) | LH
$45.94¢22 971
#9
RETAINER, CNTR SHAFT BEARING
No Disponible
#10
SCREW (6X12)
$2.55¢1 277
#11
SHAFT, DRIVE
No Disponible
#12
GEAR, 1ST DRIVEN (NT:29)
No Disponible
#13
SHIM (17X28X1)
$3.37¢1 685
#14
THRUST WASHER
No Disponible
#15
BEARING (17X21X9.8)
$14.52¢7 262
#16
GEAR, 2ND DRIVEN (NT:27)
No Disponible
#17
CIRCLIP
$3.36¢1 679
#18
GEAR, 3RD DRIVE (NT:24)
No Disponible
#19
LOCK WASHER
$3.54¢1 771
#20
CIRCLIP
$3.36¢1 679
#21
GEAR, 4TH DRIVEN (NT:20)
No Disponible
#22
GEAR, 5TH DRIVEN (NT:18)
No Disponible
#23
BEARING (17X36X12) | RH
$51.95¢25 973
#24
BEARING (22X56X16)
$88.35¢44 177
#25
WASHER (35X55X1)
$2.56¢1 282
#26
OIL SEAL (30X43X5)
$13.22¢6 613
#27
OIL SEAL (30X43X7)
$13.91¢6 958
#28
RETAINER, DRIVE SHAFT OIL SEA
No Disponible
#29
BOLT
$2.99¢1 495
#30
RETAINER, BEARING
No Disponible
#31
SCREW
No Disponible
#32
CIRCLIP
$2.25¢1 127
#33
WASHER (17X24X1.0)
$3.37¢1 685
#34
SPROCKET, ENGINE (NT:15)
$63.17¢31 585
#35
SPACER, ENGINE SPROCKET
$44.18¢22 092
#36
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.27¢1 133
#37
NUT
$6.58¢3 289
#38
LOCK WASHER
$1.77¢886
#39
CHAIN, DRIVE (01052OVXLLOLE)
$366.76¢183 379
#40
JOINT SET | OPT
No Disponible
