CAM SHAFT VALVE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

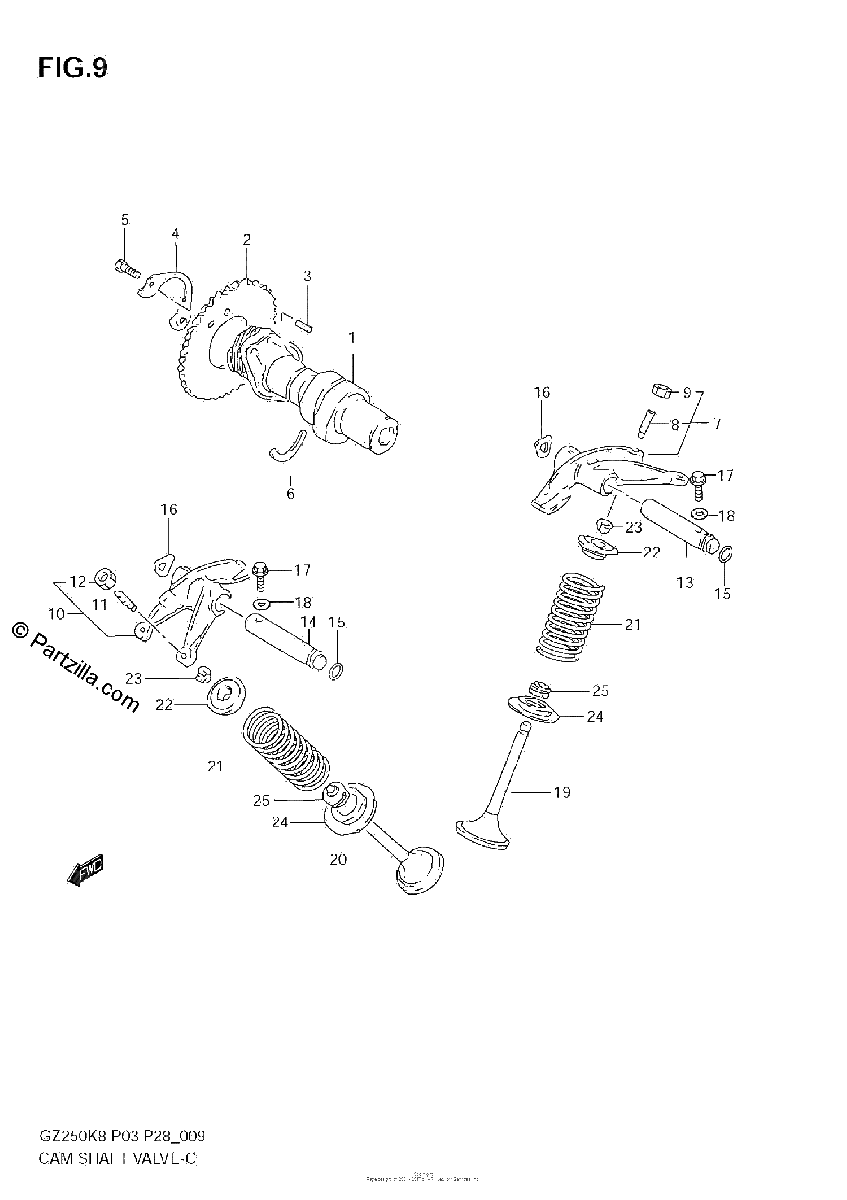

Diagrama de CAM SHAFT VALVE

Repuestos

#1
12711-13F00
CAM SHAFT
$376.04¢188 019
1
#2
12741-37400
SPROCKET, CAMSHAFT REAR
No Disponible
1
#3
04221-05109
PIN
$1.94¢969
1
#4
12747-44001
WASHER
$3.39¢1 694
1
#5
09111-06027
BOLT (6X12.5)
$2.25¢1 125
1
#6
09390-25003
C-RING
$3.21¢1 606
1
#7
12840-13F00
ARM, VALVE ROCKER IN
$117.31¢58 656
1
#8
12842-49201
.SCREW
$8.96¢4 481
1
#9
12843-27A00
.NUT
$3.65¢1 825
1
#10
12850-13F00
ARM, VALVE ROCKER EX
$117.31¢58 656
1
#11
12842-49201
.SCREW
$8.96¢4 481
1
#12
12843-27A00
.NUT
$3.65¢1 825
1
#13
12861-38200
SHAFT, VALVE ROCKER ARM INTAKE
No Disponible
1
#14
12871-38200
SHAFT, VALVE ROCKER ARM
$39.47¢19 737
1
#15
09280-09005
O RING (D:1.9, ID:8.6)
$4.34¢2 169
1
#16
09164-12018
WASHER
$1.76¢881
1
#17
02162-0630B
BOLT
No Disponible
1
#18
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#19
12911-38200
VALVE, INTAKE
$59.29¢29 644
1
#20
12912-38201
VALVE, EXHAUST
$103.09¢51 544
1
#21
12921-38211
SPRING, VALVE
$12.94¢6 469
1
#22
12931-49201
RETAINER, VALVE SPRING
$8.47¢4 238
1
#23
12932-49200
COTTER, VALVE
$2.85¢1 425
1
#24
12933-38200
SEAT, VALVE SPRING
$8.63¢4 313
1
#25
09289-05015
OIL SEAL (5.5X11X8.2)
$7.88¢3 938
1
