CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

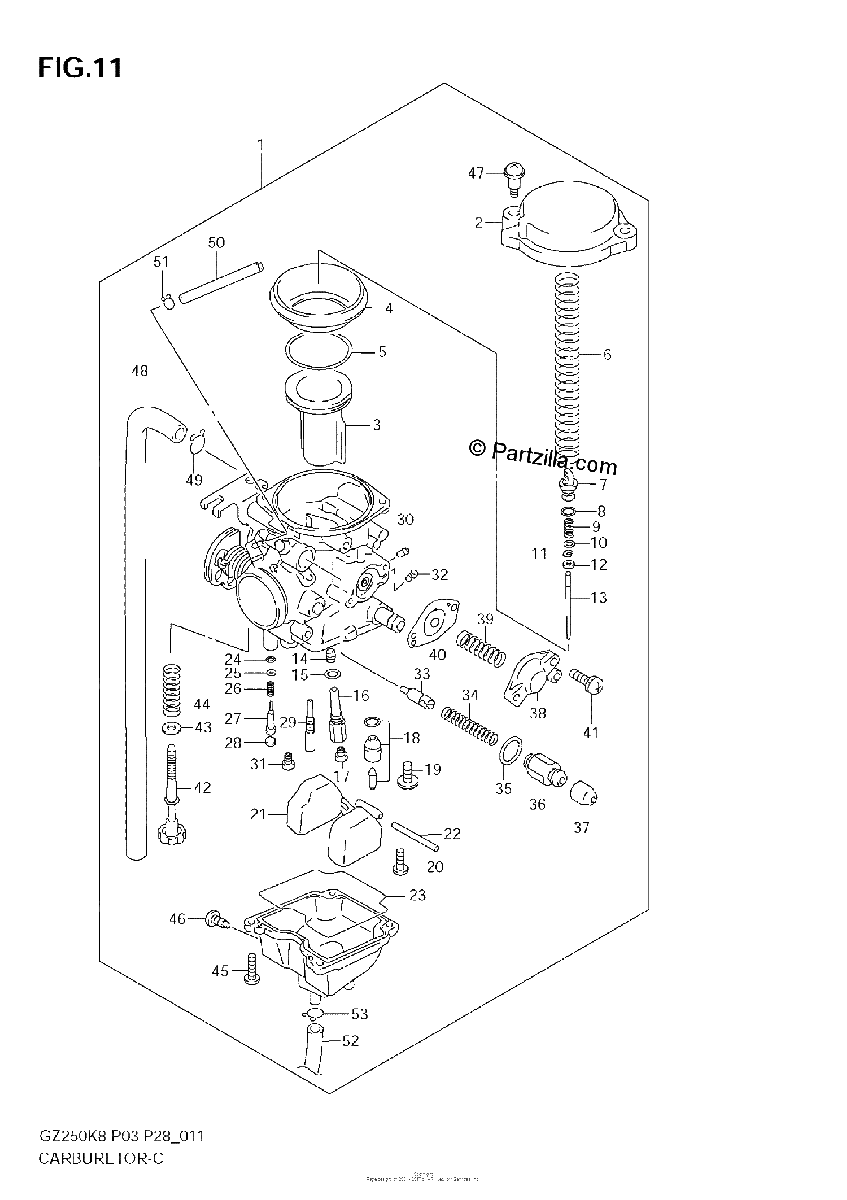

Diagrama de CARBURETOR

Repuestos

#1
13200-13F30
CARBURETOR ASSY | E3, E28
No Disponible
1
#1
13200-13F40
CARBURETOR ASSY | E33
$465.02¢232 513
1
#2
13502-19E00
DIAPHRAGM COVER
$38.11¢19 056
1
#3
13501-13F00
VALVE, PISTON
$121.84¢60 919
1
#4
13507-19E00
DIAPHRAGM
$33.85¢16 925
1
#5
13504-16E00
RING
$8.41¢4 206
1
#6
13573-04F00
SPRING
$18.46¢9 231
1
#7
13418-33E00
.HOLDER
$6.78¢3 388
1
#8
09280-05004
.O RING (D:1.9,ID:4.8)
$2.74¢1 369
1
#9
13481-13F00
SPRING
$5.88¢2 938
1
#10
13382-12F40
WASHER
$5.88¢2 938
1
#11
13394-17E60
.E RING, MULTIPLE JET NOZZLE
$2.36¢1 181
1
#12
13387-13F00
.RING
$12.60¢6 300
1
#13
13383-13F30
NEEDLE, JET (5C65-1)
$27.60¢13 800
1
#14
09494-00921
JET, NEEDLE (P-0M)
$50.20¢25 100
1
#15
13246-43010
.O RING
$5.17¢2 588
1
#16
13385-13F00
HOLDER, JET
$46.10¢23 050
1
#17
09491-24026
JET, MAIN (120)
$22.79¢11 394
1
#18
13370-04F00
VALVE ASSY, NEEDLE
$85.06¢42 531
1
#19
13602-05A10
.SCREW
$4.25¢2 125
1
#20
02112-0408A
.SCREW
$1.42¢712
1
#21
13250-04F00
.FLOAT ASSY
$41.42¢20 713
1
#22
13254-01010
.PIN, FLOAT
$4.44¢2 219
1
#23
13258-04F00
.GASKET
$11.80¢5 900
1
#24
13295-29900
.O RING
$5.17¢2 588
1
#25
13291-29900
.WASHER
$2.34¢1 169
1
#26
13268-48700
.SPRING
$5.17¢2 588
1
#27
13279-13F00
ADJUSTER (1 1/2)
$16.98¢8 488
1
#28
13281-05A00
.PLUG
$5.49¢2 744
1
#29
09492-17016
JET
$22.65¢11 325
1
#30
09492-87002
JET, MAIN (87.5)
$23.21¢11 606
1
#31
09491-52003
JET, MAIN (52.5)
$16.40¢8 200
1
#32
09493-24013
JET, PILOT AIR (120)
$22.15¢11 075
1
#33
13411-24D00
PLUNGER
$36.35¢18 175
1
#34
13417-07F00
SPRING
$8.61¢4 306
1
#35
13278-47090
.O RING
$2.46¢1 231
1
#36
13418-07F00
HOLDER, GUIDE
$19.19¢9 594
1
#37
13681-04010
.CAP
$5.88¢2 938
1
#38
13502-10F00
.COVER ASSY
$53.59¢26 794
1
#39
13271-13F00
SPRING
$6.16¢3 081
1
#39
09401-08410
CLIP
$2.45¢1 225
1
#40
13480-13F00
DIAPHRAGM ASSY
$27.71¢13 856
1
#41
13601-04148
.SCREW
$3.65¢1 825
1
#42
13267-13F00
ADJUST SCREW ASSY
$20.60¢10 300
1
#43
13285-07F00
PACKING
$4.04¢2 019
1
#44
13342-82370
SPRING
$10.48¢5 238
1
#45
02112-04107
.SCREW
$2.01¢1 006
1
#46
13247-02340
SCREW, DRAIN
$5.94¢2 969
1
#47
13247-33E00
.SCREW
$3.65¢1 825
1
#48
13686-13F00
HOSE
No Disponible
1
#49
13671-06A10
CLIP
No Disponible
1
#50
13686-13F10
HOSE
$26.81¢13 406
1
#51
13671-13F00
CLIP
$5.94¢2 969
1
#52
13683-20B00
HOSE
$28.00¢14 000
1
