ELECTRICAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

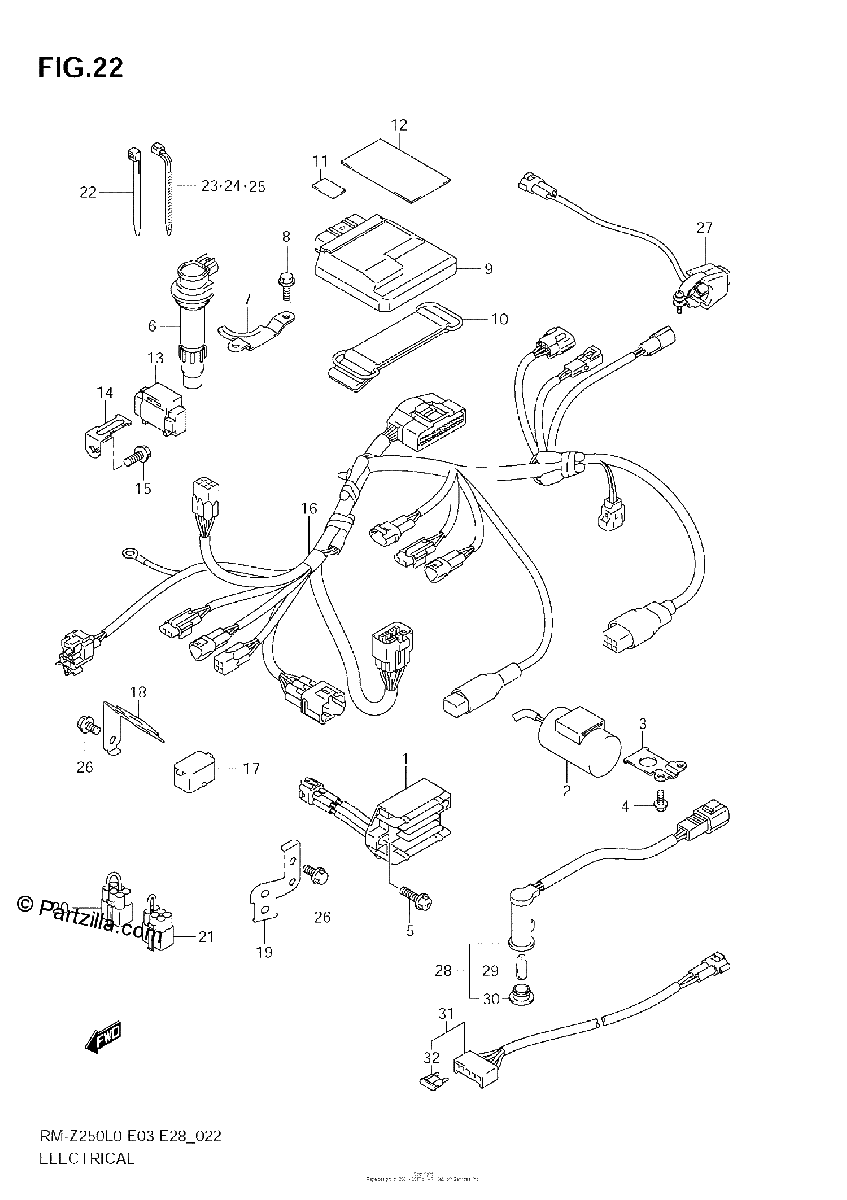

Diagrama de ELECTRICAL

Repuestos

#1
32800-28H00
RECTIFIER ASSY
$243.50¢121 750
1
#2
33640-28H00
CONDENSER ASSY
$191.36¢95 681
1
#3
33641-28H00
BRACKET, CONDENSER
No Disponible
1
#4
09103-06188
BOLT (6X10)
$3.81¢1 906
1
#5
02162-0620C
BOLT
$2.25¢1 125
1
#6
33410-49H00
COIL ASSY, IGNITION
$233.19¢116 594
1
#7
33414-49H00
RETAINER, SPARK PLUG CAP
$14.59¢7 294
1
#8
01550-0610B
BOLT
$3.16¢1 581
1
#9
32920-49H01
CONTROL UNIT,FI
No Disponible
1
#10
32942-14301
BAND, FI CONTROL UNIT
$14.19¢7 094
1
#11
33652-36000
PROTECTOR (30X50X3.0)
$3.10¢1 550
1
#12
33651-37000
PROTECTOR | CUT AS REQUIRED
$5.34¢2 669
1
#13
33960-06G10
SENSOR ASSY, FUEL CUT
$107.21¢53 606
1
#14
33961-49H00
BRACKET, FUEL CUT SENSOR
$9.29¢4 644
1
#15
02162-0616B
BOLT, ADJUST
$2.69¢1 344
1
#16
36610-49H00
HARNESS, WIRING
$601.06¢300 531
1
#17
36654-46H00
CAP, TS
$17.02¢8 513
1
#18
36672-49H00
BRACKET, COUPLER
No Disponible
1
#19
36672-49H10
BRACKET, COUPLER
$12.79¢6 394
1
#20
36852-28H00
WIRE, SHORT
$17.79¢8 894
1
#21
36852-49H00
WIRE, SHORT
$13.67¢6 837
1
#22
09407-10403
CLAMP (L:95)
No Disponible
1
#23
09407-11401
CLAMP (L:95)
$3.46¢1 731
1
#24
09407-14403
CLAMP (L:125)
$2.92¢1 463
1
#25
09407-18402
CLAMP (L:165)
$2.89¢1 444
1
#26
01550-0610A
.BOLT
$2.56¢1 281
1
#27
37820-36E00
SWITCH ASSY, ENGINE STOP
$28.91¢14 456
1
#28
36380-28H00
LAMP ASSY, FI INDICATOR | OPT
$104.69¢52 344
1
#29
09471-12028
.BULB (12V,3.4W) | OPT
$2.58¢1 288
1
#30
36321-28H00
.LENS (RED) | OPT
$14.28¢7 138
1
#31
36890-28H00
WIRE, BATTERY | OPT
$62.13¢31 063
1
#32
09481-10101
.FUSE (10A) | OPT
$2.71¢1 356
1
