CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

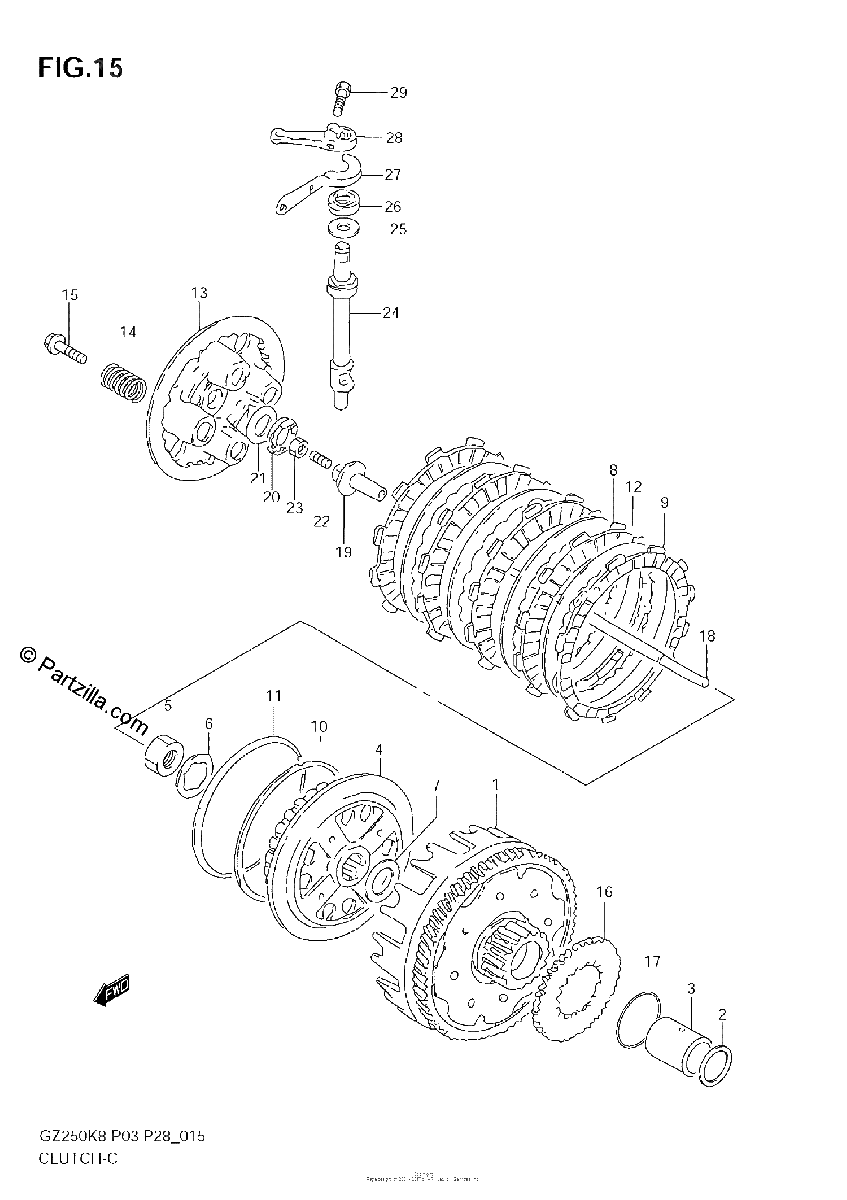

Diagrama de CLUTCH

Repuestos

#1
21200-38201
GEAR ASSY, PRIMARY DRIVEN (NT:16/68)
$348.56¢174 283
1
#2
08211-22363
WASHER
$4.85¢2 427
1
#3
09180-22024
SPACER (22X28X37.5)
No Disponible
1
#4
21411-38201
HUB, CLUTCH SLEEVE
$151.25¢75 624
1
#5
09140-22005
NUT
$4.66¢2 329
1
#6
09167-22010
LOCK WASHER
$4.29¢2 145
1
#7
08211-22363
WASHER
$4.85¢2 427
1
#8
21441-37430
PLATE, CLUTCH DRIVE
$25.38¢12 690
1
#9
21442-37401
PLATE, CLUTCH DRIVE NO.2
$20.48¢10 241
1
#10
21471-37400
SEAT, WAVE WASHER
$10.73¢5 365
1
#11
09164-00004
WASHER
$12.45¢6 227
1
#12
21451-14A00
PLATE, DRIVEN (T:1.6)
$10.44¢5 221
1
#13
21462-27A00
DISC, PRESSURE
$71.62¢35 811
1
#14
21413-13F00
SPRING, CLUTCH
$3.56¢1 783
1
#15
09116-06167
BOLT (6X20)
$2.62¢1 311
1
#16
16321-38210
GEAR, ENGINE OIL PUMP (NT:16/38)
No Disponible
1
#17
09380-50001
CIRCLIP
$1.23¢615
1
#18
23110-38201
ROD, CLUTCH PUSH
$22.37¢11 184
1
#19
23121-38201
PIECE, CLUTCH PUSH
$33.21¢16 606
1
#20
09263-15003
BEARING (15X28X2)
$8.97¢4 485
1
#21
09160-15045
WASHER (15.5X28X1)
$4.21¢2 105
1
#22
09134-06010
.SCREW (6X25)
$3.37¢1 685
1
#23
09140-06023
NUT
$2.48¢1 242
1
#24
23122-38200
CAMSHAFT, CLUTCH RELEASE
No Disponible
1
#25
09160-14054
WASHER (14.5X22X1)
$2.50¢1 248
1
#26
09285-12006
OIL SEAL (12X22X9)
$6.83¢3 415
1
#27
23117-38200
PLATE, CAMSHAFT OIL SEAL
$6.84¢3 421
1
#28
23271-49100
ARM, CLUTCH RELEASE
$39.87¢19 935
1
#29
01500-06207
BOLT
$2.38¢1 190
1
