TURN SIGNAL LAMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

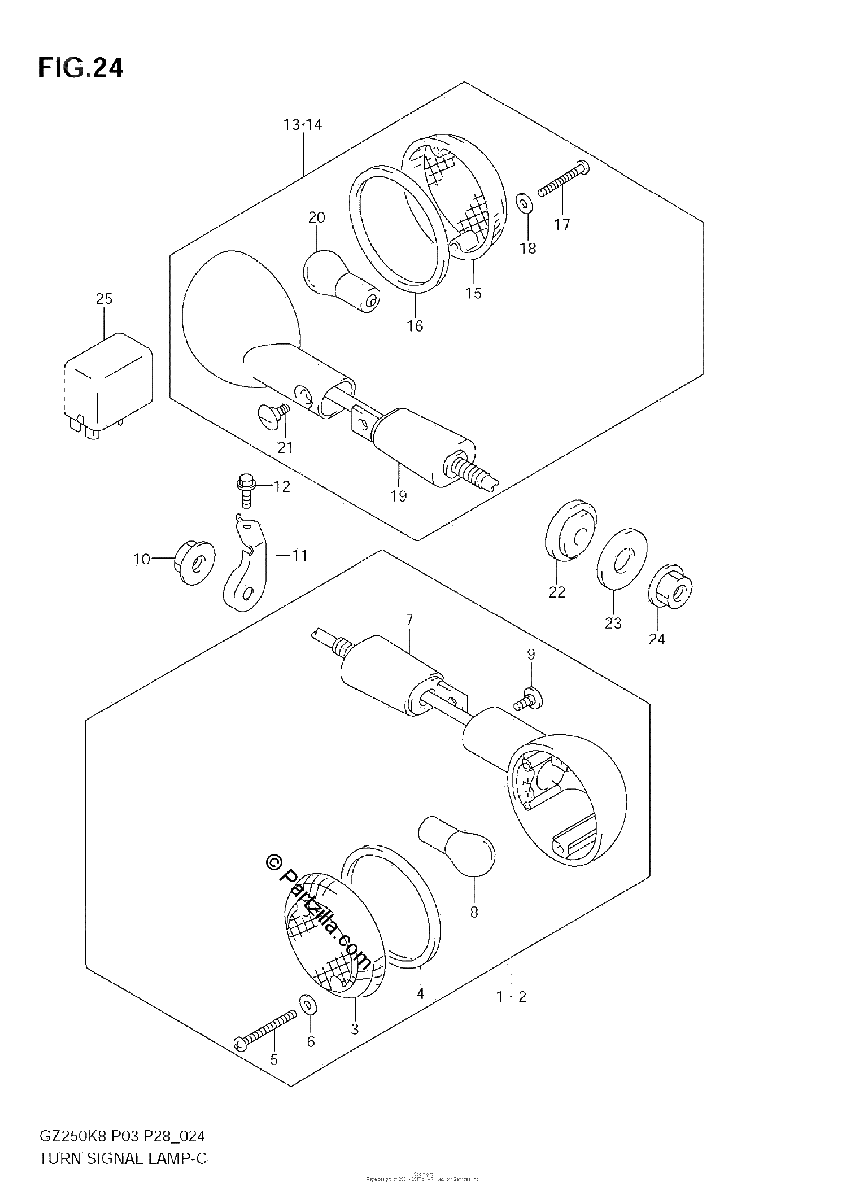

Diagrama de TURN SIGNAL LAMP

Repuestos

#1
35601-33DA0
LAMP ASSY, FRONT RH
$179.69¢89 844
1
#2
35602-33DA0
LAMP ASSY, FRONT LH
$179.69¢89 844
1
#3
35612-38A30
LENS
$22.23¢11 115
1
#4
35613-38A00
.GASKET
$12.10¢6 049
1
#5
03211-0425B
.SCREW
$3.28¢1 639
1
#6
35627-43010
.GASKET
$2.62¢1 311
1
#7
35619-45C10
STAY, TURNSIGNAL
$65.07¢32 533
1
#8
09471-12128
BULB (12V,21/5W)
$7.29¢3 645
1
#9
35623-38A01
SCREW
$5.69¢2 846
1
#10
08316-1010B
NUT
$3.17¢1 587
1
#11
35680-12F00
BRACKET, FR LH
$16.21¢8 108
1
#11
35670-12F00
BRACKET, FR RH
No Disponible
1
#12
D1557-0616B
BOLT
$0.36¢178
1
#13
35603-33DA0
LAMP ASSY, REAR TURN, R
$175.35¢87 676
1
#14
35604-33DA0
LAMP ASSY, REAR TURN, L
$175.35¢87 676
1
#15
35612-38A01
.LENS
$15.59¢7 797
1
#16
35613-38A00
.GASKET
$12.10¢6 049
1
#17
03211-0425B
.SCREW
$3.28¢1 639
1
#18
35627-43010
.GASKET
$2.62¢1 311
1
#19
35659-45C10
STAY, TURN SIGNAL
$39.99¢19 993
1
#20
09471-12045
.BULB (12V,21W) | FOR CLEAR
$3.54¢1 771
1
#21
35623-38A01
SCREW
$5.69¢2 846
1
#22
35695-17C00
SPACER, REAR TURNSIGNAL LAMP
$4.42¢2 208
1
#23
09160-10501
WASHER (10.5X30X2.3)
$2.79¢1 397
1
#24
08316-1010B
NUT
$3.17¢1 587
1
#25
38610-12FA0
RELAY ASSY, TURN SIGNAL
$129.32¢64 659
1
