CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

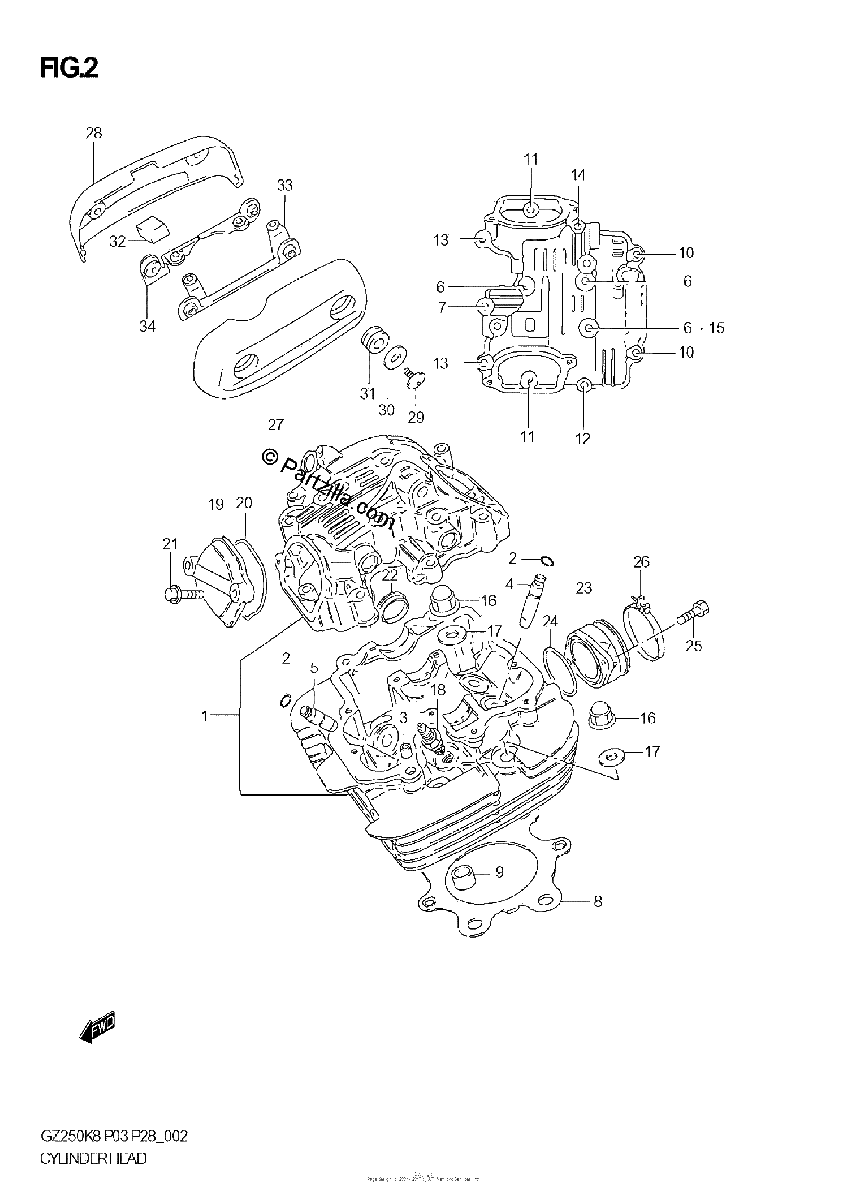

Diagrama de CYLINDER HEAD

Repuestos

#1
11100-25D02
HEAD ASSY, CYLINDER
$1373.50¢686 750
1
#2
09381-10004
.SNAP RING
$1.76¢881
1
#3
09206-08001
.PIN (8X11)
$2.30¢1 150
1
#4
11115-38270
GUIDE, VALVE (OS: 0.3) | OPT
$55.00¢27 500
1
#5
11115-05270
GUIDE, VALVE (0S:0.3) | OPT
$39.36¢19 681
1
#6
01550-0660B
BOLT (GREEN)
$4.20¢2 100
1
#7
01550-0630B
BOLT
$3.65¢1 825
1
#8
11141-25D11
GASKET, CYLINDER HEAD
$38.59¢19 294
1
#9
04211-13189
PIN
$2.85¢1 425
1
#10
09103-06148
BOLT (6X120)
$6.25¢3 125
1
#11
01550-0630B
BOLT
$3.65¢1 825
1
#12
01550-0645B
BOLT (GREEN)
No Disponible
1
#13
01550-0650B
BOLT
No Disponible
1
#14
01550-0660B
BOLT (GREEN)
$4.20¢2 100
1
#15
09168-06023
GASKET (5.8X13X1.2)
$2.63¢1 313
1
#16
09159-10026
NUT
$7.39¢3 694
1
#17
09168-10017
GASKET (10.5X22X2)
$3.65¢1 825
1
#18
09482-00399
SPARK PLUG (DR8EA) | OPT
$3.84¢1 919
1
#18
09482-00223
SPARK PLUG (X24ESR-U) | OPT
$5.99¢2 994
1
#19
11175-38202
CAP, INSPECTION
$31.52¢15 763
1
#20
09280-55003
O RING
$4.58¢2 288
1
#21
01550-0625B
.BOLT
$3.16¢1 581
1
#22
09241-30004
PLUG (OD:30)
$7.77¢3 887
1
#23
13110-13F00
PIPE, INTAKE
$41.60¢20 800
1
#24
09280-40010
.O RING (D:2.4,ID:39.7)
$3.65¢1 825
1
#25
02122-0616B
SCREW
$2.58¢1 288
1
#26
09402-48208
CLAMP
$5.46¢2 731
1
#27
11171-13F00
CAP, CYLINDER HEAD COVER LH
$93.55¢46 775
1
#28
11172-13F00
CAP, CYLINDER HEAD COVER RH
No Disponible
1
#29
11178-12F10
BOLT, HEAD COVER CAP
$6.81¢3 406
1
#30
09160-06134
WASHER (6.5X24X1.6)
$2.46¢1 231
1
#31
09320-13015
CUSHION
$3.65¢1 825
1
#32
11178-13F00
DAMPER, HEAD CAP RH
No Disponible
1
#33
11179-13F01
BRACKET, HEAD CAP LH
No Disponible
1
#34
11179-13F11
BRACKET, HEAD CAP RH
No Disponible
1
