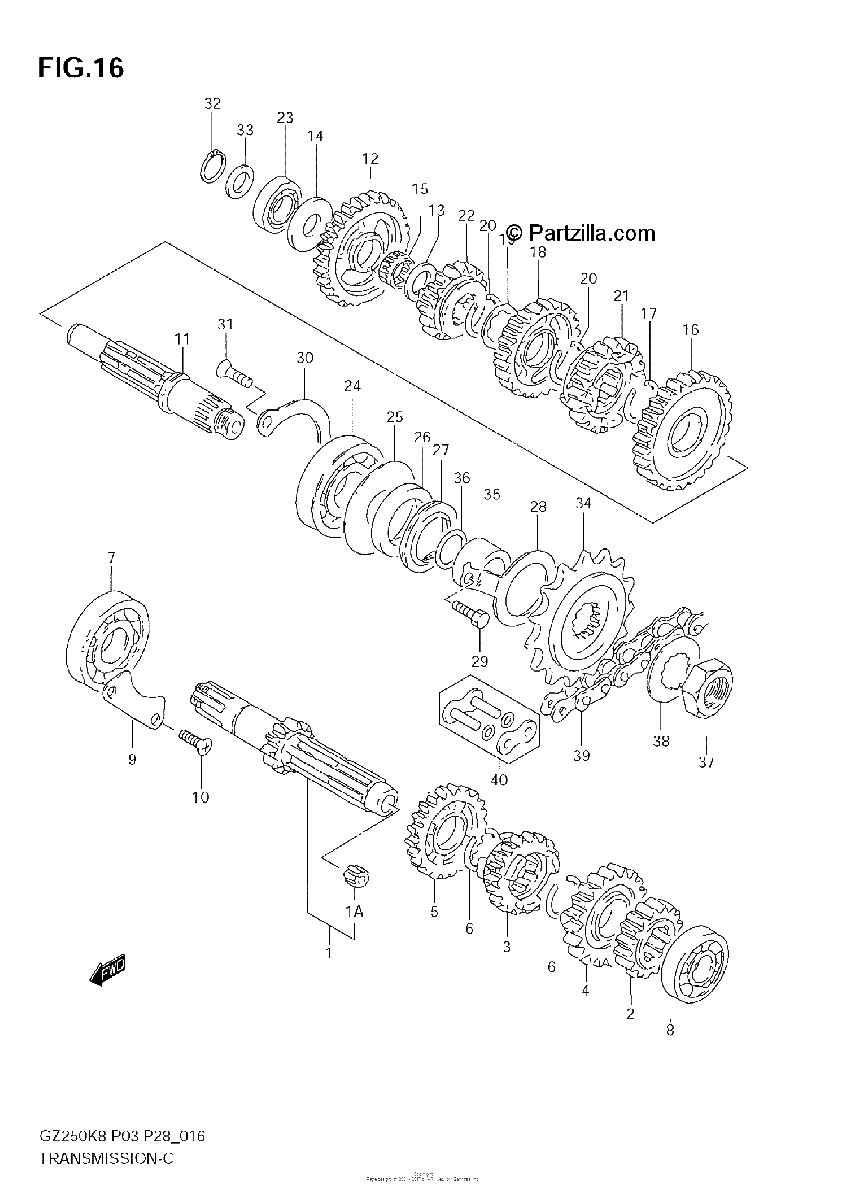

TRANSMISSION
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
SHAFT, COUNTER (NT:11)
No Disponible
#1A
.BUSH
$8.63¢4 313
#2
GEAR, 2ND DRIVE (NT:16)
No Disponible
#3
GEAR, 3RD DRIVE (NT:19)
No Disponible
#4
GEAR, 4TH DRIVE (NT:20)
No Disponible
#5
GEAR, 2ND DRIVE (NT:22)
No Disponible
#6
CIRCLIP
$3.65¢1 825
#7
BEARING (22X56X16) | RH
$91.06¢45 531
#8
BEARING (17X40X12) | LH
$49.94¢24 969
#9
RETAINER, CNTR SHAFT BEARING
No Disponible
#10
SCREW (6X12)
$2.78¢1 388
#11
SHAFT, DRIVE
No Disponible
#12
GEAR, 1ST DRIVEN (NT:29)
No Disponible
#13
SHIM (17X28X1)
$3.66¢1 831
#14
THRUST WASHER
No Disponible
#15
BEARING (17X21X9.8)
$15.79¢7 894
#16
GEAR, 2ND DRIVEN (NT:27)
No Disponible
#17
CIRCLIP
$3.65¢1 825
#18
GEAR, 3RD DRIVE (NT:24)
No Disponible
#19
LOCK WASHER
$3.85¢1 925
#20
CIRCLIP
$3.65¢1 825
#21
GEAR, 4TH DRIVEN (NT:20)
No Disponible
#22
GEAR, 5TH DRIVEN (NT:18)
No Disponible
#23
BEARING (17X36X12) | RH
$56.46¢28 231
#24
BEARING (22X56X16)
$96.04¢48 019
#25
WASHER (35X55X1)
$2.79¢1 394
#26
OIL SEAL (30X43X5)
$14.38¢7 188
#27
OIL SEAL (30X43X7)
$15.13¢7 563
#28
RETAINER, DRIVE SHAFT OIL SEA
No Disponible
#29
BOLT
$3.25¢1 625
#30
RETAINER, BEARING
No Disponible
#31
SCREW
No Disponible
#32
CIRCLIP
$2.45¢1 225
#33
WASHER (17X24X1.0)
$3.66¢1 831
#34
SPROCKET, ENGINE (NT:15)
$68.66¢34 331
#35
SPACER, ENGINE SPROCKET
$48.03¢24 013
#36
.O RING (D:2.5, ID:21) | NOT ILLUSTRATED
$2.46¢1 231
#37
NUT
$7.15¢3 575
#38
LOCK WASHER
$1.93¢963
#39
CHAIN, DRIVE (01052OVXLLOLE)
$398.65¢199 325
#40
JOINT SET | OPT
No Disponible
