CARBURETOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

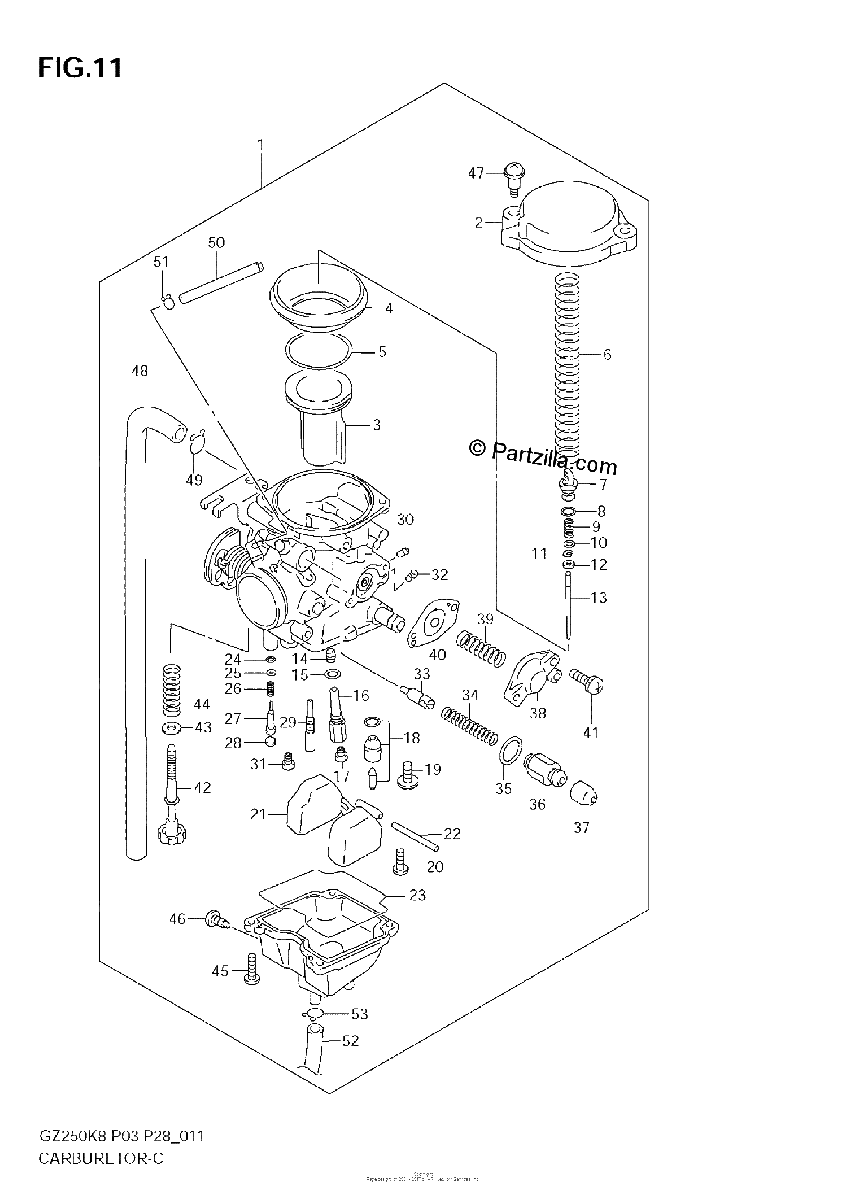

Diagrama de CARBURETOR

Repuestos

#1
13200-13F30
CARBURETOR ASSY | E3, E28
No Disponible
1
#1
13200-13F40
CARBURETOR ASSY | E33
$427.82¢213 911
1
#2
13502-19E00
DIAPHRAGM COVER
$35.06¢17 532
1
#3
13501-13F00
VALVE, PISTON
$112.09¢56 045
1
#4
13507-19E00
DIAPHRAGM
$31.14¢15 571
1
#5
13504-16E00
RING
$7.74¢3 870
1
#6
13573-04F00
SPRING
$16.99¢8 493
1
#7
13418-33E00
.HOLDER
$6.23¢3 117
1
#8
09280-05004
.O RING (D:1.9,ID:4.8)
$2.52¢1 259
1
#9
13481-13F00
SPRING
$5.40¢2 702
1
#10
13382-12F40
WASHER
$5.40¢2 702
1
#11
13394-17E60
.E RING, MULTIPLE JET NOZZLE
$2.17¢1 087
1
#12
13387-13F00
.RING
$11.59¢5 796
1
#13
13383-13F30
NEEDLE, JET (5C65-1)
$25.39¢12 696
1
#14
09494-00921
JET, NEEDLE (P-0M)
$46.18¢23 092
1
#15
13246-43010
.O RING
$4.76¢2 380
1
#16
13385-13F00
HOLDER, JET
$42.41¢21 206
1
#17
09491-24026
JET, MAIN (120)
$20.96¢10 482
1
#18
13370-04F00
VALVE ASSY, NEEDLE
$78.26¢39 129
1
#19
13602-05A10
.SCREW
$3.91¢1 955
1
#20
02112-0408A
.SCREW
$1.31¢655
1
#21
13250-04F00
.FLOAT ASSY
$38.11¢19 056
1
#22
13254-01010
.PIN, FLOAT
$4.08¢2 041
1
#23
13258-04F00
.GASKET
$10.86¢5 428
1
#24
13295-29900
.O RING
$4.76¢2 380
1
#25
13291-29900
.WASHER
$2.15¢1 075
1
#26
13268-48700
.SPRING
$4.76¢2 380
1
#27
13279-13F00
ADJUSTER (1 1/2)
$15.62¢7 809
1
#28
13281-05A00
.PLUG
$5.05¢2 524
1
#29
09492-17016
JET
$20.84¢10 419
1
#30
09492-87002
JET, MAIN (87.5)
$21.36¢10 678
1
#31
09491-52003
JET, MAIN (52.5)
$15.09¢7 544
1
#32
09493-24013
JET, PILOT AIR (120)
$20.38¢10 189
1
#33
13411-24D00
PLUNGER
$33.44¢16 721
1
#34
13417-07F00
SPRING
$7.92¢3 962
1
#35
13278-47090
.O RING
$2.27¢1 133
1
#36
13418-07F00
HOLDER, GUIDE
$17.65¢8 826
1
#37
13681-04010
.CAP
$5.40¢2 702
1
#38
13502-10F00
.COVER ASSY
$49.30¢24 650
1
#39
13271-13F00
SPRING
$5.67¢2 835
1
#39
09401-08410
CLIP
$2.25¢1 127
1
#40
13480-13F00
DIAPHRAGM ASSY
$25.50¢12 748
1
#41
13601-04148
.SCREW
$3.36¢1 679
1
#42
13267-13F00
ADJUST SCREW ASSY
$18.95¢9 476
1
#43
13285-07F00
PACKING
$3.71¢1 857
1
#44
13342-82370
SPRING
$9.64¢4 819
1
#45
02112-04107
.SCREW
$1.85¢926
1
#46
13247-02340
SCREW, DRAIN
$5.46¢2 731
1
#47
13247-33E00
.SCREW
$3.36¢1 679
1
#48
13686-13F00
HOSE
No Disponible
1
#49
13671-06A10
CLIP
No Disponible
1
#50
13686-13F10
HOSE
$24.67¢12 334
1
#51
13671-13F00
CLIP
$5.46¢2 731
1
#52
13683-20B00
HOSE
$25.76¢12 880
1
