TURN SIGNAL LAMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

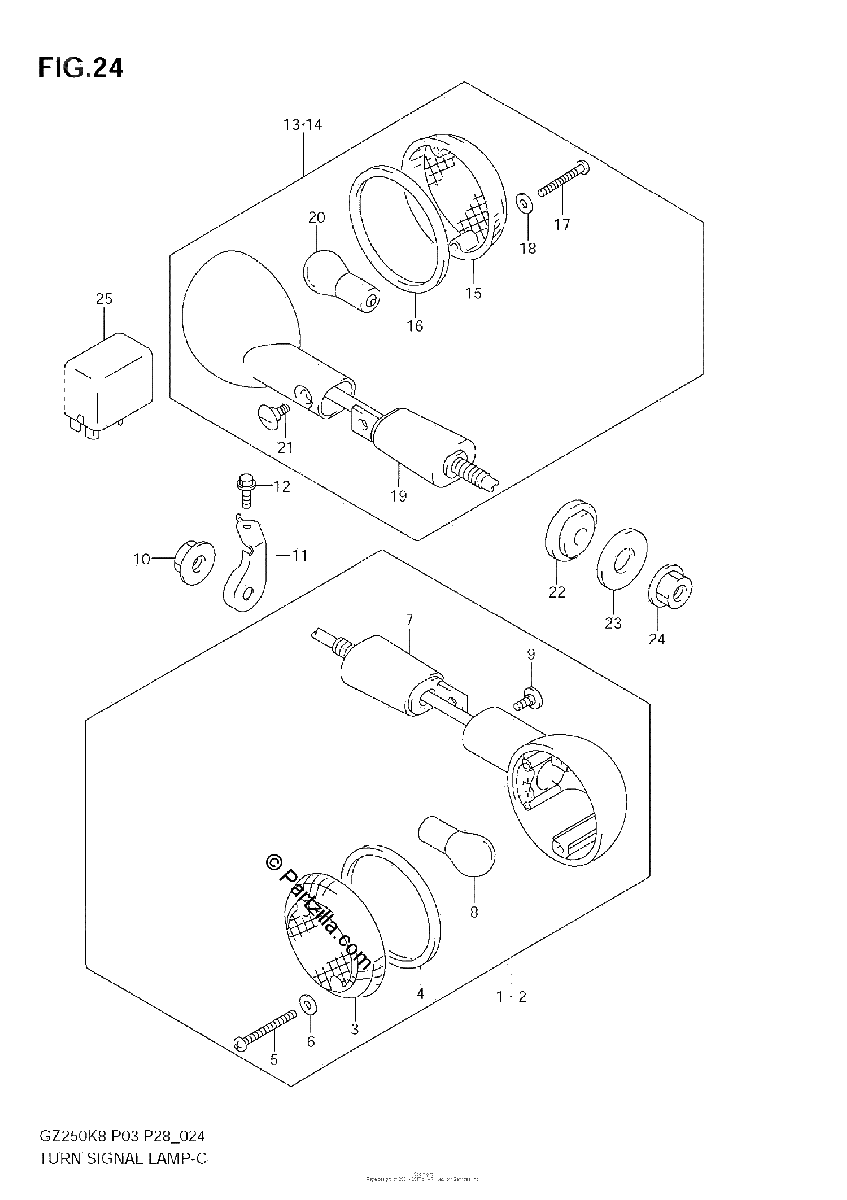

Diagrama de TURN SIGNAL LAMP

Repuestos

#1
35601-33DA0
LAMP ASSY, FRONT RH
$195.31¢97 656
1
#2
35602-33DA0
LAMP ASSY, FRONT LH
$195.31¢97 656
1
#3
35612-38A30
LENS
$24.16¢12 081
1
#4
35613-38A00
.GASKET
$13.15¢6 575
1
#5
03211-0425B
.SCREW
$3.56¢1 781
1
#6
35627-43010
.GASKET
$2.85¢1 425
1
#7
35619-45C10
STAY, TURNSIGNAL
$70.72¢35 363
1
#8
09471-12128
BULB (12V,21/5W)
$7.92¢3 963
1
#9
35623-38A01
SCREW
$6.19¢3 094
1
#10
08316-1010B
NUT
$3.45¢1 725
1
#11
35680-12F00
BRACKET, FR LH
$17.63¢8 813
1
#11
35670-12F00
BRACKET, FR RH
No Disponible
1
#12
D1557-0616B
BOLT
$0.39¢194
1
#13
35603-33DA0
LAMP ASSY, REAR TURN, R
$190.60¢95 300
1
#14
35604-33DA0
LAMP ASSY, REAR TURN, L
$190.60¢95 300
1
#15
35612-38A01
.LENS
$16.95¢8 475
1
#16
35613-38A00
.GASKET
$13.15¢6 575
1
#17
03211-0425B
.SCREW
$3.56¢1 781
1
#18
35627-43010
.GASKET
$2.85¢1 425
1
#19
35659-45C10
STAY, TURN SIGNAL
$43.46¢21 731
1
#20
09471-12045
.BULB (12V,21W) | FOR CLEAR
$3.85¢1 925
1
#21
35623-38A01
SCREW
$6.19¢3 094
1
#22
35695-17C00
SPACER, REAR TURNSIGNAL LAMP
$4.80¢2 400
1
#23
09160-10501
WASHER (10.5X30X2.3)
$3.04¢1 519
1
#24
08316-1010B
NUT
$3.45¢1 725
1
#25
38610-12FA0
RELAY ASSY, TURN SIGNAL
$140.56¢70 281
1
