CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

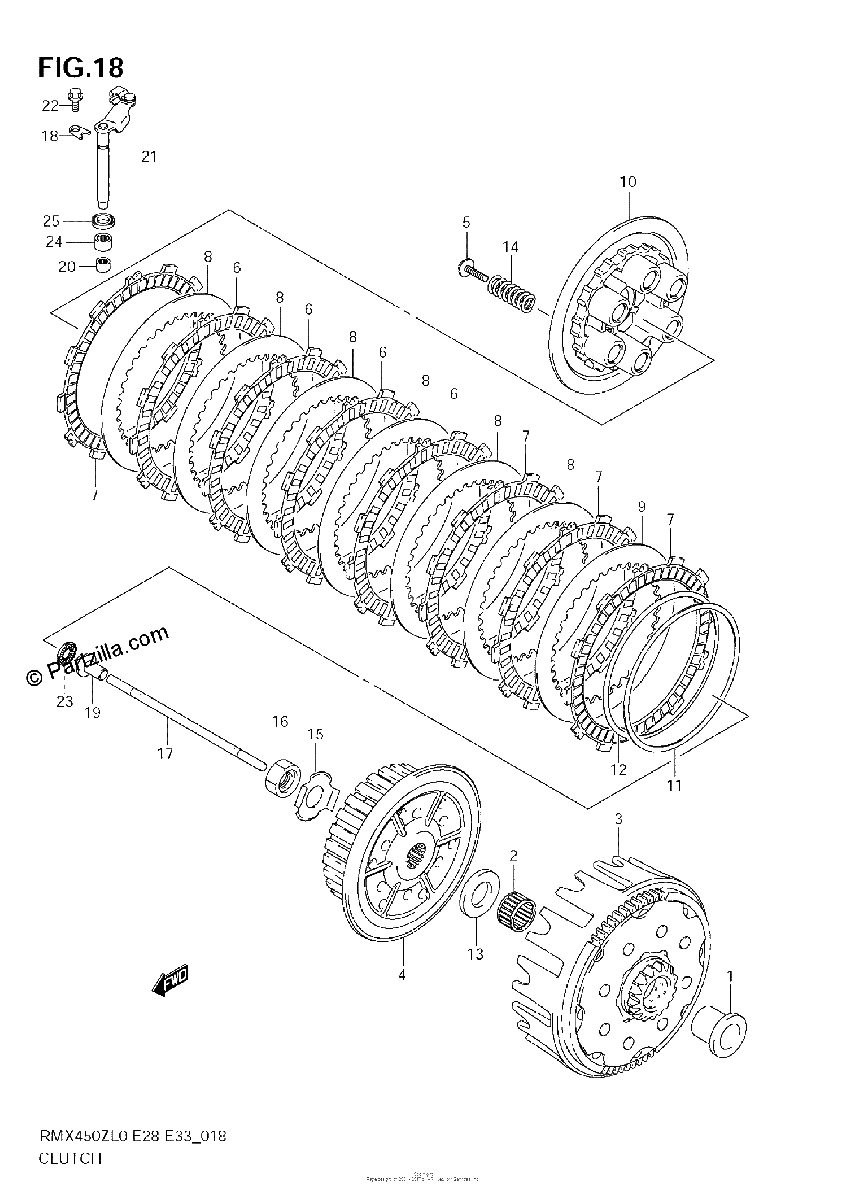

Diagrama de CLUTCH

Repuestos

#1
21251-28H00
SPACER, PRIMARY DRIVEN GEAR
$64.88¢32 441
1
#2
09263-28042
BEARING (28X32X26)
$35.67¢17 836
1
#3
21200-02J00
GEAR ASSY, PRIMARY DRIVEN *{NT:16/63}*
No Disponible
1
#4
21411-35G11
HUB, CLUTCH SLEEVE
$129.84¢64 918
1
#5
21412-35G00
BOLT, CLUTCH SPRING
$3.45¢1 725
1
#6
21441-02J00
PLATE, CLUTCH DRIVE NO.1 *{T:2.9}*
$38.43¢19 217
1
#7
21441-37F30
PLATE, CLUTCH DRIVE NO.2 | T:2.9
$15.27¢7 636
1
#8
21451-35G00
PLATE, CLUTCH DRIVEN (T:1.6) | T:1.6
$11.15¢5 577
1
#9
21452-35G00
PLATE, CLUTCH DRIVEN (T:1.6) | T:1.6
$15.39¢7 694
1
#10
21462-28H00
DISC, CLUTCH PRESSURE
$76.82¢38 410
1
#11
21471-28H00
SEAT, WAVE WASHER
$21.56¢10 781
1
#12
21472-35G00
WASHER, CLUTCH PLATE WAVE
$26.42¢13 208
1
#13
09160-22082
WASHER (22.5X39X3)
$17.22¢8 608
1
#14
09440-18044
SPRING
$4.47¢2 237
1
#15
21416-35G10
WASHER, CLUTCH SLEEVE HUB LOC
$5.17¢2 588
1
#16
09140-18017
NUT
$17.04¢8 522
1
#17
23110-28H00
ROD, CLUTCH PUSH
$30.97¢15 485
1
#18
23117-28H00
RETAINER, CL RELEASE CAMSHAFT
$5.69¢2 846
1
#19
23121-37F00
PIECE, CLUTCH PUSH
$22.80¢11 402
1
#20
23129-35G00
BEARING, CL RELEASE THRUST
$13.11¢6 555
1
#21
23200-02J00
CAMSHAFT, CLUTCH RELEASE
No Disponible
1
#22
09103-06280
BOLT (6X12)
$3.66¢1 829
1
#23
09263-10002
BEARING (10X22X2.8)
$11.02¢5 509
1
#24
09263-10014
BEARING (10X14X10)
$14.63¢7 314
1
#25
09285-10004
OIL SEAL (10X17X5)
$3.65¢1 823
1
